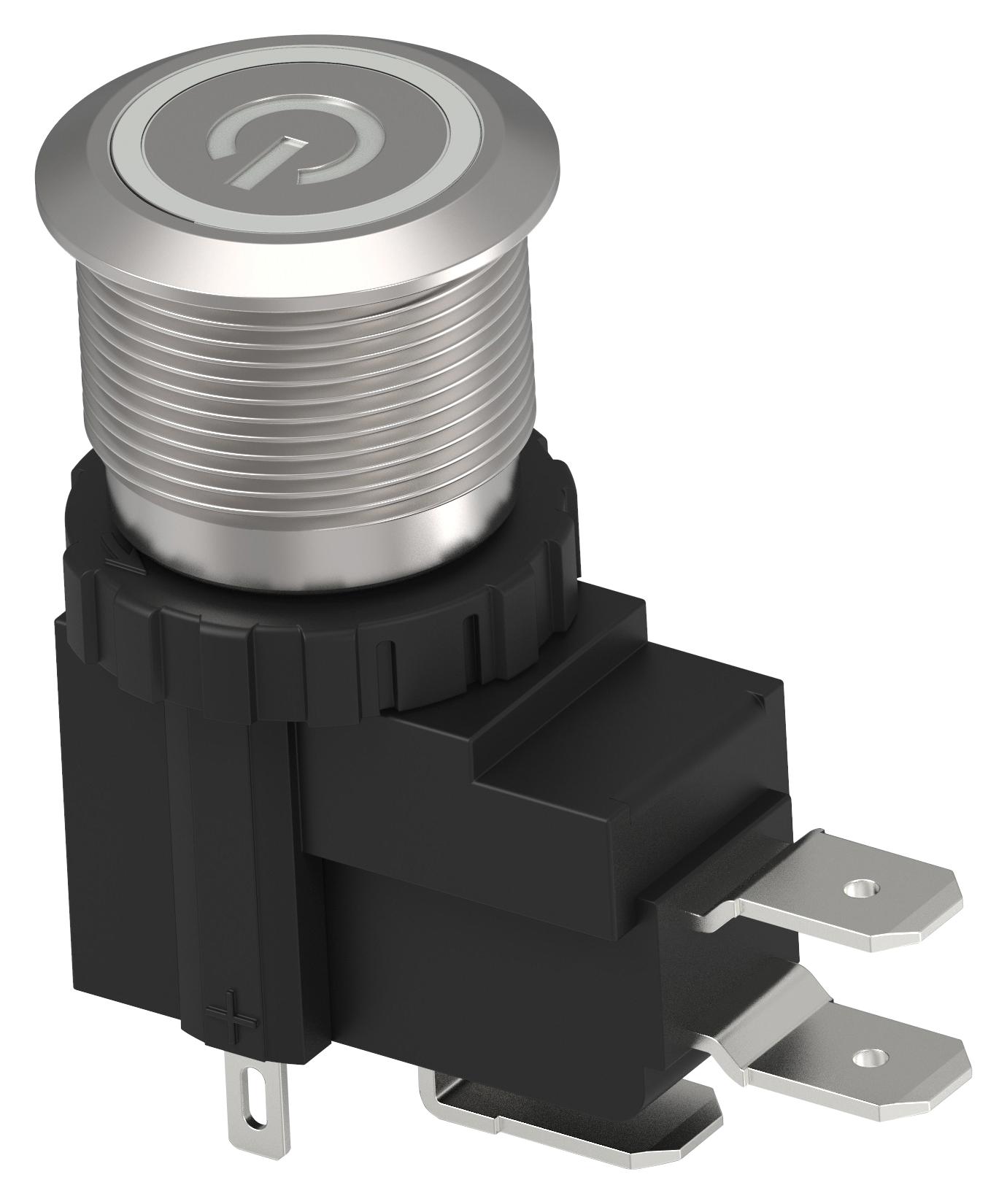

TE CONNECTIVITY AVH19LSFE16242604 High Current Vandal-Resistant Pushbutton
The AVH Series anti-vandal high current pushbutton switches are designed for demanding industrial applications, including machinery, automotive, electronics, and access control systems. Available in 19mm, 22mm, and 25mm bushings, these switches support high current ratings of 16A and 26A at 125/250VAC, with options for LED illumination, power symbols, and various actuator styles. They feature durable silicone sealing, resist temperatures from -25°C to 85°C, and are UL recognized. Their robust design ensures reliable operation in harsh environments, with a mechanical life expectancy of up to 1,000,000 cycles.
TE CONNECTIVITY AVH19LSFE16242604 High Current Vandal-Resistant Pushbutton Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Contact Rating: 16A and 26A at 125/250VAC
- Operating Temperature Range: -25°C to 85°C
- Sealing: Silicone
- Durability: Mechanical life up to 1,000,000 cycles
- Ingress Protection: P67, IKO8
- Panel Thickness: Maximum 10mm
- Panel Cut-out Diameter: 19.10mm (19mm), 22.20mm (22mm), 25.20mm (25mm)
- LED Light Types: Without LED, Power Symbol, Ring, Ring + Power
- Terminal Types: #187 (16A), #250 (26A)
- Actuation: Momentary and Locking
- Operation Force: 3.5+1.5N
- Travel: 3.2mm
- Compliance: UL Recognized
Buy the AVH Series – Reliable High Current Pushbutton Switches for Industrial Applications
Order AVH Series anti-vandal pushbutton switches online today to ensure reliable operation in harsh environments. These switches feature high current ratings, robust sealing for durability, multiple actuator and LED options, and compatible terminal types. Perfect for industrial machinery, automotive, electronics, and access control systems, their sealed silicone design, long mechanical lifespan, and UL recognition make them ideal for demanding applications. Purchase now to benefit from fast shipping and technical support, ensuring your projects are operational with high-quality, dependable switches.
Buy AVH Series anti-vandal high current pushbutton switches now and experience unmatched durability, high current ratings, LED options, and seal protection in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE16242604?
You can click on the BUY or RFQ button to purchase AVH19LSFE16242604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE16242604?
You can download the AVH19LSFE16242604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE16242604?
TE CONNECTIVITY
