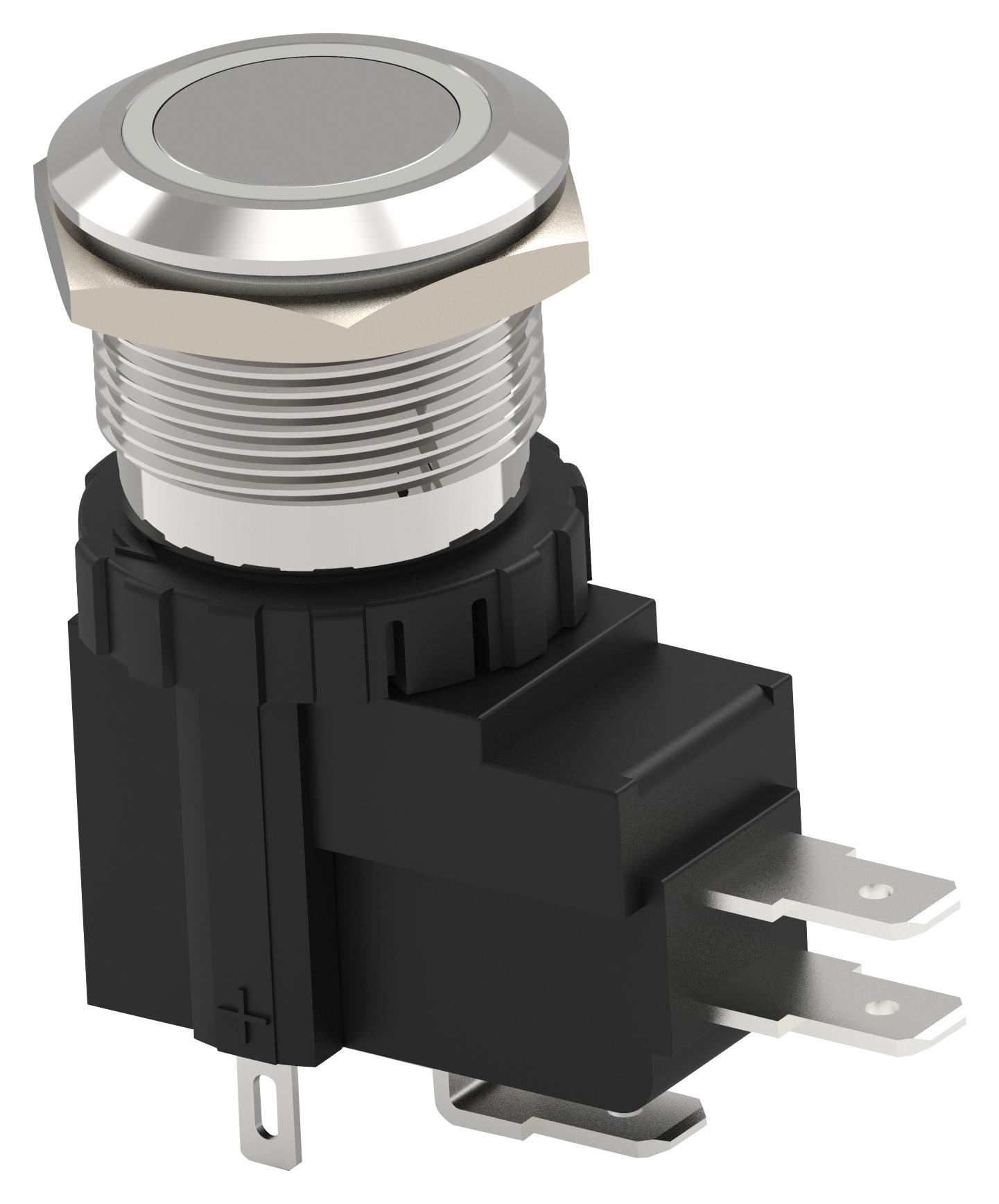

TE CONNECTIVITY AVH19LSFE6241604 High Current Pushbutton Switch
The AVH Series anti-vandal high current pushbutton switches are designed for industrial, automotive, and electronic applications. They feature a rugged, sealed silicone operation, offering high current ratings of 16A and 26A/125-250VAC, with options for LED illumination in multiple colors and lighting styles. Available in 19mm, 22mm, and 25mm bushings, they support momentary or locking actuation and are UL recognized. These durable switches provide reliable performance with mechanical life up to 1,000,000 cycles, suitable for strict access control and shipping equipment environments.
TE CONNECTIVITY AVH19LSFE6241604 High Current Pushbutton Switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Contact Ratings: 16A, 26A / 125-250VAC
- LED Light Types: Without LED, Power Symbol, Ring + Power Symbol, Illuminated options
- Switch Actuation: Momentary and Locking
- Operation Force: 3.5 ± 1.5N
- Travel: 3.2mm
- Ingress Protection: IP67
- Operating Temperature: -25°C to 85°C
- Panel Thickness: Max 10.0mm
- Panel Cut-out: 19.10mm, 22.20mm, 25.20mm diameter
- Electrical Life: 10,000 cycles to 1,000,000 cycles depending on type
- Terminal Types: 16 #187 terminal (16A), 26 #250 terminal (26A)
- Sealing: Silicone
- Dimensions: Bushings diameters 19mm, 22mm, 25mm, with respective panel cut-outs and lengths specified
- Standards: UL Recognized
Buy the TE Connectivity AVH19 – Reliable High Current Pushbutton Switches for Industrial Applications
Discover the reliable TE Connectivity high current pushbutton switches designed for industrial, automotive, and electronics sectors. Featuring rugged sealing, high current ratings up to 26A, and LED illumination options, these switches support momentary and locking actions. Available in 19mm, 22mm, and 25mm sizes, they are UL recognized, IP67 rated, and built for durability with up to 1,000,000 switching cycles. Perfect for access control, shipping, medical, and machinery applications, order online now for fast delivery and trusted quality.
Order your TE Connectivity AVH19 Series high current pushbutton switch today and ensure dependable operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE6241604?
You can click on the BUY or RFQ button to purchase AVH19LSFE6241604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE6241604?
You can download the AVH19LSFE6241604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE6241604?
TE CONNECTIVITY
