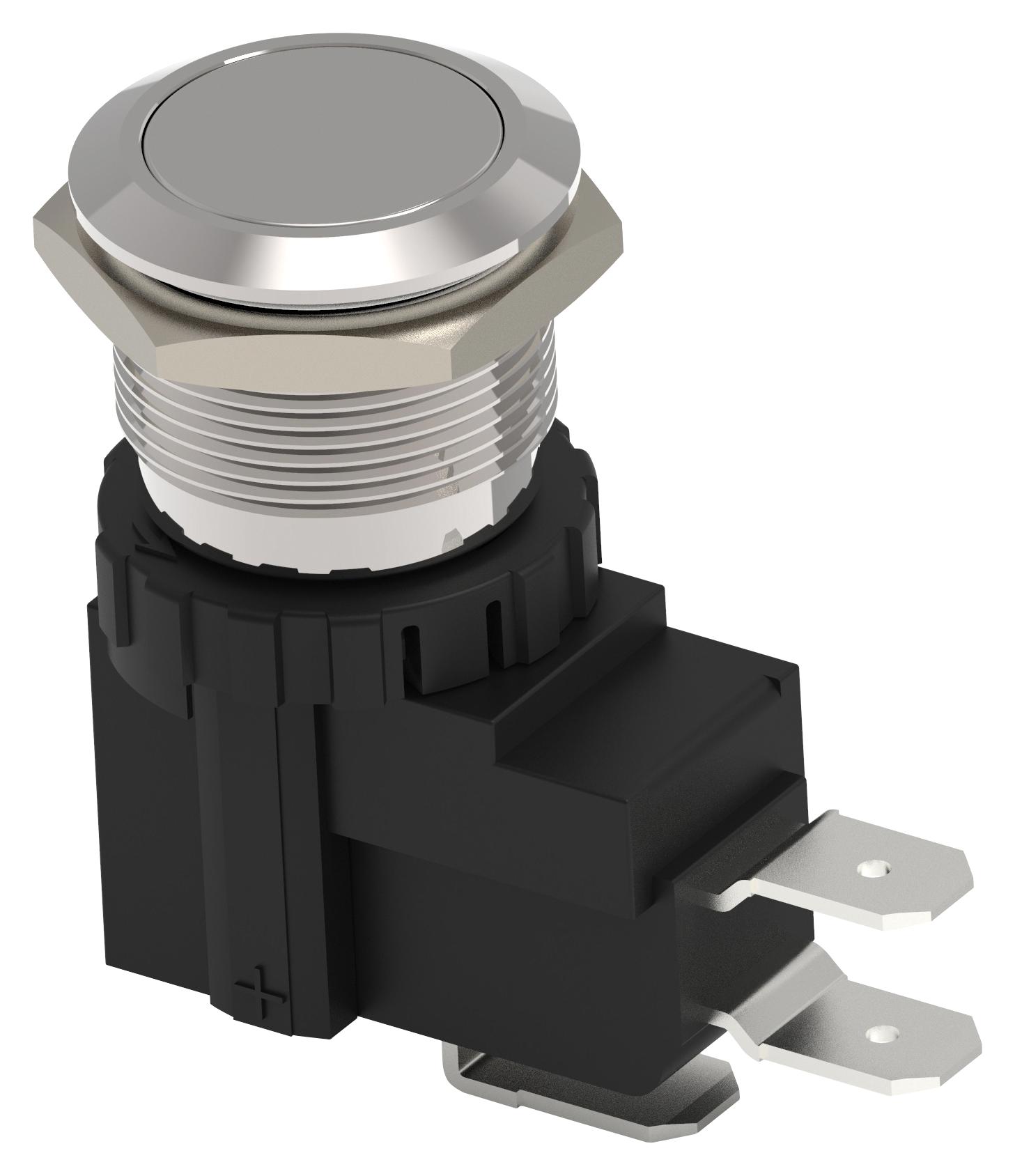

TE CONNECTIVITY AVH19LSFO002604 High Current Vandal Switch
The AVH Series anti-vandal high current pushbutton switches are designed for high power applications in machinery, automotive, electronics, and security systems. Available in 19mm, 22mm, and 25mm diameters, these switches feature contact ratings of 16A and 26A at 125/250VAC, with LED options for visual indication and various actuation types including momentary and locking. Sealed with silicone to meet ingress protection standards (IP67), they offer high mechanical durability with a lifespan of up to 1,000,000 cycles. Suitable for panel thicknesses up to 10mm, their robust construction makes them ideal for demanding industrial environments.
TE CONNECTIVITY AVH19LSFO002604 High Current Vandal Switch Specifications:
- Contact Ratings: 16A, 26A at 125VAC and 250VAC
- Bushing Sizes: 19mm, 22mm, 25mm
- Panel Thickness: Up to 10mm
- Sealing: Silicone for ingress protection (IP67]
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 10,000 cycles at rated specifications
- Operating Temperature Range: -25°C to 85°C
- Activation Force: 3.5+1.5N
- Travel Distance: 3.2mm
- Ingress Protection: IP67
- LED Voltages and Colors: Various options, including white, red, yellow, with illumination features
- Terminal Types: #187 (16A), #250 (26A)
Buy the Buy Anti-Vandal High Current Pushbutton Switch Part Number AVH19LSFO002604 Online
Purchase the high current vandal-resistant pushbutton switch online today. Designed for demanding industrial, automotive, and security applications, it offers high durability, sealing IP67, and ratings up to 26A. Available in multiple sizes with LED indicator options, its robust construction ensures long-lasting operation in harsh environments. Ideal for machinery, electronics, and control systems, this switch provides reliable performance with a lifespan of over one million cycles. Order now to ensure your projects benefit from premium quality and dependable operation.
Get AVH19LSFO002604 today—robust high current anti-vandal pushbutton switch with IP67 sealing for demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFO002604?
You can click on the BUY or RFQ button to purchase AVH19LSFO002604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFO002604?
You can download the AVH19LSFO002604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFO002604?
TE CONNECTIVITY
