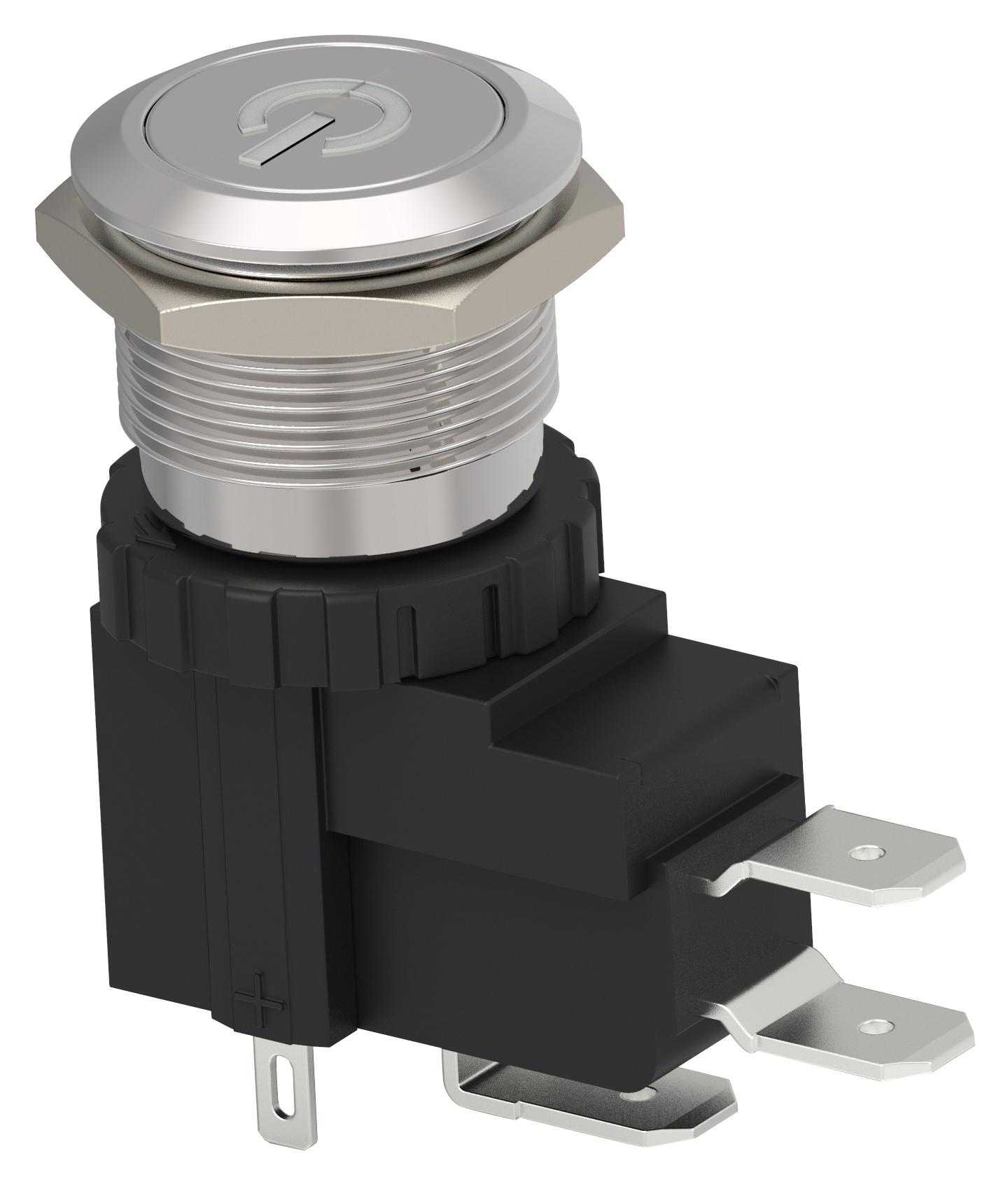

TE CONNECTIVITY AVH19LSFP6242604 Anti-Vandal Pushbutton Switch
The AVH Series anti-vandal high current pushbutton switches are designed for demanding applications including machinery, automotive, electronics, access control, shipping, medical, horticulture, and accessories. Available in 19mm, 22mm, and 25mm bushing sizes, these switches support high current ratings of 16A and 26A at 125/250VAC, with contact resistance of 50mΩ max. Featuring LED options, silicone sealing, and rugged construction, they offer a mechanical life of up to 1,000,000 cycles, ideal for harsh environments. The switches are UL recognized, resistant to dust and water ingress, with multiple actuator and terminal configurations for versatile installation and operation.
TE CONNECTIVITY AVH19LSFP6242604 Anti-Vandal Pushbutton Switch Specifications:
- Bushings: 19mm, 22mm, 25mm sizes
- Contact Rating: 16A, 26A at 125/250VAC
- Contact Resistance: Max 50mΩ
- Mechanical Life: Up to 1,000,000 cycles
- Electrical Life: 10,000 cycles at 16A
- Sealing: Silicone ingress protection (P67, IP68)
- Operating Temperature Range: -25°C to 85°C
- Dimensions: 19mm bushing - panel cut-out approximately 19.10mm, 22mm - 22.20mm, 25mm - 25.20mm
- Panel Thickness: Max 10.0mm
- LED Options: Without LED, Power Symbol, Ring, or Ring + Power Symbol
- Terminal Types: 16A #187, 26A #250
- Actuation: Momentary/Locking, 3.5+1.5N force, 3.2mm travel
- Ingress Protection: P67, IP68
- Standards: UL Recognized
Buy the TE Series AVH High Current Pushbutton Switches: AVH19LSFP6242604
Discover the reliable and durable TE AVH Series anti-vandal high current pushbutton switches available online. Designed for demanding environments, these switches feature high current ratings of up to 26A at 125/250VAC, silicone sealing for ingress protection, and multiple actuator options including LED illumination. Perfect for machinery, automotive, electronics, and access control, they offer up to 1,000,000 cycles of mechanical life. Purchase now to ensure your equipment’s safety, performance, and long-lasting reliability with easy online ordering and fast delivery.
Get TE AVH19LSFP6242604 today—built for precision, durability, and high current applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFP6242604?
You can click on the BUY or RFQ button to purchase AVH19LSFP6242604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFP6242604?
You can download the AVH19LSFP6242604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFP6242604?
TE CONNECTIVITY
