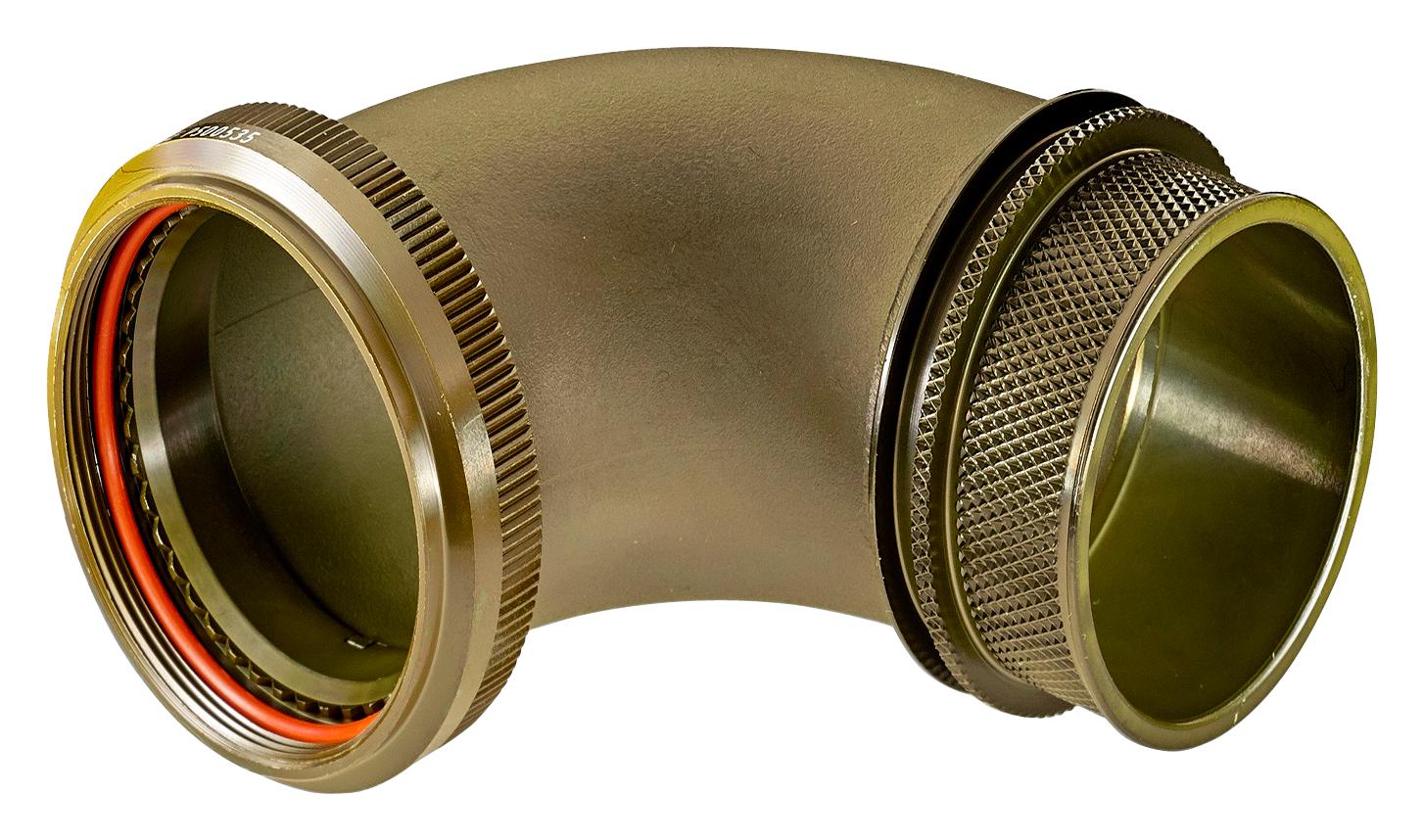

TE CONNECTIVITY BTH315101BSE Swept Elbow Backshell
The BTH3 series swept elbow backshell with band termination features a smooth internal bore and continuous bend radius, providing a secure, streamlined cable connection for optical and standard cables. Made from lightweight aluminum alloy with cadmium olive drab over electroless nickel plating, these backshells meet AS85049 category 3B sealing standards. They allow quick, simple termination, include a spin coupling nut for easy repairs, and offer strain relief and cable support to prevent bending or overflexing. They provide 360-degree EMI and RFI shielding, ideal for defense, military, and aerospace applications. Delivery times may vary due to high demand.
TE CONNECTIVITY BTH315101BSE Swept Elbow Backshell Specifications:
- Material: Aluminum alloy with cadmium olive drab over electroless nickel plating
- Application: Cable shielding, strain relief, EMI/RFI protection
- Design: Swept elbow, 90-degree bend, smooth internal bore, continuous bend radius
- Entry Sizes: M12 x 1.0, M15 x 1.0, M18 x 1.0, M22 x 1.0, M25 x 1.0, M28 x 1.0, M31 x 1.0, M34 x 1.0, M37 x 1.0
- Shell Material: Aluminum alloy, Finish: Cadmium olive drab over electroless nickel or electroless nickel
- Sealing Standard: Meets AS85049 category 3B
- Features: Spin coupling nut for easy repairs, strain relief for cable support, 360-degree EMI/RFI shielding
- Weight: Approximately 30-40 grams depending on size
- Dimensions: Length varies according to entry size, typical maximum entry diameter up to 37 mm
- Tolerance: Linear 30.25 mm, Angular tolerances as specified
Buy the TE Connectivity BTH315101BSE – Reliable Swept Elbow Backshell for Industrial Applications
Order the TE Connectivity swept elbow backshell online today—crafted from lightweight aluminum alloy with premium plating to ensure durability and EMI/RFI shielding. Designed for quick, secure termination with a spin coupling nut, it provides strain relief and cable support, making maintenance easy. Suitable for defense, aerospace, and military applications where reliability and protection are critical. Our easy purchase process guarantees fast delivery, ensuring your installation is efficient and meets high standards. Choose quality, performance, and ease of installation with this dependable backshell.
Get TE Connectivity BTH315101BSE today—built for precision and long-lasting durability in cable shielding and industrial wiring systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY BTH315101BSE?
You can click on the BUY or RFQ button to purchase BTH315101BSE from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part BTH315101BSE?
You can download the BTH315101BSE datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of BTH315101BSE?
TE CONNECTIVITY
