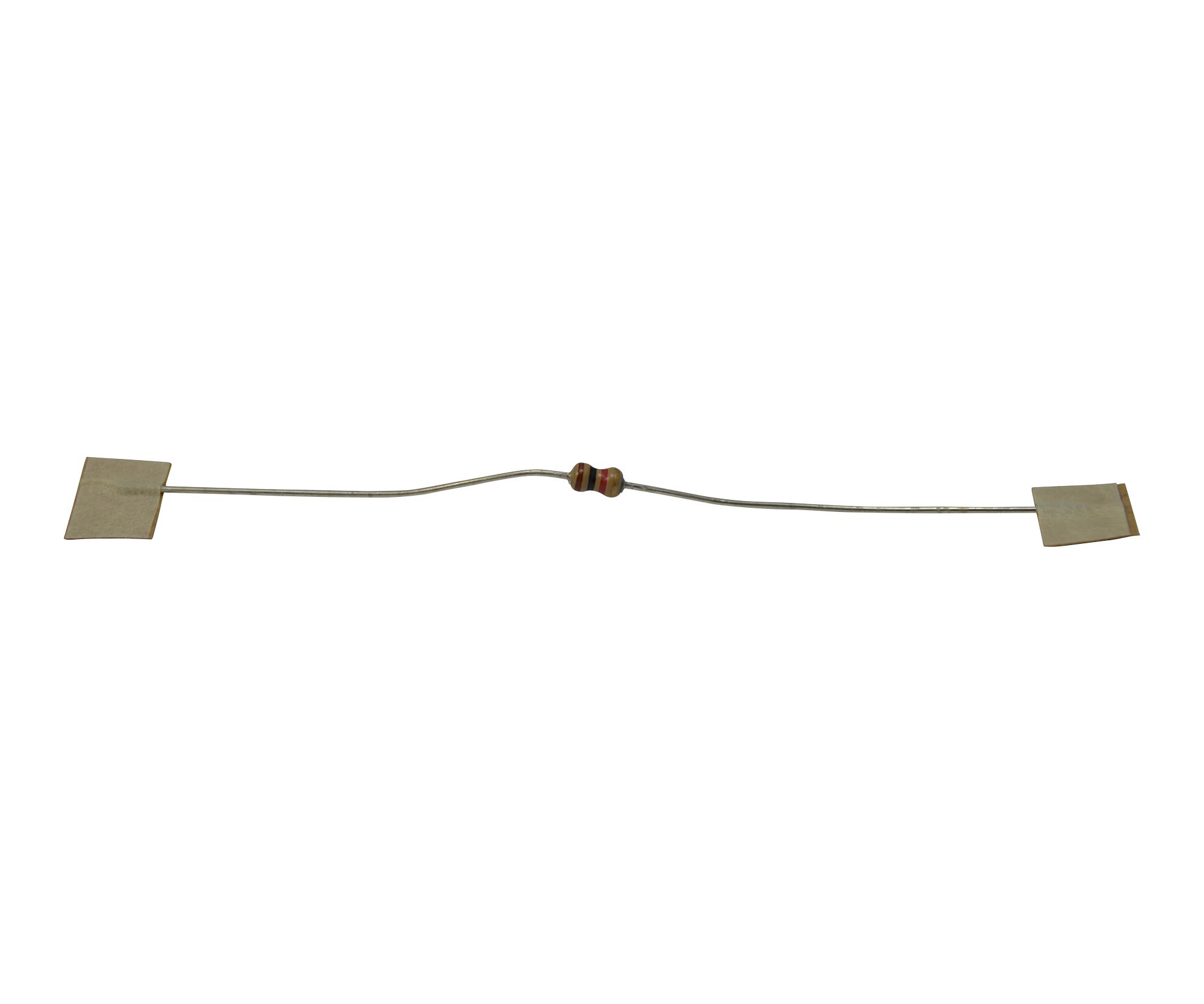

TE CONNECTIVITY CFR16J220K Carbon Film Resistor
The TE CONNECTIVITY CFR16J220K is a carbon film resistor designed for versatility and cost-effectiveness. Its ceramic core with a high alumina content provides excellent power-to-size ratios. The resistive element is a thin film of carbon deposited on a ceramic core, ensuring consistent performance. These resistors are ideal for use in audio equipment, communication systems, measurement devices, and computer applications, offering a reliable solution for various circuit designs.
TE CONNECTIVITY CFR16J220K Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Temp. Coefficient (ppm/°C): 0 to -450
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Length (L*) max (mm): 3.5
- Diameter (D) max (mm): 1.85
- d ±0.05 (mm): 0.45
- I (mm): 28 ± 3
- Marking: Four color band code
Buy the CFR16J220K TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J220K Carbon Film Resistor securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J220K?
You can click on the BUY or RFQ button to purchase CFR16J220K from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J220K?
You can download the CFR16J220K datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J220K?
TE CONNECTIVITY
