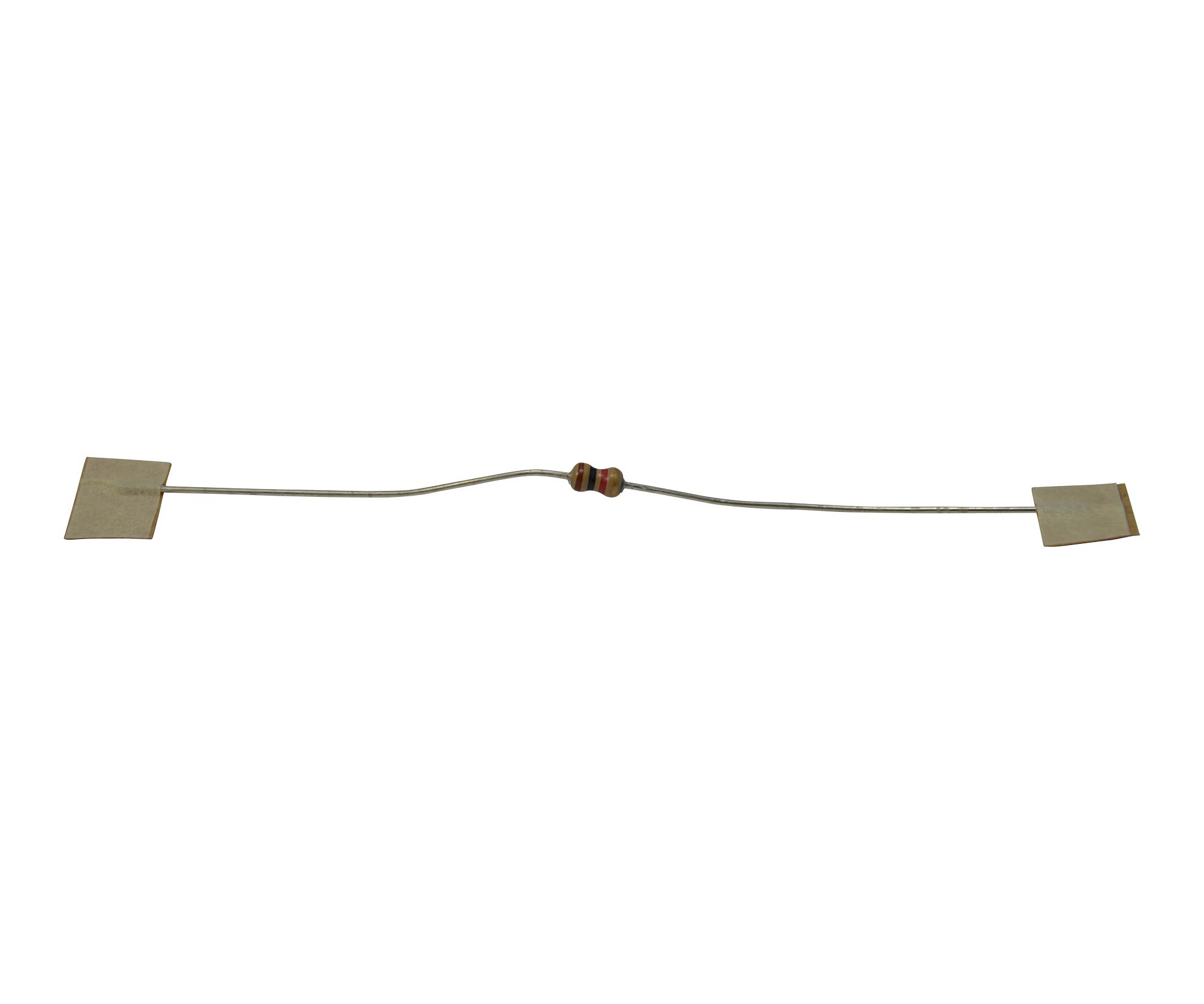

TE CONNECTIVITY CFR16J220R Carbon Film Resistor
The TE CONNECTIVITY CFR16J220R is a carbon film resistor designed for versatility and cost-effectiveness. It utilizes a thin film of carbon deposited on a high thermal conductivity ceramic core, ensuring efficient heat dissipation. The resistor's construction, including metal end caps and tinned copper lead wires, contributes to its durability and suitability for various industrial applications. It is commonly used in audio equipment, communication systems, measurement devices, and computer circuits where a balance of performance and affordability is required.
TE CONNECTIVITY CFR16J220R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Length (L*) max (mm): 3.5
- Diameter (D) max (mm): 1.85
- d ±0.05 (mm): 0.45
- I (mm): 28 ± 3
Buy the CFR16J220R TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J220R Carbon Film Resistor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J220R?
You can click on the BUY or RFQ button to purchase CFR16J220R from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J220R?
You can download the CFR16J220R datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J220R?
TE CONNECTIVITY
