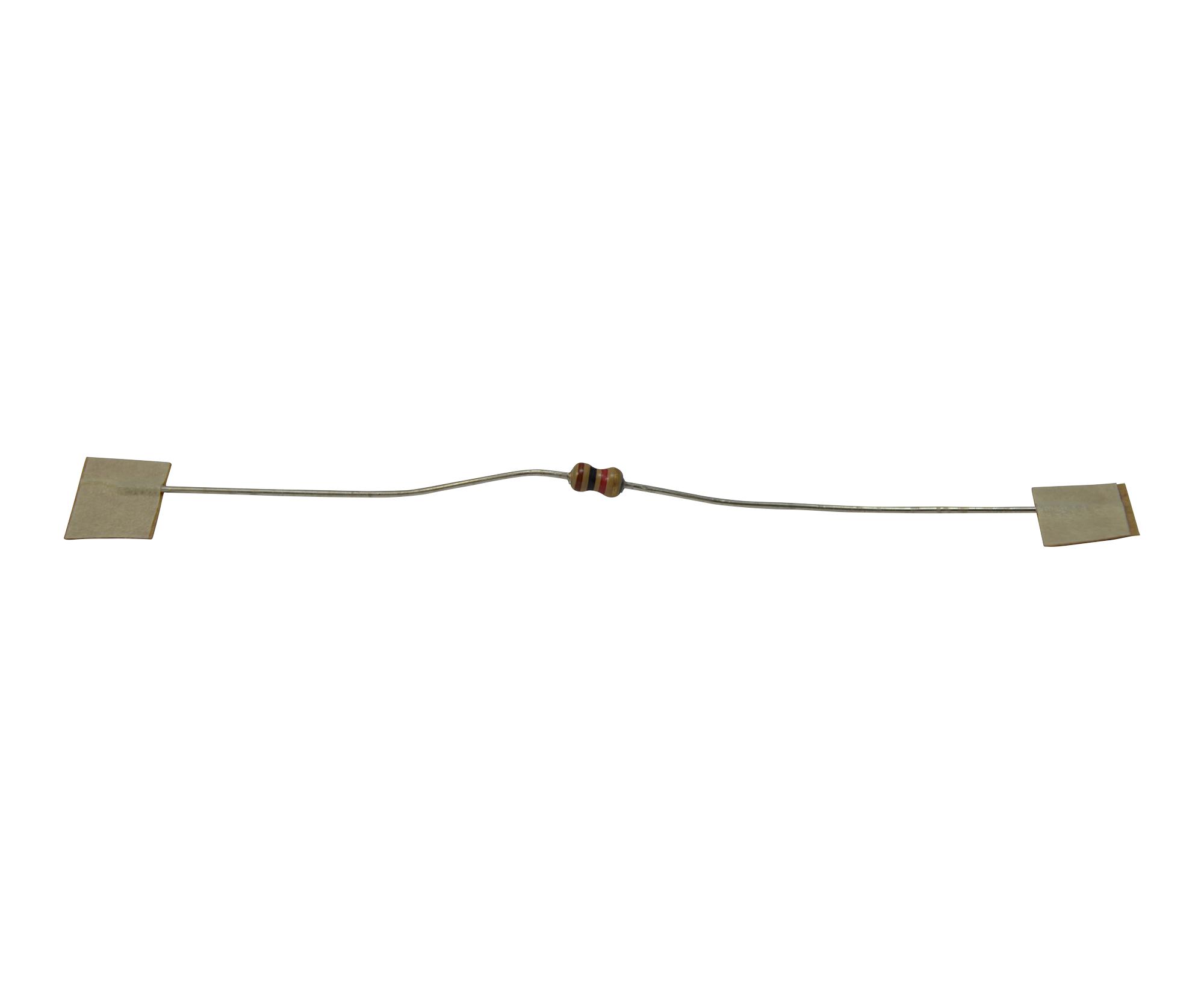

TE CONNECTIVITY CFR16J33R Carbon Film Resistor
TE CONNECTIVITY's CFR16J33R is a carbon film fixed resistor designed for versatility and cost-effectiveness. Featuring a ceramic core with a high alumina content, it delivers excellent power-to-size ratios. The resistive element is a thin film of carbon deposited onto the core, ensuring consistent performance. These resistors are widely used in audio equipment, communication systems, measurement devices, and computer applications due to their reliability and affordability. They are available in various sizes and resistance ranges to meet diverse circuit requirements.
TE CONNECTIVITY CFR16J33R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
Buy the CFR16J33R TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J33R Carbon Film Resistor securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J33R?
You can click on the BUY or RFQ button to purchase CFR16J33R from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J33R?
You can download the CFR16J33R datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J33R?
TE CONNECTIVITY
