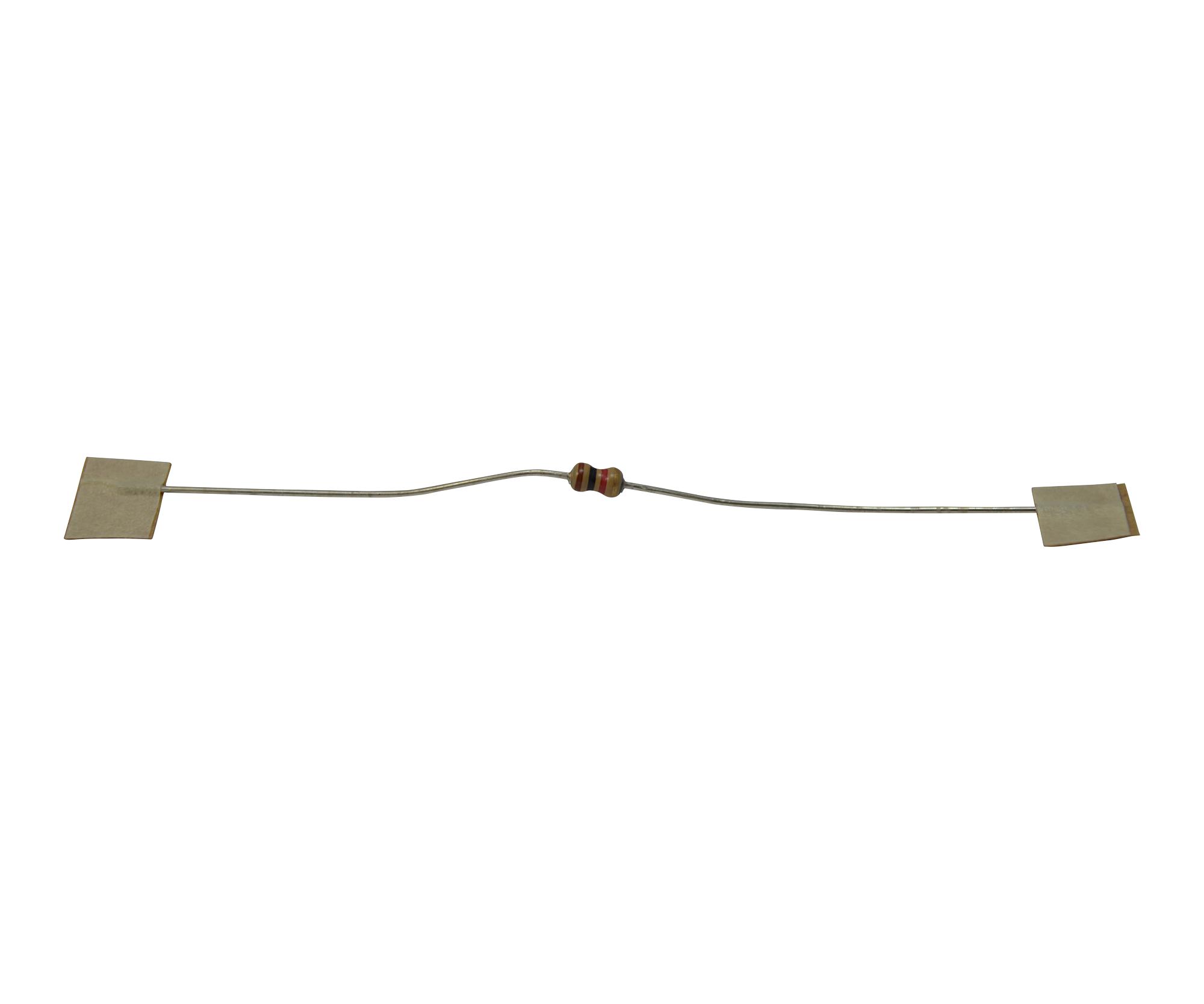

TE CONNECTIVITY CFR16J68R Carbon Film Resistor
The TE CONNECTIVITY CFR16J68R is a carbon film fixed resistor designed for versatile applications. Its construction features a thin film of carbon deposited on a ceramic core, ensuring high thermal conductivity and power-to-size ratios. These resistors are ideal for use in audio, communications, measurement, and computer circuits due to their combination of low cost and high reliability. They are available in various power ratings and resistance ranges, making them suitable for a broad spectrum of electronic designs. The CFR series is marked with a four-color band code and is designed for automatic insertion equipment.
TE CONNECTIVITY CFR16J68R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Max Overload Voltage: 2.5 times rated voltage up to specified voltage for 5 seconds
- Max Intermittent Overload Voltage: 4 times rated voltage up to specified voltage for 1 second ON and 25 seconds OFF
- Marking: Four color band code
