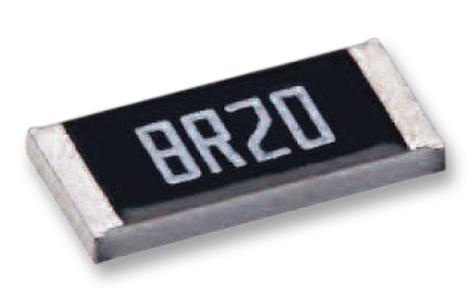

TE CONNECTIVITY CPF0402B2K0E1 Precision Resistor
The CPF series comprises high stability thin film precision resistors suitable for applications demanding close accuracy and stability. Available in sizes from 0201 to 2512, these resistors feature TCRs down to 15ppm/°C and resistance tolerances to 0.05%. They are ideal for communications, industrial controls, instrumentation, and medical devices. These resistors have electroplated matte tin terminal finishes, rated power from 0.03125W to 0.5W, resistance ranges up to 3GΩ, and operate within -55°C to +155°C. Designed for reliability and precision, they meet various industry standards and are compatible with automated placement processes.
TE CONNECTIVITY CPF0402B2K0E1 Precision Resistor Specifications:
- Chip Sizes: 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @70°C: 0.03125W to 0.5W depending on size
- Resistance Range: Up to 3GΩ depending on size
- Tolerance: 0.05%, 1%, or 2% as per series
- TCR: down to 15ppm/°C in certain series
- Operating Voltage: 15V to 150V depending on size
- Max Overload Voltage: 30V to 300V depending on size
- Operating Temp Range: -55°C to +155°C
- Insulation Resistance: >1000MQ
- Stability: 0.5%
- Terminal Finish: Electroplated 100% matte Sn
- Dimensions vary per size, e.g., 0201 (L: 0.58mm, W: 0.29mm), 2512 (L: 6.30mm, W: 2.20mm)
- Construction: Alumina substrate with NiCr resistor layer, Ag electrodes, epoxy overcoat
- Packaging: Reels with quantities up to 10,000 units, suitable for automatic placement
- Standards: Meets industry and MIL-STD testing for reliability and stability
Buy the TE CPF0402B – Reliable Precision Resistor for Industrial Applications
Enhance your projects with TE's precision resistors from the CPF series, designed for accuracy, stability, and high reliability in industrial, communication, and medical applications. Available in various sizes, these resistors feature low TCRs down to 15ppm/°C and tight resistance tolerances of 0.05%. They are suitable for automated assembly, ensuring consistent performance across applications requiring stable and precise resistance values. Purchase online today to benefit from fast delivery and exceptional quality tailored to demanding electronics environments.
Buy TE CPF0402B now and experience unmatched reliability and precise resistance for your critical electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CPF0402B2K0E1?
You can click on the BUY or RFQ button to purchase CPF0402B2K0E1 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CPF0402B2K0E1?
You can download the CPF0402B2K0E1 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CPF0402B2K0E1?
TE CONNECTIVITY
