TE CONNECTIVITY DMCM9901AN DMC-M Series Connectors
The Deutsch DMC-M series are modular, lightweight aerospace connectors designed for high-reliability applications. They feature multi-cavity configurations per EN4165 standards, with options for aluminum or composite shells, gold or nickel plating, and various keying options to prevent misalignment. These connectors support high-density signals, fiber optics, and hybrid modules, offering durability for up to 500 mating cycles and operating temperatures from -55°C to +175°C. They are ideal for aerospace, defense, and marine environments, ensuring robust and flexible connectivity with EMI shielding and environmental resistance.
TE CONNECTIVITY DMCM9901AN DMC-M Series Connectors Specifications:
- Shell Material: Aluminum alloy or composite, with electroless nickel or olive drab cadmium finish
- Operating Temperature: -55°C to +175°C
- Durability: 500 mating cycles
- Module Retention: > 25.4 daN (571 Ib.)
- Contact Retention: Size 24: 2.7 daN; Size 08: 15.6 daN
- Electrically withstand voltage at sea level: 1300 V rms (modules 24, 23, 22); 1500 V rms (modules 20, 16, 12, 08)
- Insulation Resistance: 25000 MΩ (sea level), 21000 MΩ (altitude)
- Contact Current Rating: Size 24: 3 A; Size 20: 75 A; Size 08: up to 90 A
- Salt Spray Resistance: Aluminum cadmium finish: 500 hours, nickel finish: 96 hours
- Sealing Options: Sealed and unsealed versions available with optional gaskets
- Supports fiber optic, hybrid, and electrical contacts, with various keying and mounting options

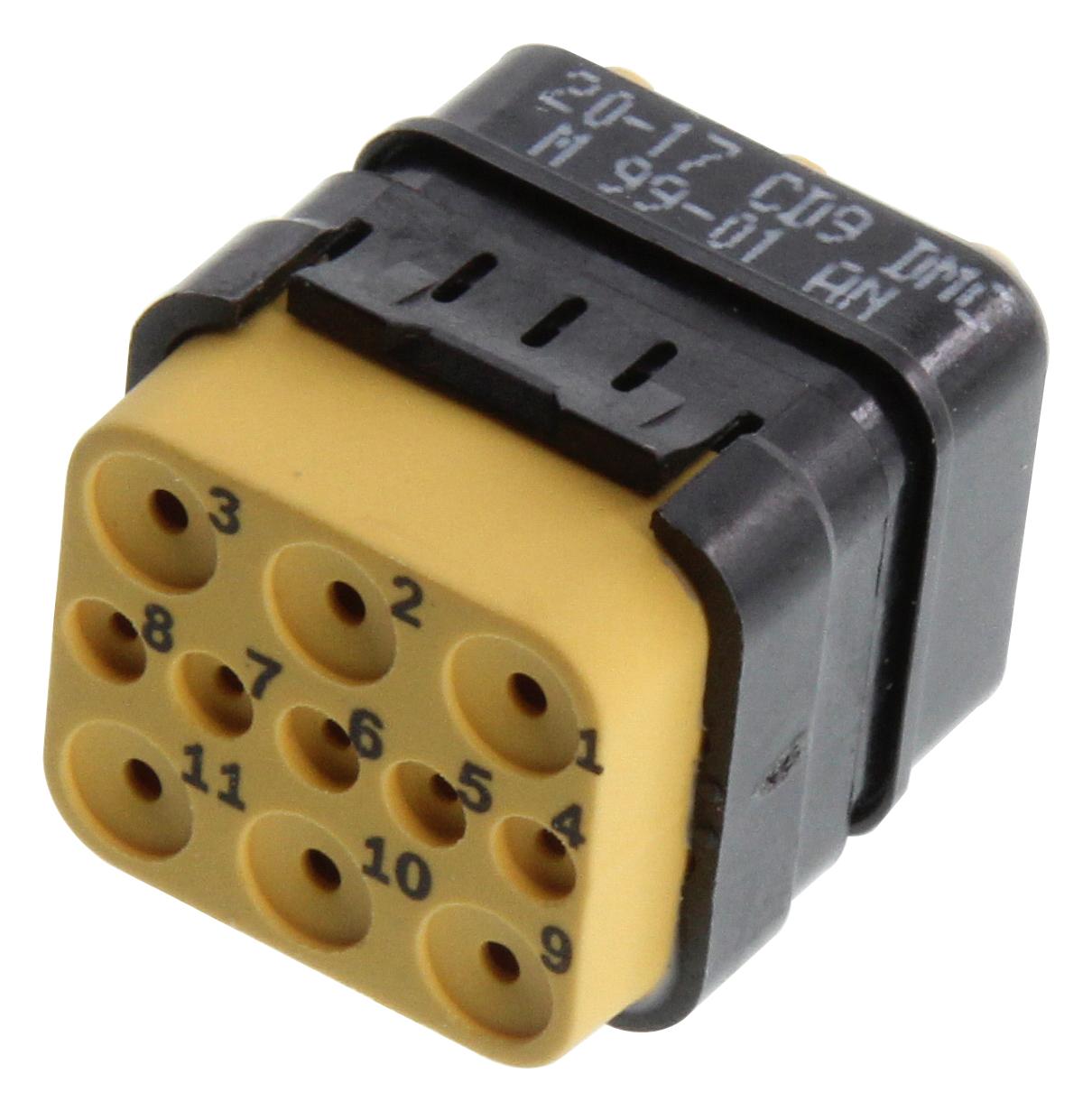

Buy the Deutsch Series DMC-M Multicavity Connectors: DMCM9901AN
Order Deutsch DMC-M9901AN connectors online and experience their modular, high-density, and durable construction tailored for aerospace, defense, and marine applications. These connectors support fiber optics, hybrid modules, and high-current contacts, ensuring reliable performance in harsh environments. Featuring lightweight aluminum or composite shells with EMI shielding, they provide flexible configurations for rack, panel, and wire-to-wire assemblies. With easy installation, sealed options, and keying features to prevent mismating, these connectors are ideal for critical aerospace and defense systems. Buy now for robust, space-saving connection solutions.
Get Deutsch DMC-M9901AN today—built for high-reliability aerospace, defense, and marine connectivity with modular, corrosion-resistant design.
