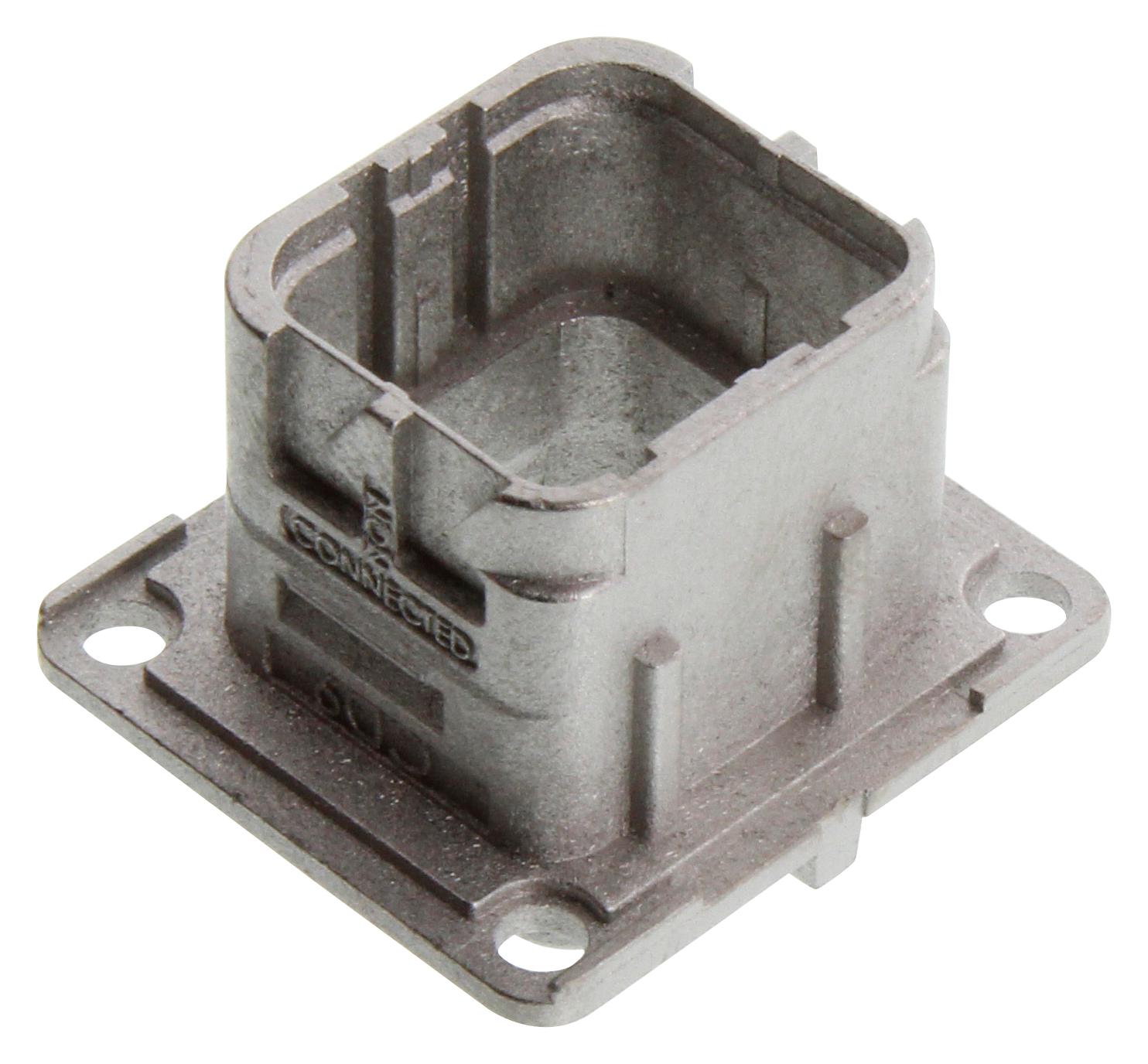

TE CONNECTIVITY DMCMD24B Modular Aircraft Connector
The Deutsch DMC-MD series connectors are modular, lightweight, and reliable solutions designed for aircraft in-flight entertainment and cabin systems. Standardized in EN4165, ARINC 809, and BACC65, they offer flexible configurations, easy installation, and robust environmental performance. Made from durable composite housings and thermoplastic modules, these connectors support high current ratings, EMI shielding, and vibration resistance, making them ideal for aerospace, defense, and marine applications. They feature multiple keying options and indexable backshells for maximum design flexibility and efficient cable management.
TE CONNECTIVITY DMCMD24B Modular Aircraft Connector Specifications:
- Housing: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- PCB Contacts: Copper alloy, plated gold over nickel, with lead or ROHS tinning option
- Temperature Range: -55°C to +175°C
- Vibration: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Pin Sizes: 8-24, 12-20, 16-22 contacts
- Contact Ratings: Up to 46 A depending on size
- EMI Shielding Attenuation: Up to 50 dB at 100 MHz
- Weight (receptacles): Approx. 0.013 - 0.020 lbs
- Panel Mounting: Cutout dimensions based on connector size, with multiple keying options
- Environmental: Salt spray, vibration, temperature tolerance
Buy the Deutsch DMC–Reliable Aerospace Connectors for Industrial Applications
Purchase Deutsch DMC-MD modular connectors today and benefit from top-tier reliability, lightweight design, and versatile configurations. These connectors meet aerospace standards like EN4165, ARINC 809, and BACC65, ensuring optimal performance in demanding environments. Easy to install and highly durable, they support high current ratings and EMI shielding for critical aircraft and defense systems. Experience seamless cable management with multiple keying options and indexable backshells. Secure your aerospace applications with trusted, high-quality connectivity solutions available online for fast delivery.
Buy Deutsch DMC-MD connectors now and ensure durable, reliable, and lightweight connections for aerospace, defense, and marine systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCMD24B?
You can click on the BUY or RFQ button to purchase DMCMD24B from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCMD24B?
You can download the DMCMD24B datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCMD24B?
TE CONNECTIVITY
