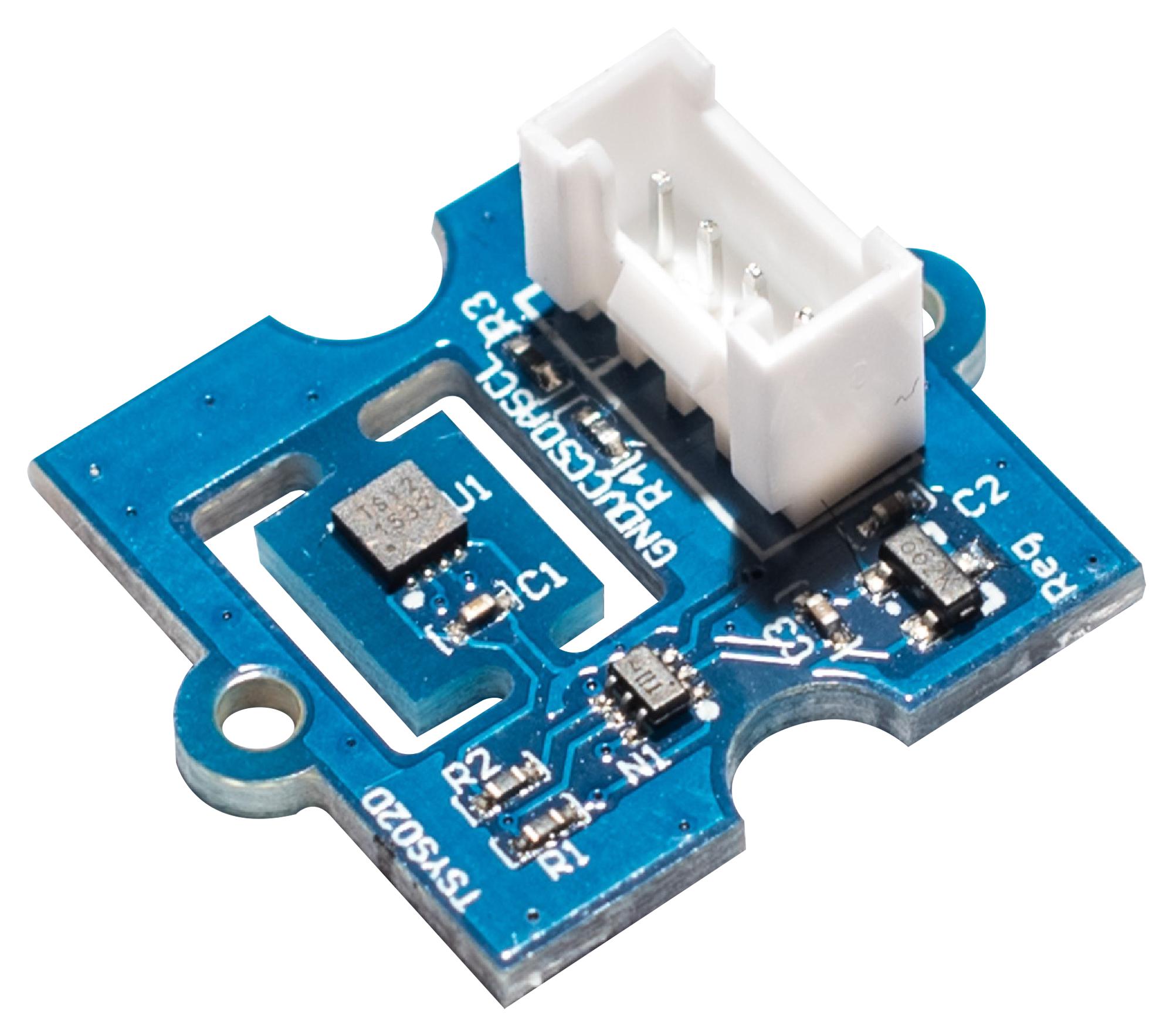

TE CONNECTIVITY DPP202G000 Digital Temperature Sensor
The DPP202G000 from Sensor Solutions by TE Connectivity is a Grove-compatible digital temperature sensor module featuring the TSYS02D sensor. It provides an easy interface for temperature measurement across a range of -40°C to 125°C, with low power consumption and precise calibration. The module operates at 5V supply voltage, includes a 4-pin connector, and offers high-resolution readings at 16 or 24 bits. Suitable for embedded design and development applications, it incorporates onboard parameters and has a compact size of 20.6mm x 20.6mm. Its features include a low-power standby mode, a typical response time of 43ms, and a temperature accuracy of up to 0.2°C within certain ranges.
TE CONNECTIVITY DPP202G000 Digital Temperature Sensor Specifications:
- Temperature Range: -40°C to 125°C
- Supply Voltage: 5V
- Resolution: 16 or 24 bits
- Response Time: 43ms typical
- Calibration: Fully calibrated during manufacture
- Power Consumption: Very low, includes standby mode
- Connector: 4-pin Grove compatible
- Dimensions: 20.6mm x 20.6mm
- Communication: I2C interface, 2-wire protocol
- Accuracy: ±0.2°C from -5°C to 50°C, ±0.5°C from -20°C to 100°C, ±1°C from -40°C to 125°C
- Parameters: Stored on-chip for consistent readings
- Features: Quick response, on-chip parameters, onboard calibration
Buy the Buy TE Connectivity Digital Temperature Sensor Part Number DPP202G000 Online
Purchase the TE Connectivity Digital Temperature Sensor module online today to enhance your embedded system with accurate temperature measurement. Featuring the TSYS02D chip, it offers a wide measurement range from -40°C to 125°C with up to 0.2°C accuracy. Designed for low power consumption and fast response, this 4-pin Grove-compatible device integrates onboard calibration and high-resolution readings at 16 or 24 bits. Its compact size of 20.6mm x 20.6mm makes it ideal for diverse industrial, automation, and development projects, ensuring reliable thermal monitoring.
Buy TE Connectivity DPP202G000 now and experience fast response times, high resolution, and reliable temperature measurement for your embedded applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DPP202G000?
You can click on the BUY or RFQ button to purchase DPP202G000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DPP202G000?
You can download the DPP202G000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DPP202G000?
TE CONNECTIVITY
