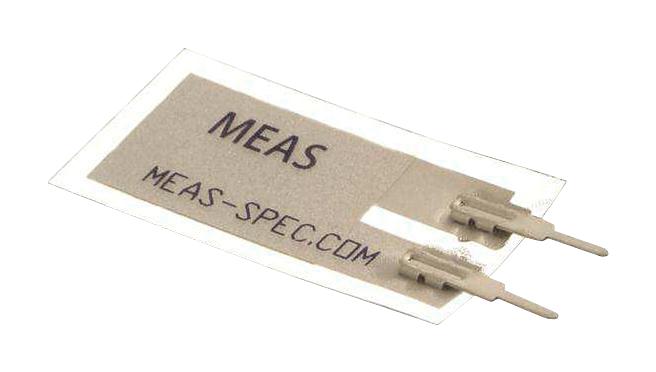

TE CONNECTIVITY DT1052K Piezo Film Sensor
The DT series piezo film sensors are rectangular elements with silver ink screen-printed electrodes, available in various sizes and thicknesses. They generate over 10 millivolts per microstrain, significantly higher than foil strain gauges, making them ideal for dynamic strain measurements, contact microphones, and impact detection. These flexible sensors can be adhered to surfaces with tape or epoxy and are suitable for sensing contact forces, event timing, impact counting, or custom sensor creation, operating efficiently from -40°C to 60°C. Their lightweight, thin design offers high piezo activity for versatile vibration sensing applications.
TE CONNECTIVITY DT1052K Piezo Film Sensor Specifications:
- Thickness options: 28 um, 52 um
- Electrode Material: Silver ink
- Max Input Impedance: 10 Megaohms
- Output Voltage: 10 mV to hundreds of volts
- Operating Temperature Range: -40°C to 60°C
- Capacitance: Proportional to area, inversely related to thickness
- Dimensions vary by model, e.g., 28 um or 52 um film thickness with sizes in inches (mm)
- Available in rectangular sizes like 0.484 inch (12 mm) width, length varies
- High piezo activity with production over 10 mV per microstrain
- Ideal for vibration, impact, and dynamic force measurements
Buy the TE Connectivity Series DT Piezo Film: DT1052K
Order the TE Connectivity DT1052K piezo film sensor online today and enhance your vibration, impact, or contact sensing projects with reliable, high-performance piezoelectric elements. These sensors are lightweight, flexible, and easy to attach using epoxy or tape, making them perfect for custom sensor solutions, impact counting, and event timing applications. With operating temperatures from -40°C to 60°C and high output voltage, the DT series offers excellent sensitivity and durability for various industrial and research applications. Purchase now for fast delivery and technical support.
Buy TE Connectivity DT1052K now and experience unmatched flexibility and high sensitivity for dynamic sensing and impact detection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DT1052K?
You can click on the BUY or RFQ button to purchase DT1052K from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DT1052K?
You can download the DT1052K datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DT1052K?
TE CONNECTIVITY
