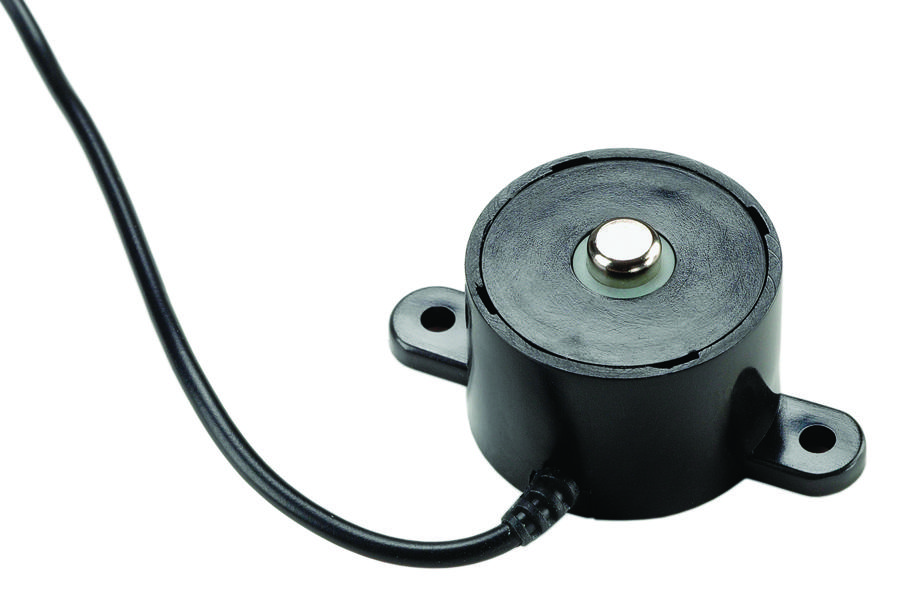

TE CONNECTIVITY FC223100000100L Compression Load Cell
The FC22 compression load cell is a compact, reliable force sensor designed for precise measurement in medical, robotics, weighing, and industrial applications. Featuring proprietary Microfused technology with silicon piezoresistive strain gages fused to a stainless steel substrate, it offers excellent long-term stability, high over-range capacity, and essentially unlimited cycle life. With ranges from 10 to 100 Ibf, high sensitivity, thermal compensation, and CE compliance, the FC22 ensures consistent performance for critical force sensing tasks across various industries, making it ideal for OEM integration and demanding environments.
TE CONNECTIVITY FC223100000100L Compression Load Cell Specifications:
- Range: 10-100 Ibf
- Span (Unamplified): 19-30 mV
- Zero Force Output: -0.5 to 0 mV
- Output Resistance: 22 kΩ
- Input Resistance: 3 kΩ
- Maximum Overload: 2.5 times rated load
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Excitation Voltage: 4.75V to 5V
- Accuracy: Typical non-linearity, hysteresis, and repeatability
- Long Term Stability: 4 hours per year
- Dimensions vary with model, typical size includes stainless steel construction, compact design
- CE Compliance: IEC61000-4-2, IEC61000-4-3, IEC55022 Class A
- Connection: 3-core or 4-core wire options, 28 AWG, 300V rated
- Shock & Vibration: High over-range capabilities, robust housing
Buy the TE Connectivity FC22 – Reliable Compression Load Cell for Industrial Applications
Enhance your force measurement with the TE Connectivity FC22 compression load cell. Designed for high stability, long-term reliability, and versatile applications ranging from medical devices to industrial equipment, this compact sensor offers ranges from 10 to 100 Ibf. Its proprietary Microfused technology ensures excellent long-term span stability, high overload capacity, and thermal compensation. With CE compliance, easy fixture design, and robust construction, the FC22 is ideal for OEM OEM integration in demanding environments. Order online now for fast, reliable delivery and upgrade your force sensing capabilities today.
Order your TE Connectivity FC22 compression load cell today and enhance force measurement accuracy in your industrial or medical projects with dependable quality.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FC223100000100L?
You can click on the BUY or RFQ button to purchase FC223100000100L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FC223100000100L?
You can download the FC223100000100L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FC223100000100L?
TE CONNECTIVITY
