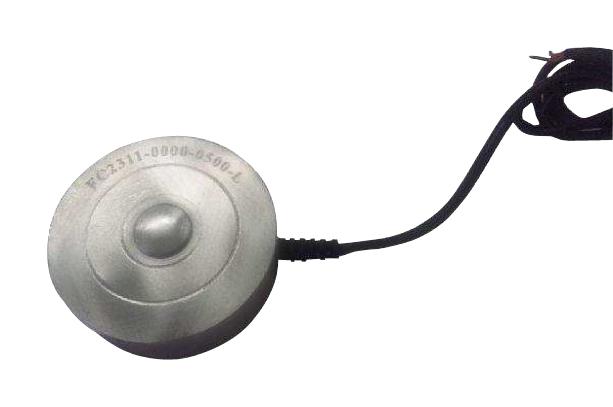

TE CONNECTIVITY FC231100000500L Compression Load Cell
The FC23 compression load cell is a highly accurate, durable sensor designed for force measurement in industrial applications. Utilizing proprietary Microfused™ technology with micromachined silicon piezoresistive strain gages fused to high-performance stainless steel, it offers excellent long-term stability, high over-range capability, and thermal compensation. Suitable for batch weighing, robotics, variable force control, and load sensing, this compact sensor provides reliable, consistent readings at ranges from 50 to 2000 pounds-force, ensuring durability and precision in demanding environments.
TE CONNECTIVITY FC231100000500L Compression Load Cell Specifications:
- Range: 50 to 2000 lbf
- Output: High level or mV
- Span: 95 mV (non-ratiometric to supply)
- Zero Force Output: -20 mV
- Temperature Range: -40°C to +85°C
- Over-Range Capability: High over-range
- Material: Stainless steel
- Dimensions: Compact design with 8.00 spherical core wire (FC2331) and 4-core wire options
- Response Time: approximately 4 ms
- CE Compliance: Yes
- Insulation Resistance: 50 MΩ at 250Vdc
- Response Time: 4 ms
- Response at 10-90%: approximately 4 ms
- Long-term Stability: ≥1 year
- Maximum Overload: specified per model, typically 150% of full scale
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
Buy the Buy TE Connectivity FC23 Compression Load Cell Part Number FC231100000500L Online
Purchase the TE Connectivity FC23 compression load cell online today for precise force measurement in industrial applications. This durable sensor features Microfused™ technology, ensuring excellent stability and resilience in demanding environments. Whether for batch weighing, robotics, or load sensing, its compact design and high over-range capacity make it ideal for OEM applications requiring consistency and accuracy. Easy to integrate with standard wiring options, the FC23 provides reliable performance and long cycle life, supporting your manufacturing and automation needs with confidence.
Buy TE Connectivity FC23 load cell now and experience robust accuracy, high over-range capability, and long-term stability for industrial force measurement.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FC231100000500L?
You can click on the BUY or RFQ button to purchase FC231100000500L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FC231100000500L?
You can download the FC231100000500L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FC231100000500L?
TE CONNECTIVITY
