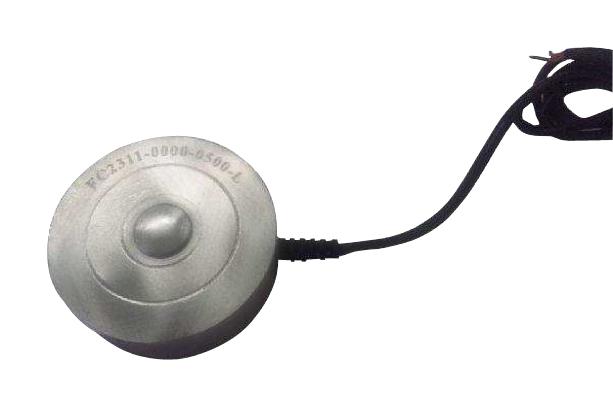

TE CONNECTIVITY FC231100001000L Compression Load Cell
The FC23 Compression Load Cell is a highly reliable sensor measuring forces from 50 to 2000 pounds-force, ideal for industrial applications such as weighing, robotics, and load sensing. It features microfused technology for long-term stability, high over-range capability, and thermal compensation, ensuring precision and durability. Suitable for OEM integrations, it offers various output options including millivolt and amplified signals. Compact, industry-standard design with CE compliance, making it perfect for demanding force measurement tasks in automation and manufacturing environments.
TE CONNECTIVITY FC231100001000L Compression Load Cell Specifications:
- Force Range: 50-2000 lbf
- Output: High level mV or 0-100mV options
- Supply Voltage: 2-5V
- Response Time: 1.0 ms
- Temperature Range: -40°C to +85°C
- Dimension: Diameter 29.00 mm, Length 25.40 mm
- Material: Stainless steel
- Overload Capability: High
- CE Compliance: Yes
- Connection Wires: 4-core AWG32 or AWG34, 125°C, 300V
- Zero Output Uncompensated: -50 to 0 mV
- Span (Unamplified): 95-100 mV
- Long-term Stability: 1 year
- Weight: 47.23 grams
Buy the TE Connectivity FC23 – Reliable Compression Load Cell for Industrial Applications
Order the TE Connectivity FC23 compression load cell online today to benefit from its outstanding accuracy, high over-range capacity, and robust design. Suitable for weighing, robotics, and force sensing, it features microfused technology for long-term stability and thermal compensation. Its compact size and industry-standard packaging make installation straightforward. Whether you need a standard model or custom solutions, purchasing online ensures fast delivery and technical support for your industrial force measurement needs, helping you achieve precise, reliable results efficiently.
Buy TE Connectivity FC23 compression load cell now and enhance your force measurement accuracy with durable and reliable sensing technology.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FC231100001000L?
You can click on the BUY or RFQ button to purchase FC231100001000L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FC231100001000L?
You can download the FC231100001000L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FC231100001000L?
TE CONNECTIVITY
