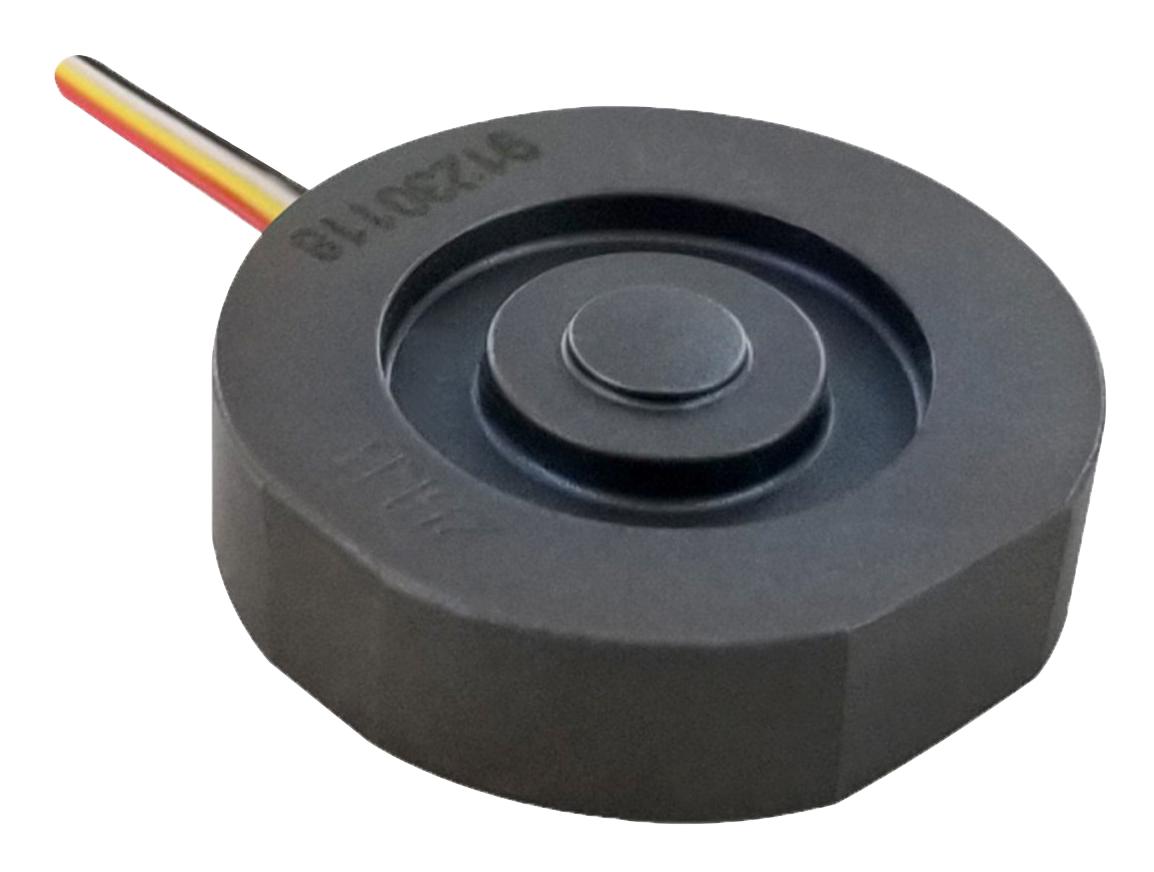

TE CONNECTIVITY FX29K0100A0025L Compression Load Cell
The FX29 compression load cell is a compact, versatile force sensor designed for embedded force sensing applications across medical, industrial, and automation sectors. It features microfused technology for exceptional stability, high over-range capability, and various output options including mV, amplified, and digital interfaces. Constructed with stainless steel, it offers ranges from 50N to 500N, low power consumption, and robust environmental durability, making it suitable for medical infusion pumps, weighing devices, Power Tools, and robotic systems. Its slim profile and reliable performance support precise force measurement in compact spaces.
TE CONNECTIVITY FX29K0100A0025L Compression Load Cell Specifications:
- Physical Dimensions: Length approximately 40 mm, typical weight 6 grams
- Construction: Stainless steel enclosure, two-piece design with microfused sensing element
- Load Ranges: 50N to 500N (10 lbf to 100 lbf)
- Output Types: mV, amplified (0.5-4.5V), digital (I2C)
- Maximum Load: 2.5 times rated capacity
- Zero Offset: 300 to 1700 counts (digital) / -15 to 15 mV/V (analog)
- Span: 3800 to 4200 mV (analog) / 14,300 to 15,700 counts (digital)
- Input Voltage: 5 V (analog), 3 V (digital), typical operating current 3 mA (analog)
- Insulation Resistance: 50 MΩ at 250 VDC
- Environmental: Operating temperature 0°C to 50°C, storage -40°C to 85°C, IP43 ingress protection
- Cycle Life: 1 million cycles at full scale
- Deflection at rated load: 0.03 mm
- Media Compatibility: Stainless steel surfaces, excluding cable and connector
Buy the TE Connectivity FX29 Compression Load Cell – Reliable Force Sensor for Industrial Applications
Experience reliable and precise force measurement with the TE Connectivity FX29 compression load cell. Its robust stainless steel design and multiple output options, including analog and digital interfaces, make it ideal for medical devices, industrial scales, robotics, and manufacturing equipment. The compact form factor and high over-range capacity ensure durability and flexibility in space-constrained environments. Whether you need 50N or 500N load ranges, this sensor offers excellent stability, cycle life, and environmental resistance. Purchase online today to integrate this versatile force sensor into your innovative solutions and enhance your application's accuracy and performance.
Get TE Connectivity FX29 today—built for precision, durability, and versatile force measurement in demanding medical, industrial, and automation settings.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FX29K0100A0025L?
You can click on the BUY or RFQ button to purchase FX29K0100A0025L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FX29K0100A0025L?
You can download the FX29K0100A0025L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FX29K0100A0025L?
TE CONNECTIVITY
