TE CONNECTIVITY GA10K3D1303 Pipe Temperature Probe

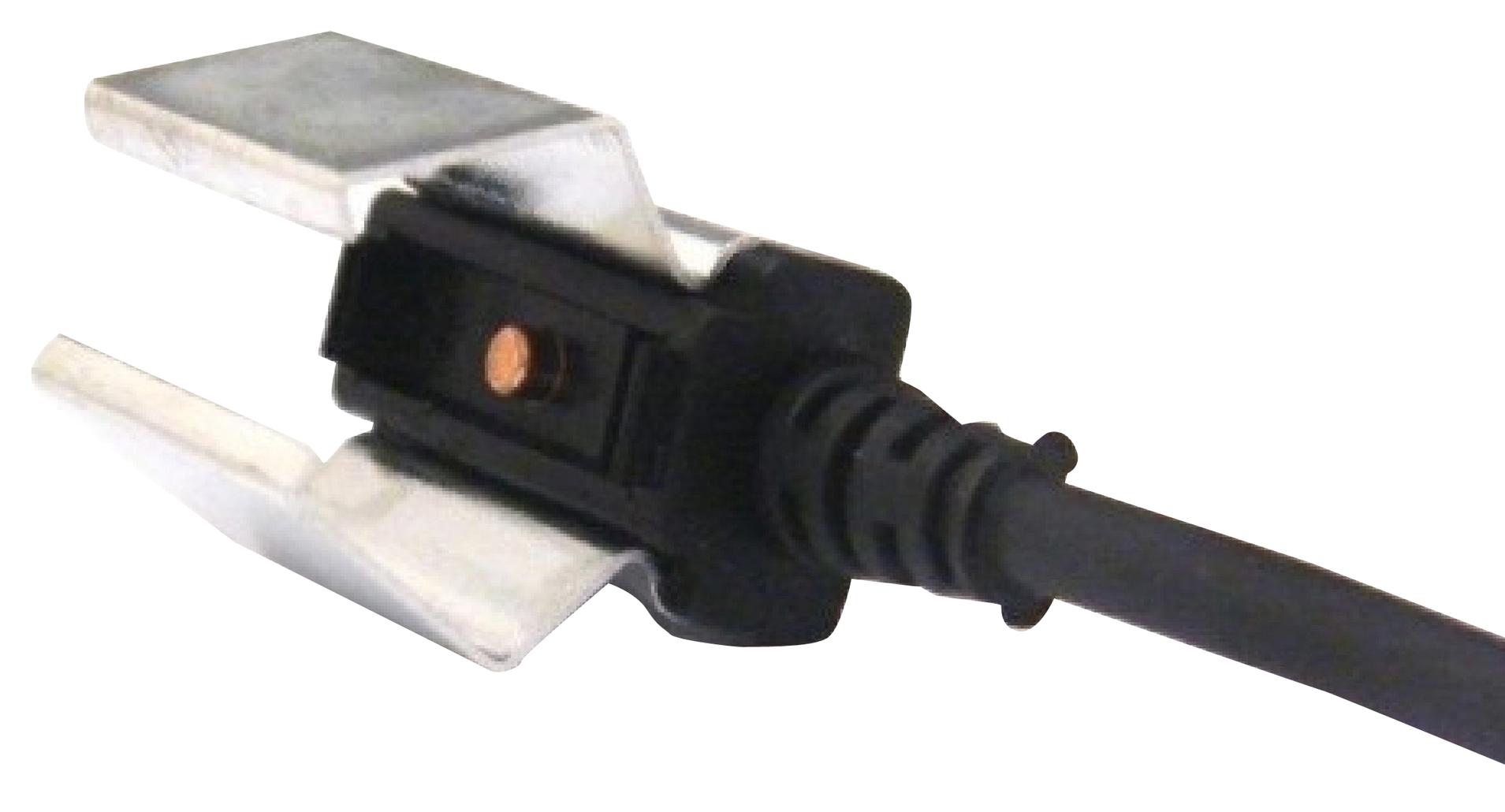

The Pipe Probe is a robust and compact temperature sensing device designed for pipe surface measurements. It features an NTC thermistor soldered to a 24 AWG stranded TPE cable with strain relief, housed in a copper enclosure with a metal clip for easy attachment to 1/2 inch pipes. The probe provides fast response times (~5 seconds on pipe surface), a wide temperature measurement range from -40°C to +125°C, and RoHS compliance. Supplied with a connector, it ensures reliable temperature monitoring in industrial applications, combining durability and precision.
TE CONNECTIVITY GA10K3D1303 Pipe Temperature Probe Specifications:
- Resistance @ 25°C: 10,000 Ohms
- Tolerance from +25°C to +85°C: HH
- Beta Value 25/85 K: 3435
- Tolerance on Beta Value: +2%
- Response Time (T63): ~5 seconds
- Temperature Range: -40°C to +125°C
- Cable: 24 AWG stranded TPE
- Housing Material: Copper
- Dimensions: Length 41 mm, cable length varies (1M, 3M, 10M options)
- Clip material: Metal
- Connector: Supplied with connector
- RoHS Compliant: Yes
Buy the Buy TE Connectivity Pipe Probe Part Number GA10K3D1303 Online
Purchase the TE Connectivity Pipe Temperature Probe GA10K3D1303 online today for precise and quick temperature monitoring of pipes. Its durable copper housing and reliable NTC thermistor ensure accurate readings from -40°C to +125°C, essential for industrial and HVAC applications. The probe comes with an easy-to-attach metal clip designed for 1/2 inch pipes, providing a secure fit and quick installation. Order now to benefit from robust construction and fast response time, ensuring your process stays within optimal temperature ranges.
Buy TE Connectivity Pipe Probe GA10K3D1303 now and experience fast, reliable pipe surface temperature measurement with easy clip attachment.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GA10K3D1303?
You can click on the BUY or RFQ button to purchase GA10K3D1303 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GA10K3D1303?
You can download the GA10K3D1303 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GA10K3D1303?
TE CONNECTIVITY
