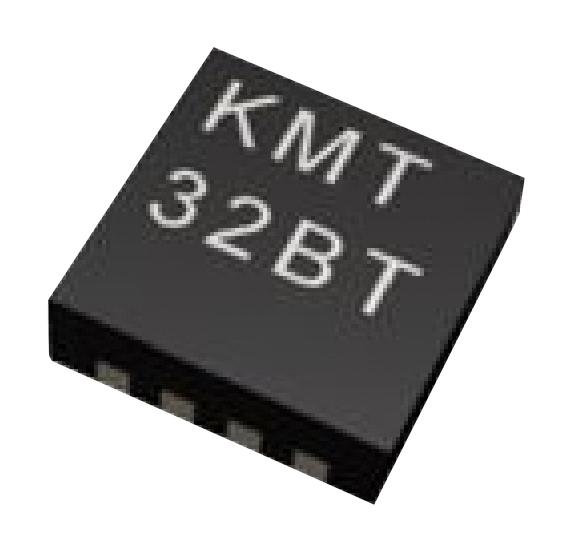

TE CONNECTIVITY GMRCO016 Magnetic Angle Sensor
The KMT32B is a highly accurate magnetic angle sensor utilizing anisotropic magneto resistance technology, designed for precise angular position detection in harsh environments. Encased in a tiny TDFN package, it features a contactless and linear angular measurement system with extended temperature range from -40°C to +150°C. Suitable for automotive, robotics, and industrial applications, it provides sinusoidal outputs for accurate position tracking, includes self-diagnosis, and is RoHS and REACH compliant for environmentally conscious manufacturing. Its robust design ensures reliability in moderate magnetic field strengths typically around 25 kA/m.
TE CONNECTIVITY GMRCO016 Magnetic Angle Sensor Specifications:
- Supply voltage: 5 VV
- Resistance: 2400-3600 Q
- Output signal amplitude: 9-13 mV/V
- Offset voltage: -1 to +1 mV/V
- Angular inaccuracy: 0.05-0.2 degrees
- Angular hysteresis: 0.1 degrees
- Operating temperature: -40°C to +150°C
- Storage temperature: -40°C to +150°C
- Max supply voltage: 10 V
- Max current: 4 mA per bridge
- Package: TDFN 2.5 x 2.5 mm dimensions
- RoHS & REACH compliant
- Works at magnetic field strength above 25 kA/m, optimal at 25 kA/m
- Output signals follow cos(2a) and sin(2a), with high linearity
- Features include self-diagnosis and extended temperature operation
- Designed for autonomous angle measurement in automotive and industrial systems.
Buy the Buy TE Connectivity Magnetic Angle Sensor Part Number GMRCO016 Online
Purchase the TE Connectivity magnetic angle sensor GMRCO016 online today and enjoy efficient, precise, and reliable angular position measurement. Perfect for automotive steering, robotics, camera positioning, and medical device applications, this sensor offers excellent linearity, high accuracy, and environmental robustness. Its compact TDFN package makes integration straightforward in space-constrained environments. With RoHS and REACH compliance, it ensures eco-friendly manufacturing and operation. Order now to benefit from fast delivery and technical support, enhancing your project with dependable magnetic sensing technology.
Buy TE Connectivity GMRCO016 magnetic angle sensor now and experience high accuracy, reliable performance, and rugged design for demanding applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GMRCO016?
You can click on the BUY or RFQ button to purchase GMRCO016 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GMRCO016?
You can download the GMRCO016 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GMRCO016?
TE CONNECTIVITY
