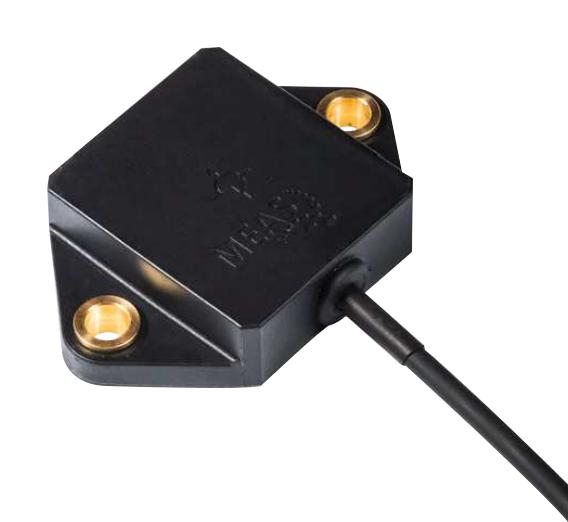

TE CONNECTIVITY GNSDOG2002 Inclinometer
The DOG2 MEMS Series Voltage Inclinometer is a dual-axis sensor designed for precise tilt measurement in mobile and stationary equipment. It features measurement ranges of +25°, +45°, and +90°, with high accuracy of 0.5° from -40°C to 85°C and 0.15° at 25°C. The sensor offers a 12-bit resolution, 100 Hz refresh rate, and operates on 8-30 VDC power. Its compact design with robust housing ensures reliable operation in vibrating environments, making it ideal for vehicle leveling, engine management, and industrial applications.
TE CONNECTIVITY GNSDOG2002 Inclinometer Specifications:
- Range: +25°, +45°, or +90° dual-axis
- Accuracy: 0.5° (-40°C to 85°C), 0.15° (25°C)
- Resolution: 12-bit
- Refresh Rate: 100 Hz
- Supply Voltage: 8 to 30 VDC
- Output: 0.5 to 4.5 V
- Temperature Range: -40°C to 85°C
- Housing Material: PA6.6, compact size 70.5 mm x 45 mm x 15 mm
- Connector: AMP Superseal 4-pos, cable length 400 mm
- Weight: approximately 60 g
Buy the Buy TE Connectivity DOG2 MEMS Series Voltage Inclinometer Part Number GNSDOG2002 Online
Enhance your industrial or vehicle leveling system with the TE Connectivity DOG2 MEMS Series voltage inclinometer. Featuring dual-axis measurement, high-resolution 12-bit accuracy, and a compact, durable design, it performs reliably in noisy environments with vibration damping and temperature compensation. Operating on 8-30 VDC power, this sensor delivers fast 100 Hz updates, making it ideal for engine management, tilt detection, and safety applications. Purchase online today to ensure precise and dependable tilt measurements for your projects.
Get TE Connectivity DOG2 MEMS Series Voltage Inclinometer today—designed for precision tilt measurement in vehicle and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GNSDOG2002?
You can click on the BUY or RFQ button to purchase GNSDOG2002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GNSDOG2002?
You can download the GNSDOG2002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GNSDOG2002?
TE CONNECTIVITY
