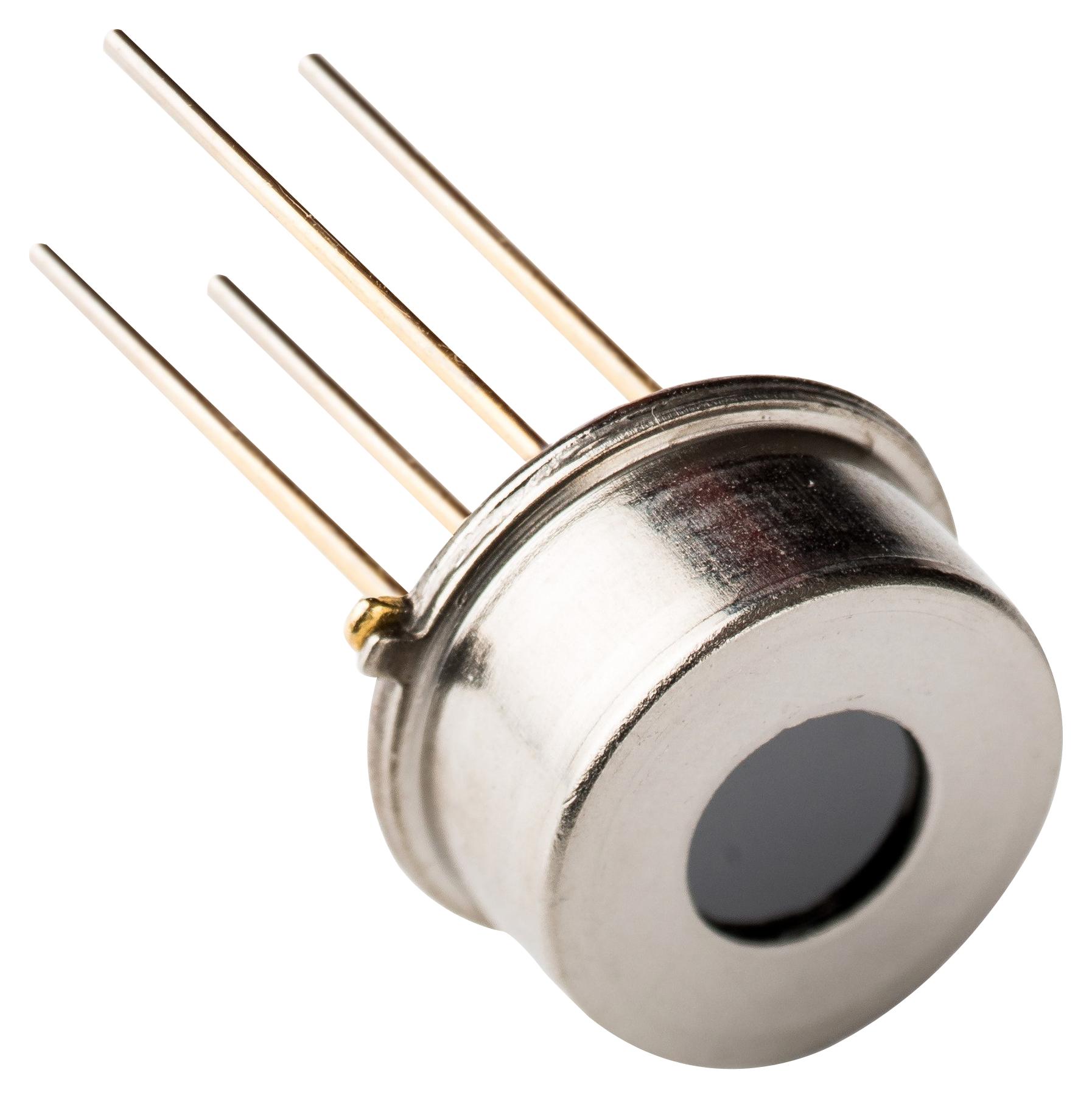

TE CONNECTIVITY GTPMO102 Digital Thermopile Sensor
The TSD305-2C55 is a compact digital thermopile sensor designed for contactless temperature measurement across a range of -10°C to +85°C ambient and -20°C to +300°C object temperature. It features integrated infrared sensing with a signal conditioner, enabling microcontroller interface via I2C. The device offers high precision with 0.1°C resolution, low power consumption, and a small size suitable for industrial, household, and climate control applications. Its robust design ensures reliable performance in various temperature environments and seamless integration into electronic systems for precise thermal measurements.
TE CONNECTIVITY GTPMO102 Digital Thermopile Sensor Specifications:
- Measurement Range: -10°C ... +85°C ambient, -20°C ... +300°C object temperature
- Resolution: 0.1°C
- Supply Voltage: 1.68V to 3.6V
- Operating Temperature: -20°C ... +85°C
- Object Temperature Range: 0°C to +300°C
- Current Consumption: Active average 1050-1500 HA; Sleep 20-25 nA
- IF Interface: I2C at up to 3.4 MHz
- Sensor Element: Thermopile with 88° field of view
- Response Time: 44.8 to 59.2 ms
- Size: Small form factor suitable for compact applications
- Calibration Data stored in EEPROM, supporting precise temperature calculations
- Protection: Designed without CE declaration, robust against wireless disturbances and overvoltage
- Max supply voltage: 3.63V
- Storage Temperature: -20°C to +85°C
- ESD Rating: Human Body Model ±2 kV
Buy the Buy TE Connectivity TSD305-2C55 Digital Thermopile Sensor Part Number GTPMO102 Online
Secure your TE Connectivity TSD305-2C55 digital thermopile sensor online today. Experience the ease of integration and highly accurate, contactless temperature measurement for industrial, household, and climate control applications. Designed with low power consumption and compact size, this sensor ensures reliable performance in diverse temperature environments. Purchase now to improve your thermal sensing capabilities with this advanced infrared solution, backed by robust design and long-term stability for seamless operational efficiency.
Buy TE Connectivity TSD305-2C55 sensor now and enhance your contactless temperature measurement solutions with high accuracy and low power consumption.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GTPMO102?
You can click on the BUY or RFQ button to purchase GTPMO102 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GTPMO102?
You can download the GTPMO102 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GTPMO102?
TE CONNECTIVITY
