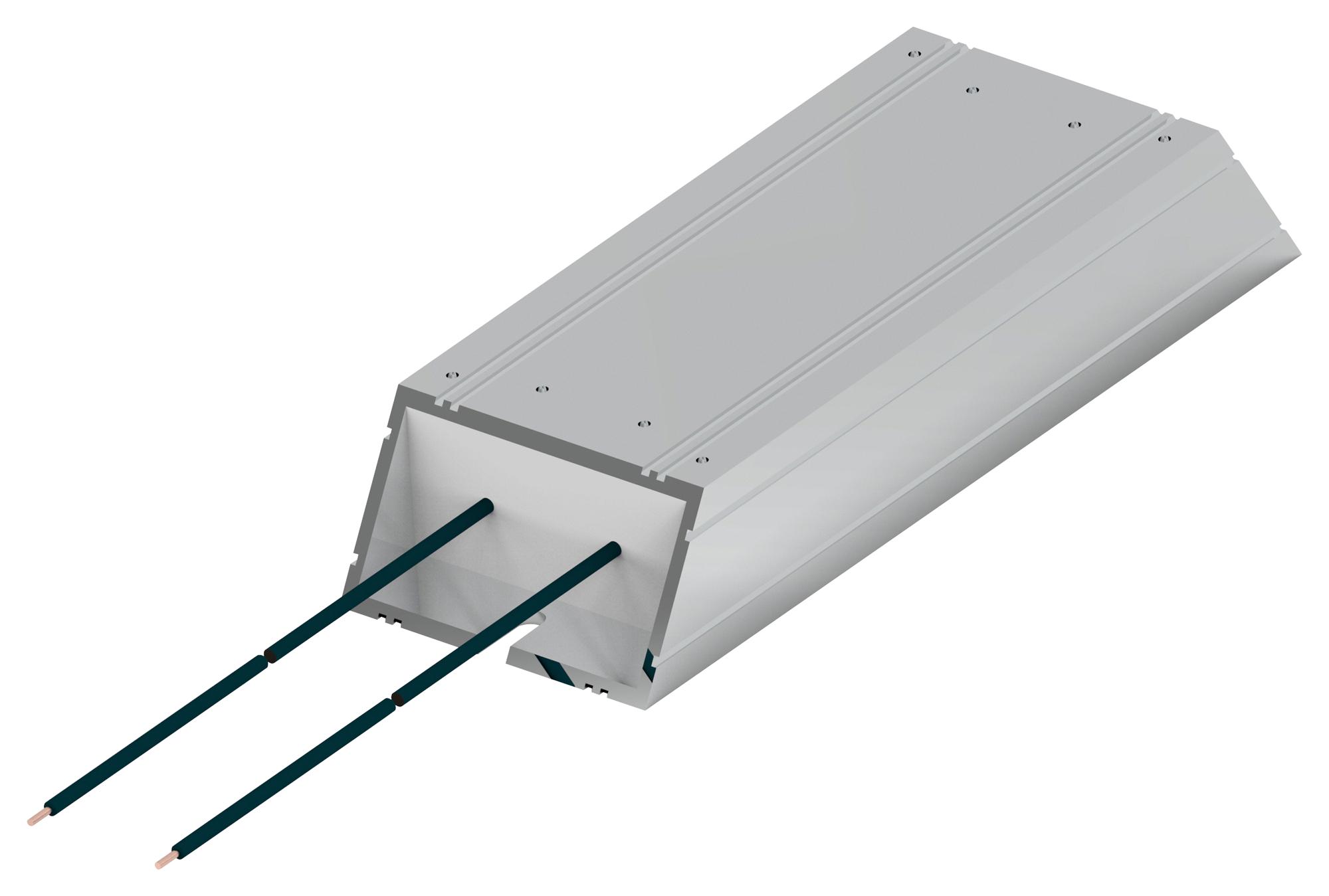

TE CONNECTIVITY HCH165J10RJ Braking Resistor
This aluminium housed braking resistor series is designed for high power overload capabilities, making it ideal for braking applications in drive systems. With IP54 ingress protection, PTFE insulated flying leads, and a robust aluminium profile, these resistors ensure durability and reliable performance under demanding conditions. They feature a wire wound resistor element, tolerance levels of +5% or +10%, and can handle maximum working voltages up to 1100V and power ratings from 200W to 500W. Suitable for various overload pulse cycles, they are tested for load life, humidity, and ingress resistance, ensuring consistent operation and safety.
TE CONNECTIVITY HCH165J10RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W (40°C)
- Maximum Working Voltage: 1100V
- Resistance Range: 680-2200Ω
- Tolerance: +5%, +10%
- Resistance Element: Wire Wound
- Ingress Protection: IP54
- Body Material: Anodized extruded aluminium profile
- Temperature Rating: Up to 375°C
- Lead Length: 300mm PTFE insulated flying leads
- Dielectric Strength: 3500VAC for 1m
- Insulation Resistance: >100MO @ 1000VDC
- Log life tested: 90 minutes on, 30 minutes off cycle for 10,000 cycles
- Environmental Resistance: Meets criteria for load life, humidity, and ingress protection
- Dimensions: HCH165 L=165mm, HCH215 L=215mm, HCH265 L=265mm, HCH335 L=335mm
Buy the TE Series Braking Resistor: HCH165J10RJ
Purchase the TE Connectivity aluminium housed braking resistor HCH165J10RJ online today. Designed with high overload capacity and IP54 protection, it is ideal for demanding drive system applications requiring durable, reliable braking performance. With PTFE insulated flying leads and a wire wound resistor element, this resistor ensures safety and consistent operation. Its robust aluminium profile withstands high temperatures up to 375°C, making it suitable for various industrial environments. Order now to benefit from fast delivery, comprehensive product support, and trusted quality for your braking and motor control needs.
Buy TE Connectivity aluminium housed braking resistor HCH165J10RJ now and experience reliable overload handling and durable performance in drive systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J10RJ?
You can click on the BUY or RFQ button to purchase HCH165J10RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J10RJ?
You can download the HCH165J10RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J10RJ?
TE CONNECTIVITY
