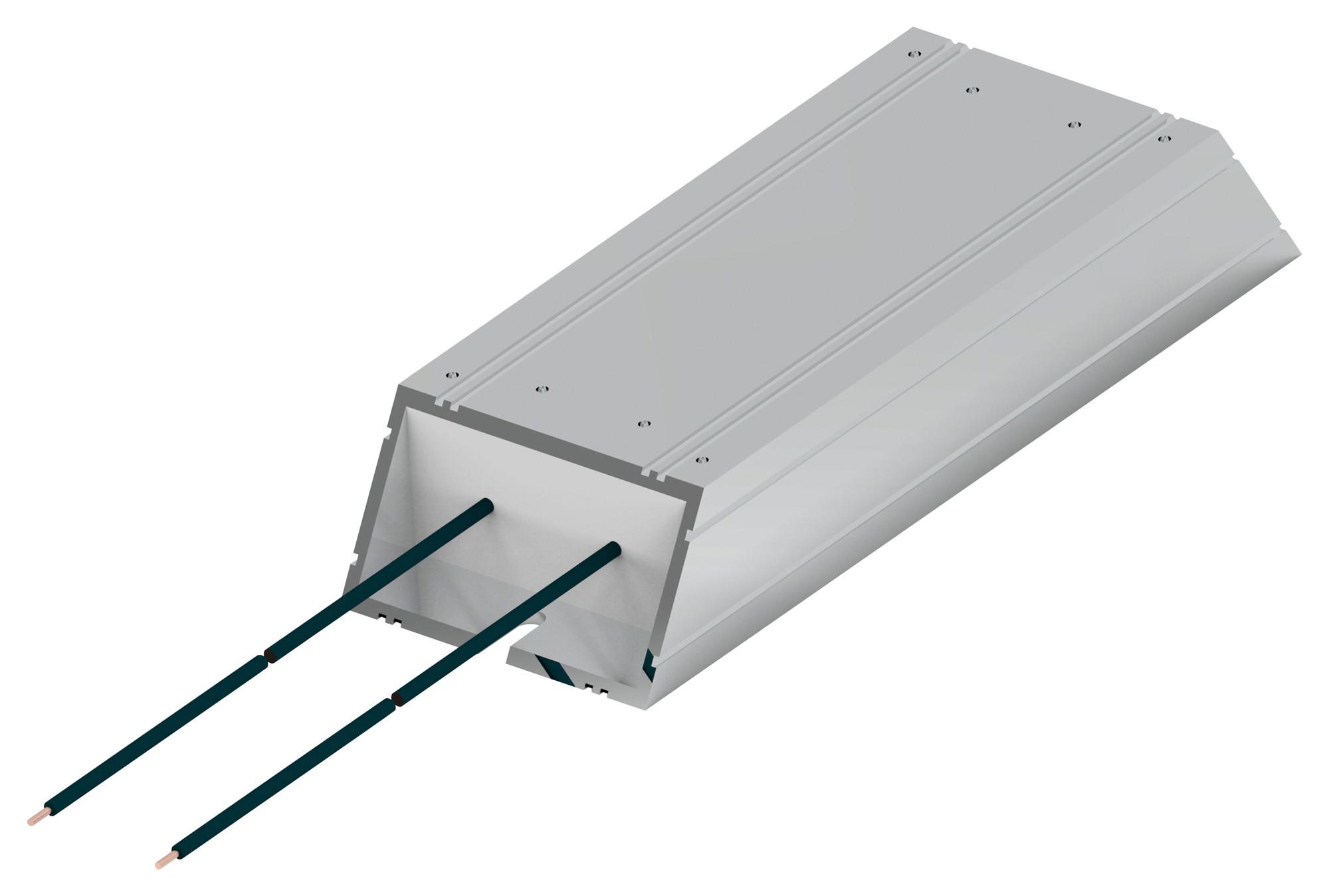

TE CONNECTIVITY HCH165J22RJ Braking Resistor
The Aluminium Housed Braking Resistor from TE Connectivity's Type HCH Series is designed for high power overload absorption in braking systems. Featuring an anodized aluminium profile body, PTFE insulated flying leads, and an IP54 ingress protection rating, it ensures durability and safety across diverse applications. Rated at 300 W with a maximum temperature of 330°C, it offers excellent overload performance, insulation resistance over 100 MΩ, and is suitable for demanding industrial environments. Precise specifications enable reliable operation in drive systems requiring high pulse load capacity and thermal management.
TE CONNECTIVITY HCH165J22RJ Braking Resistor Specifications:
- Power Rating: 200W (HCH165), 300W (HCH215), 400W (HCH265), 500W (HCH335)
- Maximum Temperature: 330°C (HCH215), 350°C (HCH265), 375°C (HCH335)
- Resistance Range: 680-2200Ω (HCH165/HCH215), 102-2200Ω (HCH265), 100-2200Ω (HCH335)
- Ingress Protection: IP54
- Insulation Resistance: >100 MΩ @ 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Pulse Load Capacity (W): HCH165 – 6.8 to 220 W, HCH215 – 6.8 to 220 W, HCH265 – 10 to 220 W, HCH335 – 10 to 220 W
- Overload Testing: cycles of 1, 5, and 40 seconds at specified power levels with duty cycles up to 33.3%
- Body Material: Anodized extruded aluminium profile
- Connections: PTFE insulated flying leads, standard length 300mm
- Environmental Resistance: Load life AR 45%, damp heat test at 40°C/95% humidity for 56 days
- Certifications: UL, CSA, IEC
- Dimensions: varies per model, e.g., HCH165 165mm L, HCH335 335mm L.
- Weight: Dependent on size, lightweight design for easy installation
- Packaging: Individually boxed, marked with type, resistance, tolerance, batch code
