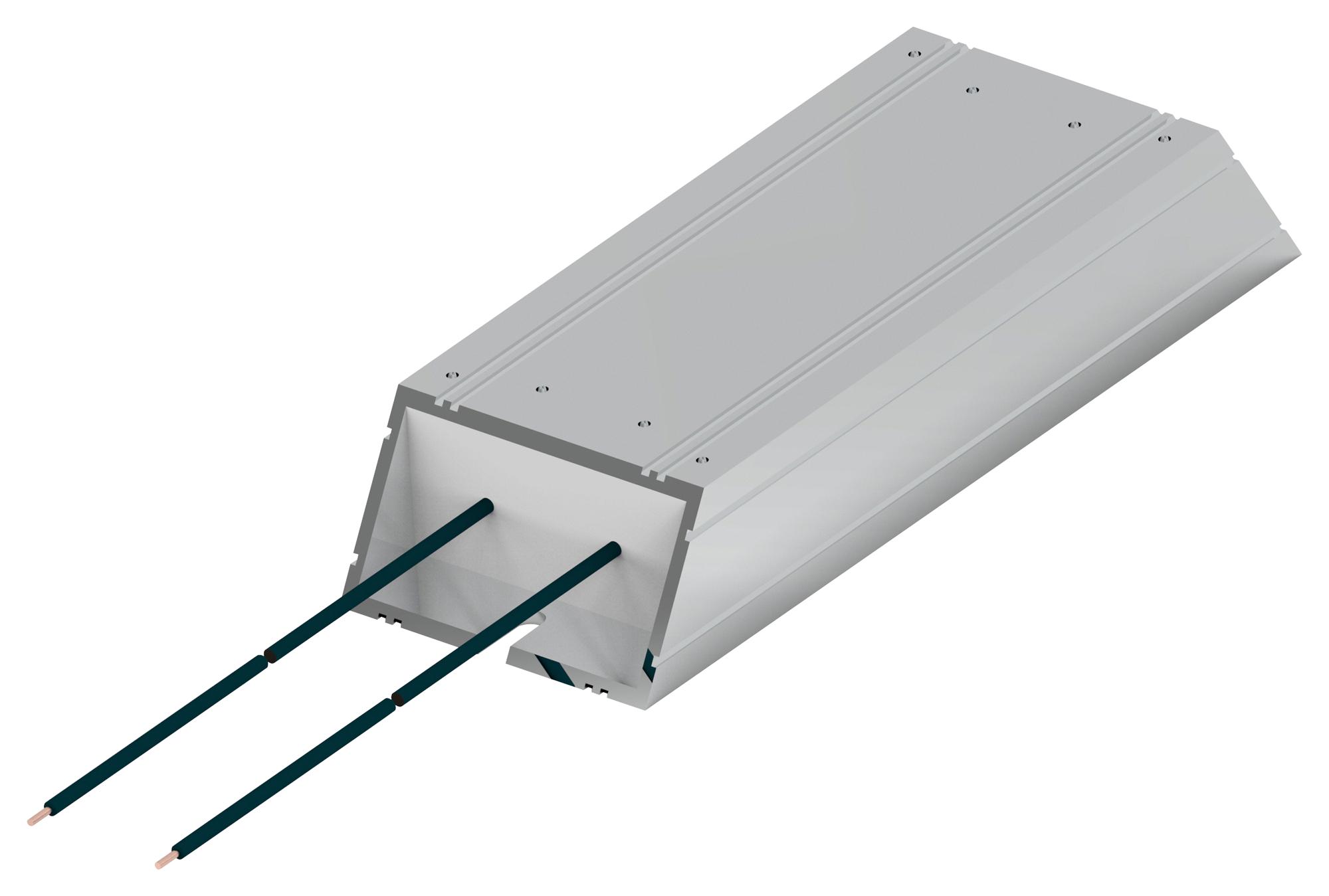

TE CONNECTIVITY HCH165J6R8J Aluminium Braking Resistor
The Aluminium Housed Braking Resistor series offers high power overload capacity with IP54 ingress protection, ideal for braking applications in drive systems. Constructed with PTFE insulated wire wound elements and anodized aluminium profiles, these resistors ensure durability in demanding environments. Available in various power ratings from 200W to 500W and operating temperatures up to 375°C, they provide reliable overload handling, specified pulse load ratings, and robust insulation resistance. Shipping includes individual packaging, and resistors are marked with essential details for easy identification and installation.
TE CONNECTIVITY HCH165J6R8J Aluminium Braking Resistor Specifications:
- Power Ratings: 200W to 500W at 40°C
- Maximum Temperature: 375°C
- Resistance Range: 680Ω to 2200Ω (higher/lower upon enquiry)
- Ingress Protection: IP54
- Insulation Resistance: >100MQ at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Body Material: Anodized extruded aluminium profile
- Resistor Element: Wire wound
- Fly Lead Length: 300mm, PTFE insulated, rated 1000V, 200°C
- Overload Testing: duty cycles up to 120s at specified pulse power
- Environmental Tests: Load life, damp heat, dust/moisture ingress
- Dimensions: Lengths vary per model; HCH165: 165mm, HCH215: 215mm, HCH265: 265mm, HCH335: 335mm
- Certifications: Compliant with applicable standards
Buy the TE Series HCH Braking Resistor: HCH165J6R8J
Purchase the TE Series HCH165J6R8J aluminium housed braking resistor online today for your drive systems. These high power resistors feature IP54 protection, PTFE insulated wire wound elements, and robust aluminium construction. Perfect for braking applications, they support overloads up to specified pulse ratings and operate reliably at temperatures up to 375°C. Easy to install, individually packaged, and marked with essential details, ensuring fast deployment and optimal performance in industrial and automation projects.
Order your TE Series HCH165J6R8J aluminium braking resistor today and enhance the reliability of your drive and braking systems with high overload capacity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J6R8J?
You can click on the BUY or RFQ button to purchase HCH165J6R8J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J6R8J?
You can download the HCH165J6R8J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J6R8J?
TE CONNECTIVITY
