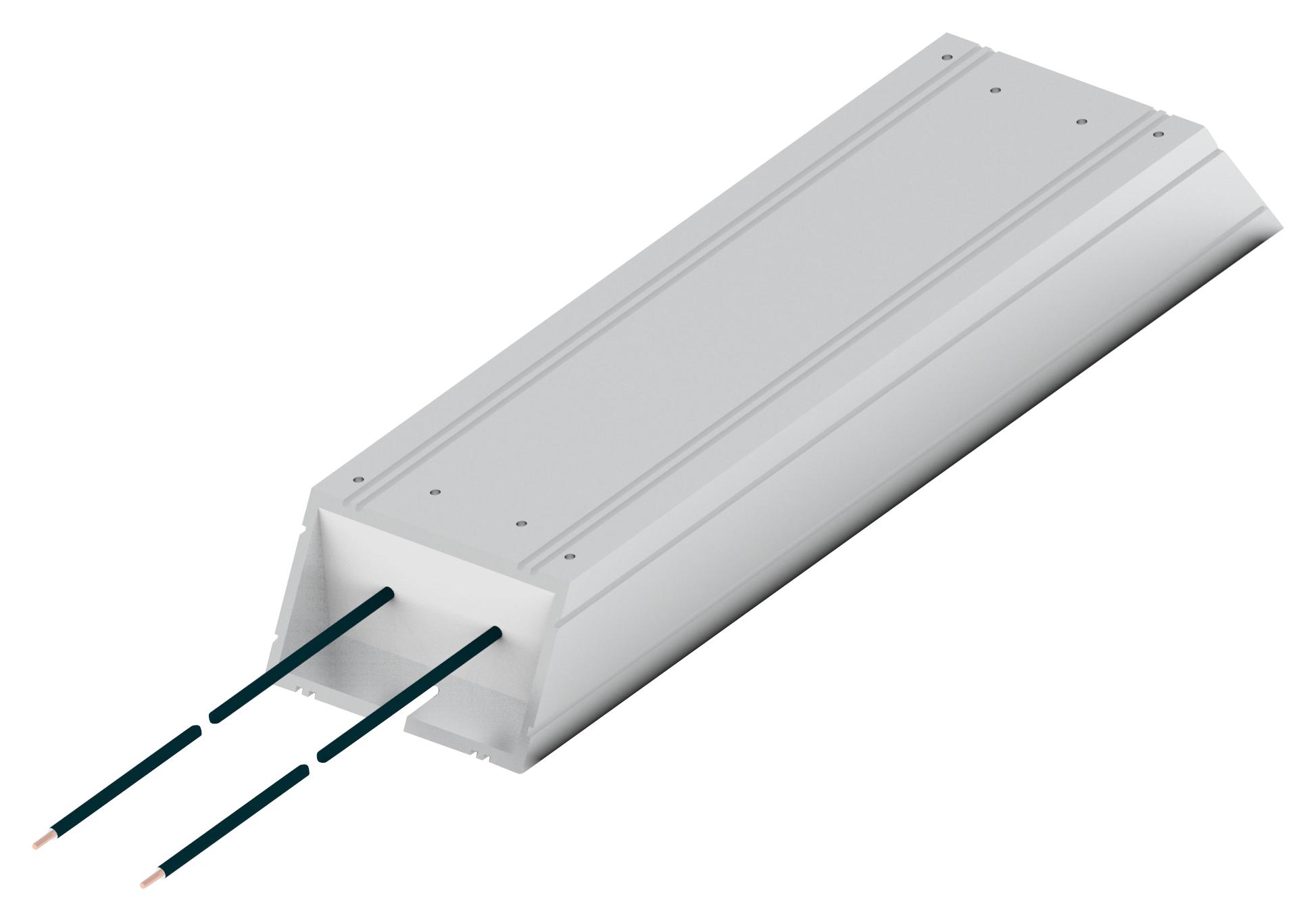

TE CONNECTIVITY HCH215J220RJ Braking Resistor
The Aluminium Housed Braking Resistor is designed for high power overload absorption in braking applications. Featuring IP54 ingress protection, PTFE insulation, and anodized aluminium profile body, it offers excellent durability. Available in multiple power ratings from 200W to 500W, these resistors handle temperature ranges up to 375°C. They are tested for overload cycles, insulation resistance, and environmental factors like load life and humidity. Flying leads ensure flexible connection options, making these resistors ideal for industrial drive systems requiring reliable braking performance.
TE CONNECTIVITY HCH215J220RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W depending on model
- Maximum Temperature: 320°C to 375°C
- Resistance Range: 680Ω to 2200Ω
- Ingress Protection: IP54
- Insulation Resistance: >100MΩ at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Resistor Element: Wire Wound
- Body Material: Anodized extruded aluminium
- Lead Length: 300mm, PTFE insulated
- Tolerance: +5%, +10%
- Maximum Working Voltage: 1100V
- Pulse Load Rating (W): up to 7000W for 1s pulses depending on model
- Operating Environment: Load life in vertical orientation, damp heat tested
- Dimensions: Range from 165mm to 335mm length, approx. L1 146-316mm
- Certifications: UL, IEC compliance, IP54 ingress protection
Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH215J220RJ Online
Purchase the TE Connectivity HCH215J220RJ aluminium housed braking resistor online today and benefit from a high-quality, durable component designed for overload power absorption. With IP54 protection, PTFE insulated flying leads, and a wide temperature range up to 375°C, this resistor offers precise performance and excellent environmental resistance. Perfect for industrial drive systems, it provides reliable braking with tested overload cycles, insulation resistance, and load life durability. Order now for fast delivery and optimal system performance.
Buy TE Connectivity HCH215J220RJ aluminium housed braking resistor now and ensure reliable high-power overload handling for your industrial braking systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH215J220RJ?
You can click on the BUY or RFQ button to purchase HCH215J220RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH215J220RJ?
You can download the HCH215J220RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH215J220RJ?
TE CONNECTIVITY
