TE CONNECTIVITY HCH215J33RJ Braking Resistor
The Aluminium Housed Braking Resistor Series HCH provides high power overload capability with IP54 protection and PTFE insulated flying leads for flexible connection. Designed for braking applications, these wire-wound resistors are rated for high continuous power and can absorb overload pulses, making them ideal for drive systems and industrial braking. Available in various power ratings from 200W to 500W with temperature limits up to 375°C, they feature anodized aluminium bodies, withstand high voltage, and ensure durability in demanding environments.
TE CONNECTIVITY HCH215J33RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680 to 2200 ohms
- Overload Pulse Load (W) @40°C with 120s cycle: 6.8W to 220W
- Ingress Protection: IP54
- Body Material: Anodized extruded aluminium profile
- Resistor Element: Wire wound
- Insulation Resistance: >100 MΩ at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Lead Length: 300mm PTFE insulated, flying leads
- Rated Continuous Working Voltage: 1100V
- Temperature Coefficient: +200ppm/°C
- Dimensions (L, L1): Varies by model: HCH165 (165mm, 146mm), HCH215 (215mm, 196mm), HCH265 (265mm, 246mm), HCH335 (335mm, 316mm)
- Certifications: Complies with relevant safety standards

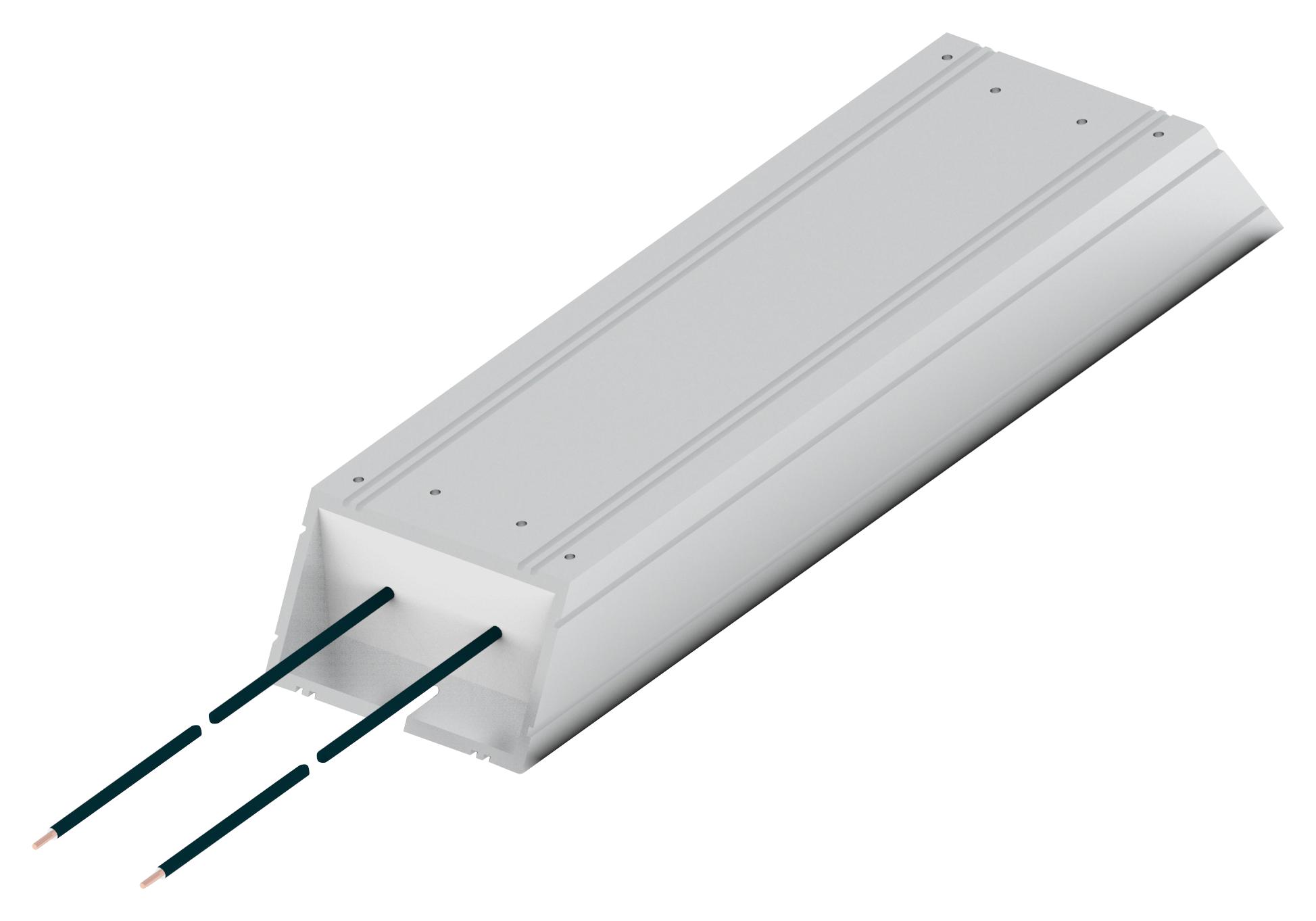

Buy the TE Series Braking Resistor: HCH215 300W
Purchase the TE Connectivity HCH215J33RJ aluminium housed braking resistor online today to ensure your industrial drive systems and braking applications benefit from high power overload capacity. This resistor features PTFE insulated flying leads for flexible connection, IP54 ingress protection, and a durable anodized aluminium body. With ratings up to 300W and temperatures reaching 330°C, it provides reliable performance in demanding environments. Order now for efficient, long-lasting braking solutions designed for high overload pulses and precise resistance control.
Get TE Connectivity HCH215J33RJ today—built for high power loads, durability, and reliable industrial braking performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH215J33RJ?
You can click on the BUY or RFQ button to purchase HCH215J33RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH215J33RJ?
You can download the HCH215J33RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH215J33RJ?
TE CONNECTIVITY
