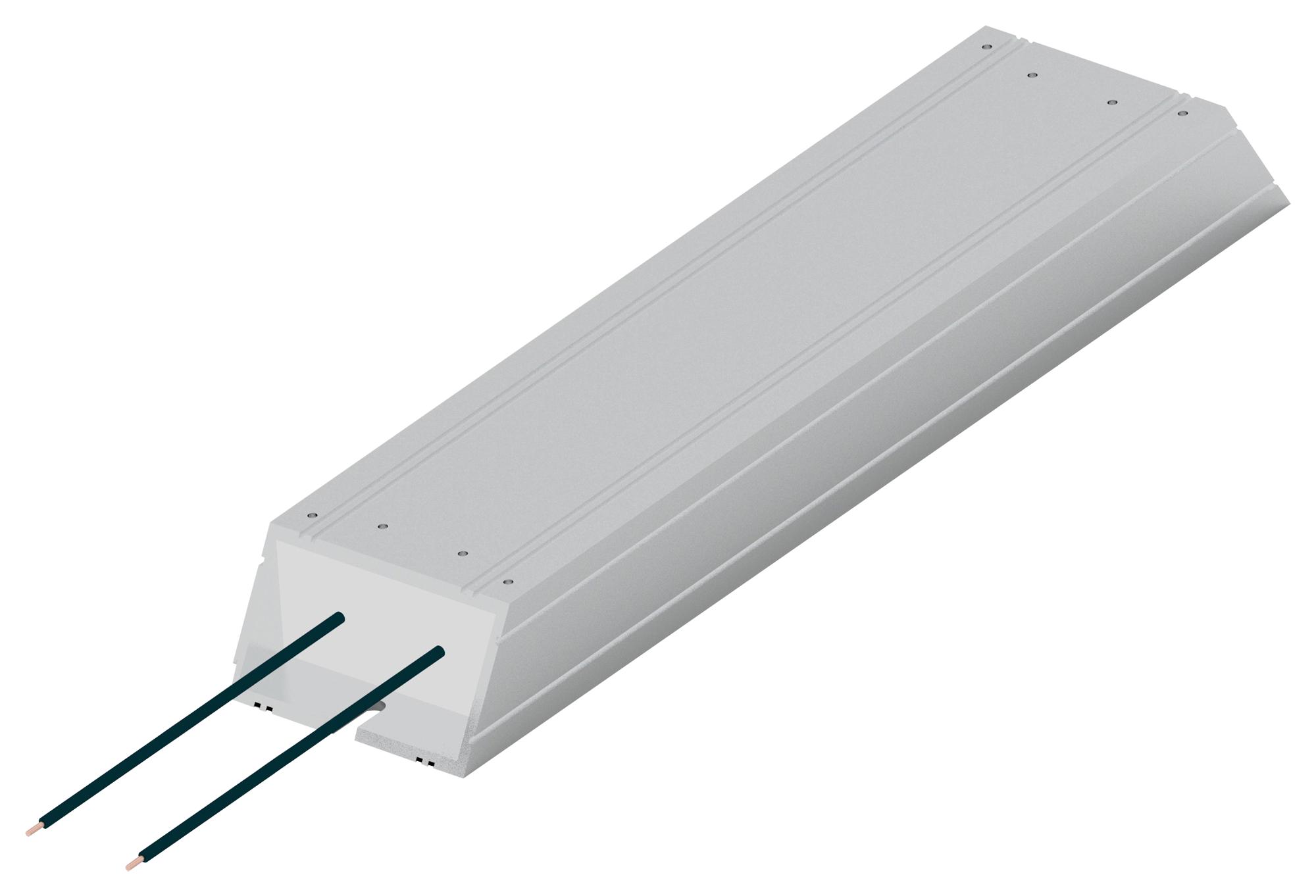

TE CONNECTIVITY HCH265J82RJ Braking Resistor
The Aluminium Housed Braking Resistor Series are high-power wire wound resistors designed for braking applications in drive systems. They feature IP54 ingress protection, PTFE insulated flying leads for flexible connections, and are capable of absorbing overload power during dynamic braking cycles. Suitable for various power ratings from 200W to 500W, these resistors have a maximum operating temperature up to 375°C and are tested for long-term load life, insulation resistance exceeding 100MΩ at 1000V, and dielectric strength of 3500VAC. Their anodized aluminium profile body ensures durability and efficient heat dissipation, making them ideal for industrial control and energy management systems.
TE CONNECTIVITY HCH265J82RJ Braking Resistor Specifications:
- Power Ratings: 200W (HCH165), 300W (HCH215), 400W (HCH265), 500W (HCH335) at 40°C.
- Maximum Temperatures: 320°C to 375°C depending on series.
- Resistance Range: 680Ω to 2200Ω, higher/lower values available on request.
- Overload Capability: Tested for overloads up to 7000W (HCH165), 16200W (HCH265), and 23000W (HCH335) during pulse cycles.
- Pulse Load Ratings: 1s, 5s, and 40s pulses with duty cycles up to 33.3%.
- Environmental Testing: Load life in vertical position, damp heat resistance at 95% humidity over 56 days, insulation resistance >100MΩ, dielectric strength 3500VAC, ingress protection IP54.
- Physical Dimensions: Lengths vary between 165mm and 335mm with respective profiles; PTFE insulated cables 300mm long.
- Construction: Anodized extruded aluminium profile with wire wound resistive element, PTFE insulated flying leads, rated for continuous operation and overload conditions.
