TE CONNECTIVITY HCH335J33RJ Braking Resistor
The aluminium housed braking resistor series offers high power overload capability with IP54 ingress protection and PTFE insulated flying leads for flexible connections. Designed for braking applications, these resistors feature wire wound elements within anodized aluminium profiles, rated for duty cycles across various pulse loads. Available in multiple power ratings from 200W to 500W, they can withstand maximum temperatures up to 375°C, with resistance ranges from 102 to 2200 ohms. Suitable for drive systems, they undergo rigorous testing for load life, humidity, and ingress resistance, ensuring durability and performance in industrial environments.
TE CONNECTIVITY HCH335J33RJ Braking Resistor Specifications:
- Power Ratings: 200W, 300W, 400W, 500W at 40°C
- Maximum Temperatures: 320°C to 375°C depending on model
- Resistance Range: 102Ω to 2200Ω
- Dimensions: Length varies from 165mm to 335mm, with L1 measurements from 146mm to 316mm
- Ingress Protection: IP54
- Insulation Resistance: >100MQ at 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Power Pulse Load Capability: Up to 23,000W for 1s pulses in larger models
- Overload Testing: Cycles of overload power for 1, 5, or 40 seconds, repeated 10,000 times
- Operating Voltage: Maximum 1100V, with rated continuous working voltage depending on model
- Construction: Wire wound, aluminium profile body, anodized surface
- Environmental Resistance: Load life operation, damp heat, dust, and moisture ingress tested

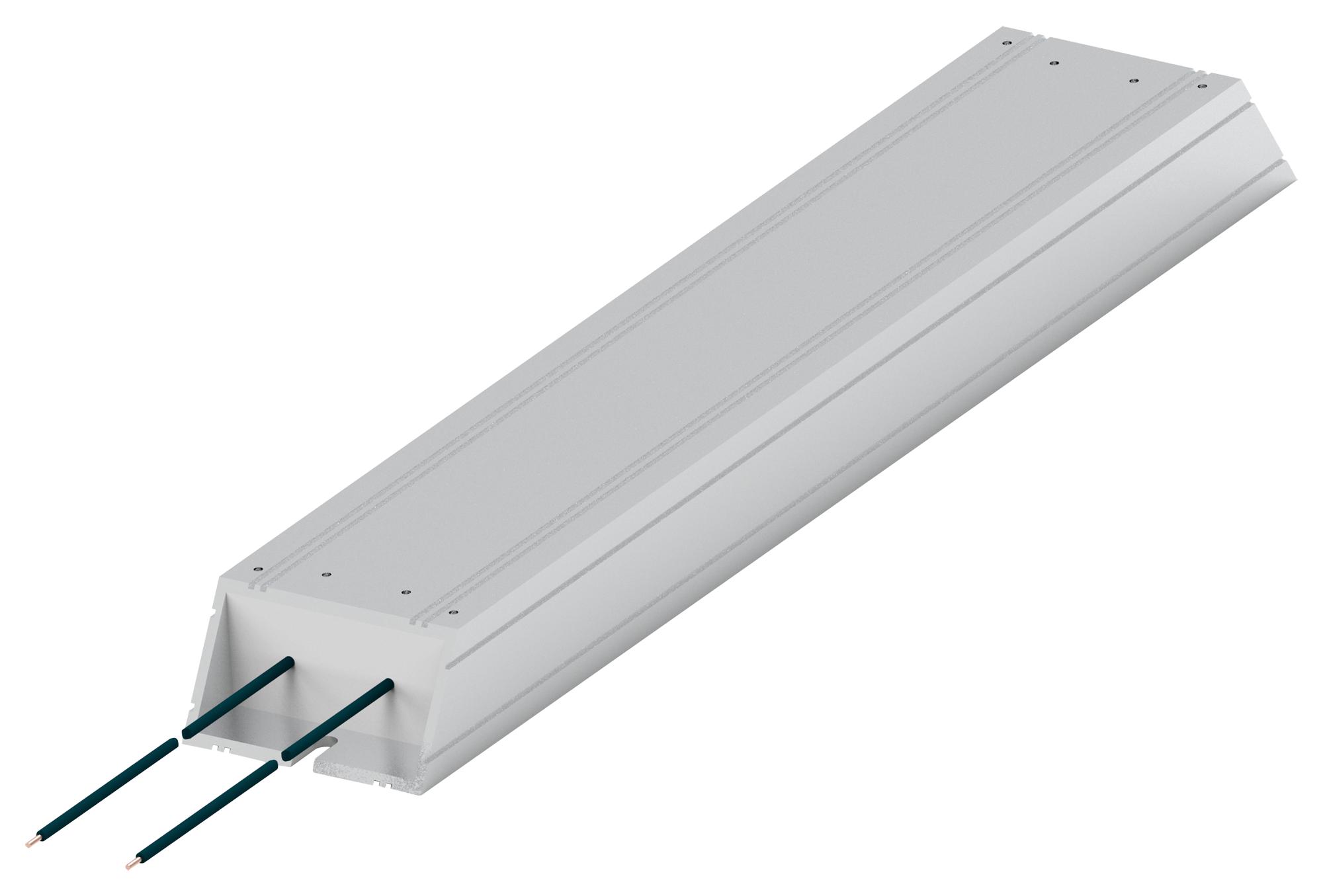

Buy the TE Series Braking Resistor: HCH335 500W
Enhance your industrial drive systems with the TE Series aluminium housed braking resistor. Offering high overload capacity, IP54 protection, and PTFE insulated flying leads, this resistor ensures reliable performance under demanding conditions. With ratings from 200W to 500W and resistance values up to 2200 ohms, it supports applications requiring robust braking solutions. Rugged construction, tested for load life, humidity, and ingress resistance, guarantees durability. Purchase online today to improve system safety and efficiency with this high-quality, easy-to-install resistor.
Order your TE Series aluminium housed braking resistor HCH335 500W today and ensure your drive systems operate with reliable, high-capacity braking performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J33RJ?
You can click on the BUY or RFQ button to purchase HCH335J33RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J33RJ?
You can download the HCH335J33RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J33RJ?
TE CONNECTIVITY
