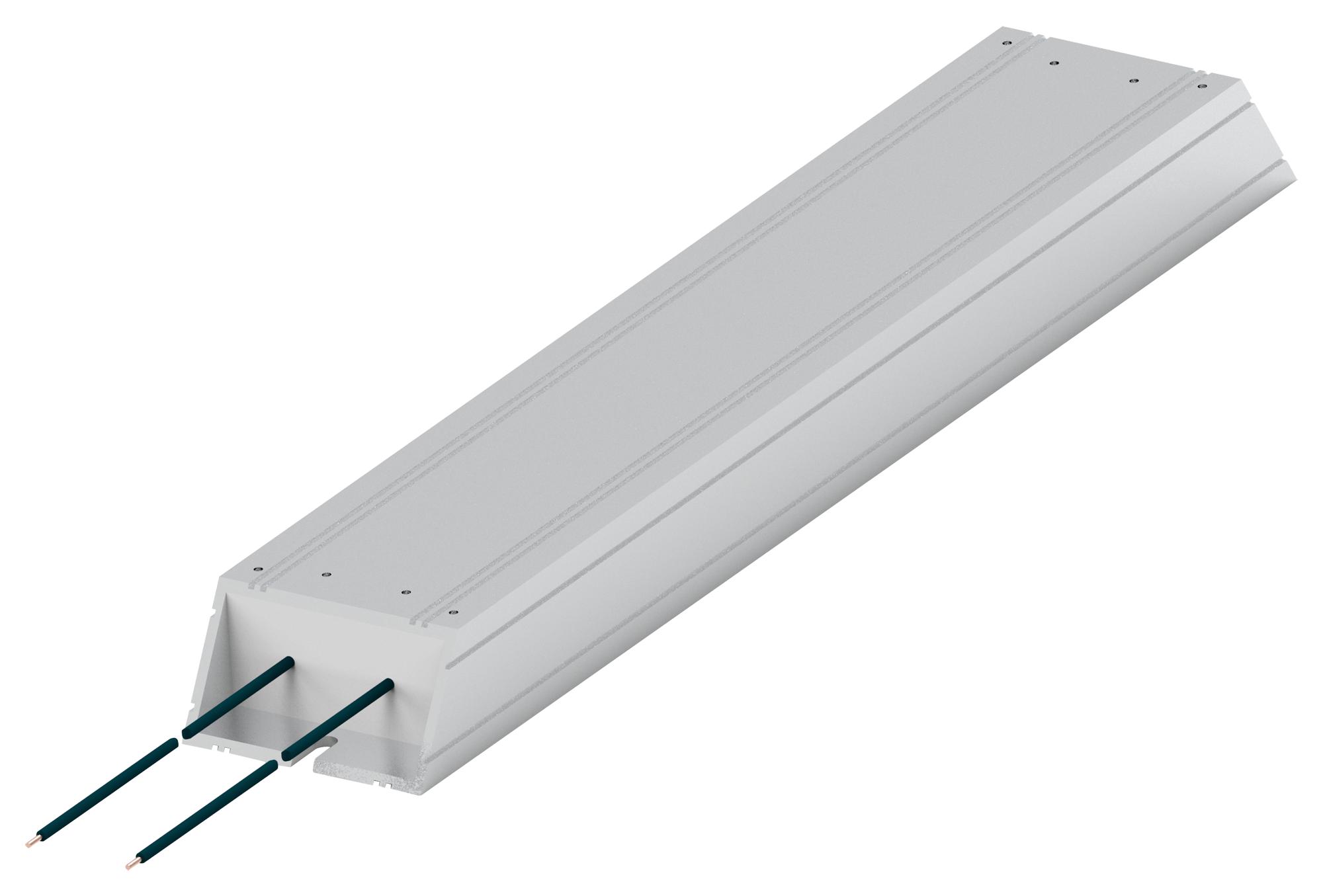

TE CONNECTIVITY HCH335J47RJ Braking Resistor
The Aluminium Housed Braking Resistor is designed for high power overload absorption in braking applications. It features a robust anodized aluminium body, PTFE insulated flying leads, and IP54 ingress protection. With power ratings ranging from 200W to 500W and temperature capabilities up to 375°C, these resistors are tested for overload cycles, impedance, and environmental resilience. Ideal for drive systems requiring durable, reliable braking components, they comply with industry standards for insulation resistance and dielectric strength, ensuring long-term operational stability in industrial environments.
TE CONNECTIVITY HCH335J47RJ Braking Resistor Specifications:
- Power Ratings: 200W to 500W at 40°C
- Maximum Temperature: 375°C
- Resistance Range: 680 to 2200 ohms
- Input Voltage: Max 1100V
- Insulation Resistance: >100MΩ @ 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Ingress Protection: IP54
- Resistor Element: Wire Wound
- Resistor Body: Anodized extruded aluminium profile
- Flying Leads: 300mm PTFE insulated, 1000V, 200°C
- Environmental Tests: Load life, damp heat, insulation resistance, dielectric strength
- Dimensions: HCH165 165mm, HCH215 215mm, HCH265 265mm, HCH335 335mm; Length L varies accordingly
- Packaging: Individually boxed, marked with type, resistance, tolerance, and batch
- Connections: Flying leads or specified connection types
Buy the TE Series HCH Braking Resistor: HCH335J47RJ
Purchase the TE Series HCH335J47RJ aluminium housed braking resistor online today and enhance your drive system's stopping power. Featuring a high power rating of 500W, temperature resistance up to 375°C, and durable IP54 protection, this resistor ensures reliable overload absorption essential for industrial braking applications. The wire wound design with PTFE insulated flying leads offers flexibility and safety. Easy to install and tested for environmental resilience, this high-quality resistor provides long-lasting, dependable operation in demanding manufacturing environments. Buy now and optimize your braking system for peak performance and safety.
Order your TE Series HCH335J47RJ aluminium housed braking resistor today and ensure reliable high-power braking performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J47RJ?
You can click on the BUY or RFQ button to purchase HCH335J47RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J47RJ?
You can download the HCH335J47RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J47RJ?
TE CONNECTIVITY
