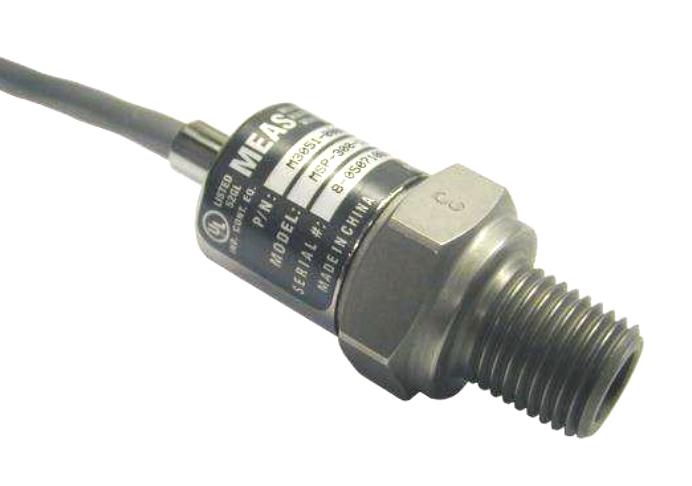

TE CONNECTIVITY M304100000501KPG Pressure Transducer
The MSP300 pressure transducer from TE's Microfused line provides reliable liquid and gas pressure measurement in industrial applications. Constructed from durable 17-4PH or 316L stainless steel with a leak-proof 1/4 NPT sealed system, it handles media like contaminated water, steam, and mildly corrosive fluids. Employing proprietary Microfused technology, it offers stable performance with excellent media compatibility. Suitable for OEMs, it features analog and digital outputs, high accuracy, and robust construction for demanding environments, making it ideal for hydraulic, pneumatic, and medical gas pressure monitoring.
TE CONNECTIVITY M304100000501KPG Pressure Transducer Specifications:
- Pressure Range: 0 to 15k psi
- Output: 14-Bit Digital or 0-50mV, 0-100mV, 0.5-4.5V, 1-5V, 4-20mA (analog outputs)
- Supply Voltage: 3.3V (digital), 5V (analog)
- Temperature Range: -20°C to +85°C (operating), -40°C to +85°C (storage)
- Material: 17-4PH or 316L stainless steel
- Pressure Port: 1/4 NPT sealed system
- Accuracy: ±1%Span
- Burst Pressure: 5X Rated
- Proof Pressure: 2X Rated
- Response Time: 1 ms (digital), ~1 ms (analog)
- Long Term Stability: ±0.25%Span/year
- Shock: 50g, 11 ms half sine shock resistance
- Vibration: +20g, MIL-STD-810C compliant
- Wetted Material: Stainless steel for pressure cavity and diaphragm
- Thermal Error: Zero ±2%Span, Span ±2%Span over temperature
- Isolation: 50mA @ 250V from body to leads
- Dimensions: Typical size includes pressure port and electrical connections
Buy the Buy TE MSP300 Pressure Transducer Part Number MSP300 Online
Purchase the TE MSP300 pressure transducer online today to ensure accurate, reliable pressure monitoring across industrial, medical, and OEM applications. Its durable stainless steel construction and proprietary Microfused technology deliver stability and media compatibility for challenging environments. Available with versatile analog and digital outputs, it offers high precision, fast response, and long-term stability. Whether your needs involve hydraulic systems, gas measurement, or leak detection, this transducer provides robust performance and easy integration, making it the ideal choice for professionals seeking quality and durability.
Buy TE MSP300 pressure transducer now and experience unmatched reliability and performance in industrial pressure measurement.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M304100000501KPG?
You can click on the BUY or RFQ button to purchase M304100000501KPG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M304100000501KPG?
You can download the M304100000501KPG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M304100000501KPG?
TE CONNECTIVITY
