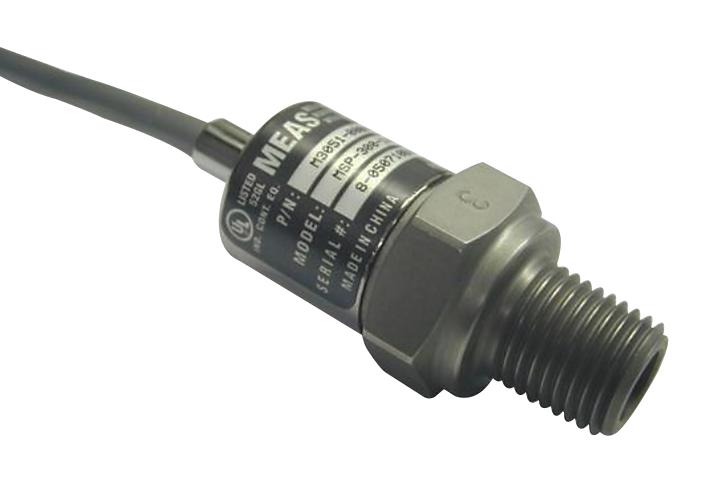

TE CONNECTIVITY M3041000005500PG Pressure Transducer
The MSP300 pressure transducer from TE's Microfused line offers reliable liquid and gas pressure measurement, even for challenging media like contaminated water, steam, and mildly corrosive fluids. It features one-piece stainless steel construction with options for 17-4PH or 316L steel, providing durability and leak-proof sealing through a 1/4 NPT pipe thread. Employing TE's proprietary microfused silicon piezoresistive technology, it ensures media compatibility, stability, and accuracy, making it suitable for industrial OEM applications in hydraulic, pneumatic, medical gases, and energy systems, with customizable options for diverse needs.
TE CONNECTIVITY M3041000005500PG Pressure Transducer Specifications:
- Construction: One-piece stainless steel, 17-4PH or 316L
- Range: 0 to 1000 psi, 0 to 7000 kPa, various standard options
- Output: Analog 0-50mV, 0-100mV, 0.5-4.5V, 1-5V, 4-20mA; Digital options: SPI, I2C
- Supply Voltage: 5V for analog, 3.3V for digital
- Accuracy: ±1% span (combined non-linearity, hysteresis, repeatability)
- Burst Pressure: 2x rated pressure
- Proof Pressure: Up to 1 million psi, depending on range
- Temperature Range: -40°C to +85°C, compensated; -40°C to +85°C storage
- Materials: 17-4PH or 316L stainless steel, BUNA-N seal
- Dimensions: Thread sizes vary; includes 1/4 NPT, BSPP, UNF, BSPT options
- Response Time: 1 ms for analog, typical; digital response varies
- Shock & Vibration: 50g shock, 20g vibration
- Certifications: MIL-STD-202G, IEC 61010
- Applications: Hydraulic/pneumatic systems, medical gas pressure, leak detection, energy management
Buy the TE Series MSP300 Pressure Transducer: M3041000005500PG
Purchase the TE MSP300 pressure transducer online today to ensure precise and reliable pressure measurements in your industrial, medical, or energy applications. Crafted with durable stainless steel construction and employing innovative microfused silicon piezoresistive technology, this sensor offers high accuracy, stability, and versatile options for analog and digital output signals. Its customizable features, leak-proof sealing, and broad pressure ranges make it an indispensable component for OEMs in hydraulic, pneumatic, leak detection, and energy systems. Get yours now to enhance your system’s performance with dependable pressure sensing.
Order your TE Series MSP300 pressure transducer today and give your industrial, medical, or energy projects the dependable, high-accuracy measurement they deserve.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M3041000005500PG?
You can click on the BUY or RFQ button to purchase M3041000005500PG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M3041000005500PG?
You can download the M3041000005500PG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M3041000005500PG?
TE CONNECTIVITY
