TE CONNECTIVITY M325600000E010BG Pressure Transducer
The M3200 pressure transducer features one-piece stainless steel construction with digital pressure and temperature output options, including analog mV/Amplified output. Crafted from 17-4PH stainless steel and weatherproof rated IP67, it is suitable for liquid and gas pressure measurement in challenging environments like contaminated water, steam, and corrosive fluids. Utilizing TE’s proprietary Microfused technology, it offers high stability and durability, making it ideal for industrial, OEM, and automotive applications such as pumps, compressors, hydraulic systems, and leak detection. Standard pressures range from 0 to 10,000 psi, with accuracy of 0.28%, and it meets various international safety standards.
TE CONNECTIVITY M325600000E010BG Pressure Transducer Specifications:
- Material: 17-4PH Stainless Steel
- Pressure Range: 0 to 10,000 psi (0 to 700 bar)
- Accuracy: 0.28% combined linearity, hysteresis & repeatability
- Zero Offset: 0.5% F.S.
- Total Error Band: 1.5% F.S.
- Temperature Range: -40°C to 125°C
- Output Options: 14-Bit Digital (pressure & temperature), Analog mV/Amplified
- Housing Rating: IP67
- Sealing: All-metal leak-proof system with 1/4 NPT thread
- Response Time: 3 ms (digital), <2 ms (analog)
- Shock Resistance: 50g, MIL-STD-202G
- Vibration Resistance: 20g, MIL-STD-810C
- Long Term Stability: 0.25% span/year
- Wetted Material: 17-4PH Stainless Steel
- Power Supply: 5V for digital, 0.5-30V for analog
- CE, RoHS, RoHS compliance
- Leak-proof design suitable for contaminated fluids

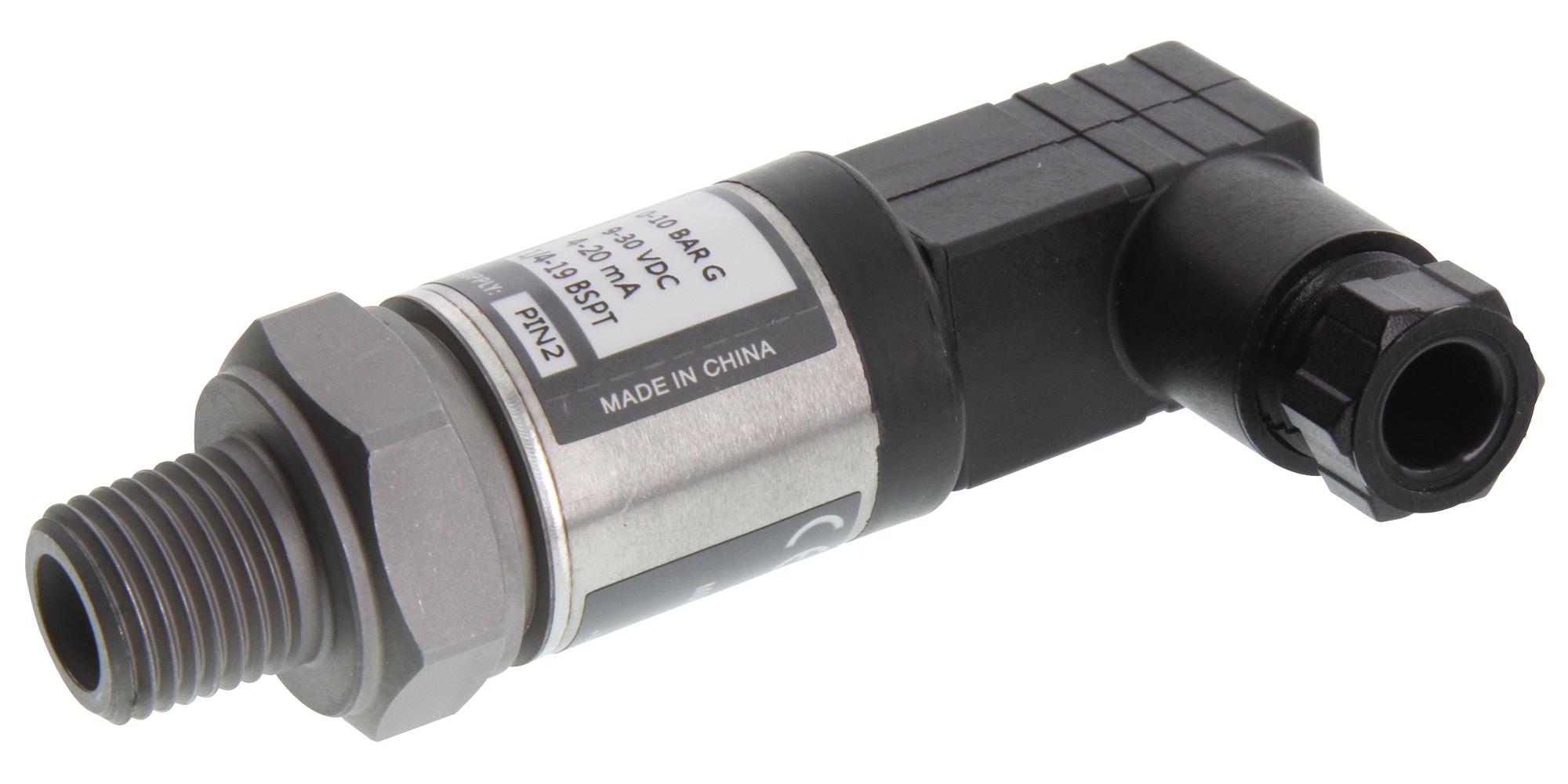

Buy the TE-Connecteivity Series M3200 Digital Pressure Transducer Part Number M325600000E010BG
Discover the TE M3200 pressure transducer, engineered for industrial and OEM applications. Its stainless steel body ensures durability in harsh environments, while digital and analog outputs offer versatile integration. Rated IP67, it withstands water, moisture, and corrosive media. With a measurement range up to 10,000 psi and accuracy of 0.28%, this sensor is perfect for pumps, compressors, hydraulic systems, leak detection, and more. Easy to install and maintain, it guarantees reliable performance across diverse demanding industries.
Buy TE M3200 pressure transducer now and experience unmatched durability, precise measurement, and IP67 weatherproofing for your industrial needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325600000E010BG?
You can click on the BUY or RFQ button to purchase M325600000E010BG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325600000E010BG?
You can download the M325600000E010BG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325600000E010BG?
TE CONNECTIVITY
