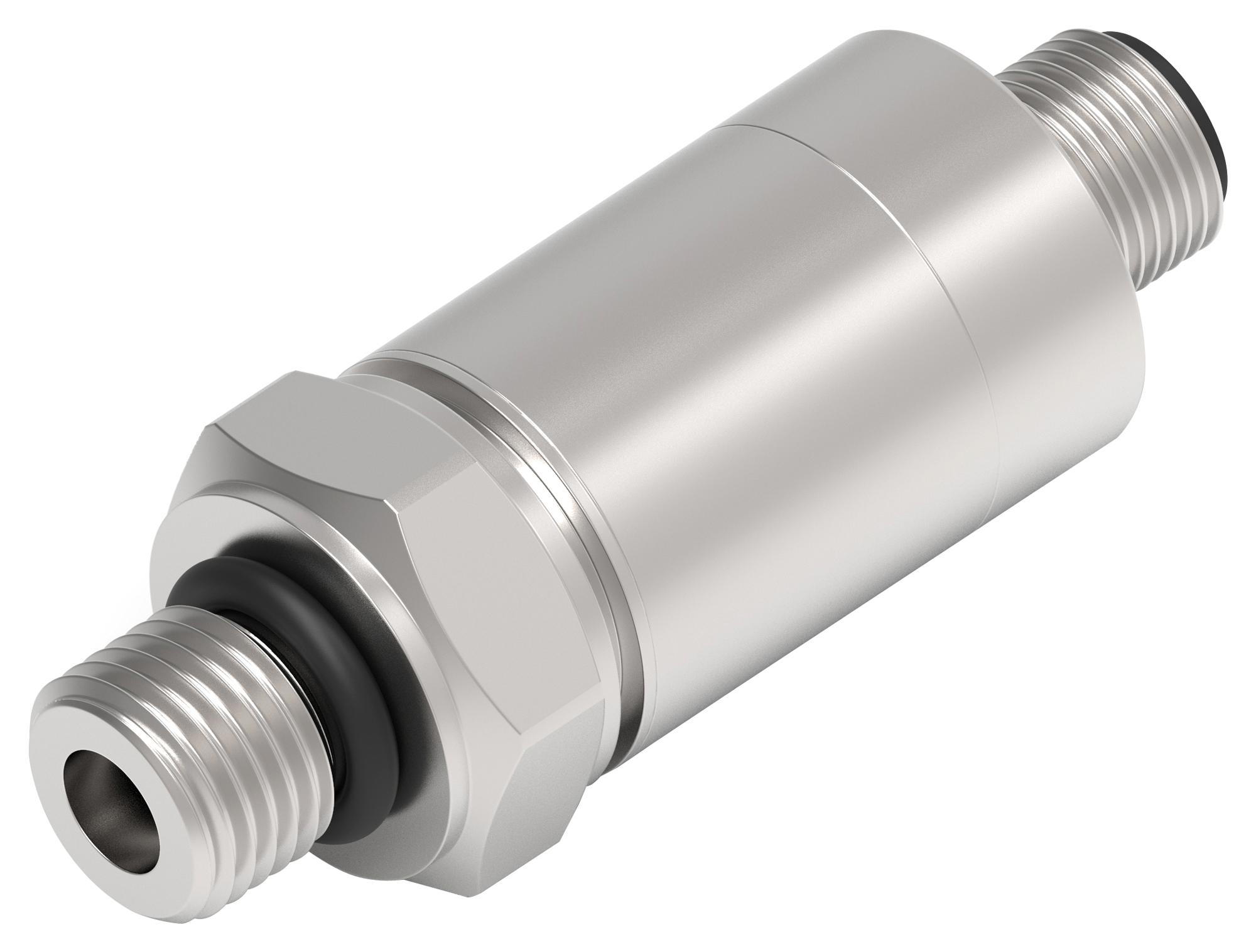

TE CONNECTIVITY M325D01000B300BG Pressure Transducer
The M3200 pressure transducer from TE's Microfused line is designed for precise measurement of liquid and gas pressures, including challenging media like contaminated water, steam, and mildly corrosive fluids. Constructed from durable 17-4PH stainless steel with a 1/4 NPT leak-proof seal, it employs proprietary Microfused silicon piezoresistive strain gages fused with high-temperature glass, ensuring media compatibility and sensor stability. Suitable for industrial OEM applications, the transducer offers both digital and analog outputs, weatherproof protection, and various pressure ranges up to 10,000 psi, making it ideal for pumps, energy, medical gases, and leak detection systems.
TE CONNECTIVITY M325D01000B300BG Pressure Transducer Specifications:
- Construction: One piece 17-4PH stainless steel
- Pressure Range: 0 to 100 psi to 0 to 10,000 psi (7-700 bar)
- Outputs: 14-bit digital (pressure and temperature), analog (V/mA)
- Accuracy: 0.28% total error band, 0.5% zero offset
- Temperature Range: Operating -40°C to 125°C, compensated -20°C to 85°C
- Sealing: 1/4 NPT leak-proof metal seal, IP67 weatherproof rating
- Response Time: 3ms (digital), <2ms (analog)
- Wetted Material: 17-4PH stainless steel
- Shock/Vibration: 50g shock, 420g vibration (MIL-STD-810C)
- Power Supply: 3.3V DC (digital), 4-20mA, 0-5V, 0-10V (analog)
- Long-Term Stability: 0.25% span per year
- Certifications: CE, UL, IEC standards for immunity and emissions
Buy the TE Series M3200 Pressure Transducer: M325D01000B300BG
Discover the TE M3200 pressure transducer, engineered for precise liquid and gas pressure measurement in industrial environments. Manufactured from durable 17-4PH stainless steel, it features both digital and analog outputs, providing versatile integration options. Its robust construction delivers excellent stability, accuracy within 0.28%, and weatherproof protection, suitable for applications like pumps, energy management, medical gas monitoring, and leak detection. Order online now to enhance your system’s performance with this reliable, high-performance pressure sensor designed for demanding industrial and OEM applications.
Order your TE Series M3200 pressure transducer today and ensure reliable, high-accuracy pressure measurement for your industrial and OEM needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325D01000B300BG?
You can click on the BUY or RFQ button to purchase M325D01000B300BG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325D01000B300BG?
You can download the M325D01000B300BG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325D01000B300BG?
TE CONNECTIVITY
