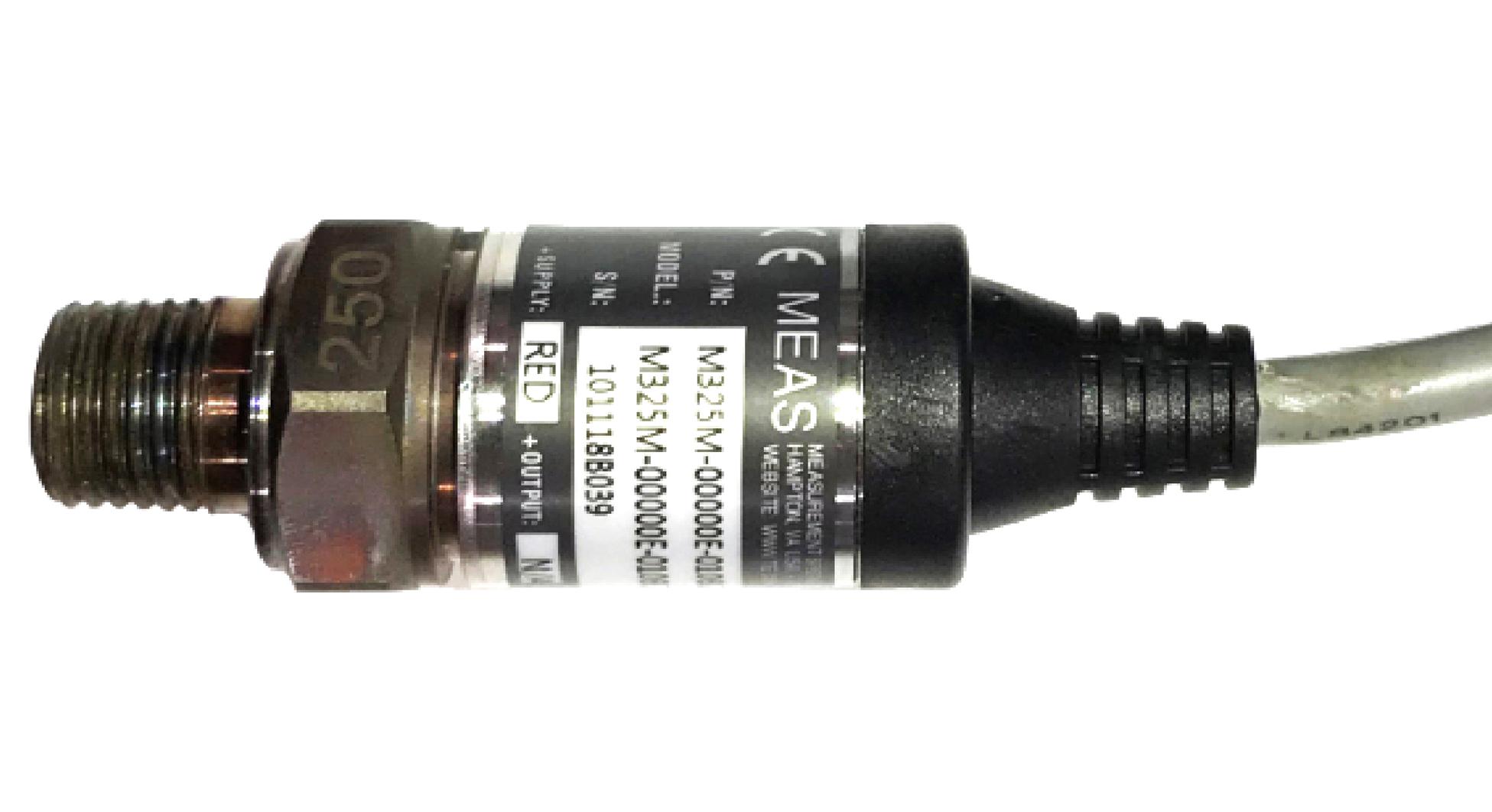

TE CONNECTIVITY M32JM00000E010BG Pressure Transducer
The M3200 pressure transducer features stainless steel construction, digital and analog outputs, and CE compliance, making it ideal for measuring liquid or gas pressure in industrial, hydraulic, medical, and energy applications. Its robust design includes a machined 17-4PH stainless steel cavity with a leak-proof 1/4 NPT port and proprietary Microfused technology for stability and durability. Suitable for challenging media such as contaminated water and mildly corrosive fluids, it offers precise measurements with minimal error, weatherproof ratings, and a wide temperature range, making it a reliable choice for OEMs and industrial systems.
TE CONNECTIVITY M32JM00000E010BG Pressure Transducer Specifications:
- Material: 17-4PH Stainless Steel
- Pressure Range: 0 to 100 psi (0 to 7 bar) up to 0 to 10,000 psi (700 bar)
- Outputs: 14-bit digital, analog V/mA
- Accuracy: 0.28% combined linearity, hysteresis & repeatability
- Zero Offset: 0.5%F.S. @ 25°C
- Temperature Range: -40°C to 125°C
- Response Time: <2ms for mV, <3ms for digital output
- Weatherproof Rating: IP67 (cable & M12), IP66 (Packard), IP65 (Form C)
- Rated Pressure Cycles: 1,000,000
- Burst Pressure: 5x rated pressure
- Long Term Stability: 0.25% span/year
- Wetted Material: 17-4PH Stainless Steel
- Shock: 50g, 11ms Half Sine
- Vibration: +20g, MIL-STD-810C
- CE and EMI compliance: EN 55022, IEC 61000-4 series
Buy the TE M3200 – Reliable Pressure for Industrial Applications
Experience the reliable performance of the TE M3200 pressure transducer. Crafted from durable stainless steel, it offers precise digital and analog pressure measurements suitable for industrial, hydraulic, and medical applications. With CE certification, weatherproof ratings, and wide temperature operation, this sensor ensures stability and longevity even in challenging media like contaminated water and corrosive fluids. Perfect for OEMs and high-volume production, it combines robustness with accuracy, enabling efficient monitoring and control systems. Purchase online today for dependable pressure measurement solutions.
Get TE M3200 pressure transducer today—designed for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M32JM00000E010BG?
You can click on the BUY or RFQ button to purchase M32JM00000E010BG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M32JM00000E010BG?
You can download the M32JM00000E010BG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M32JM00000E010BG?
TE CONNECTIVITY
