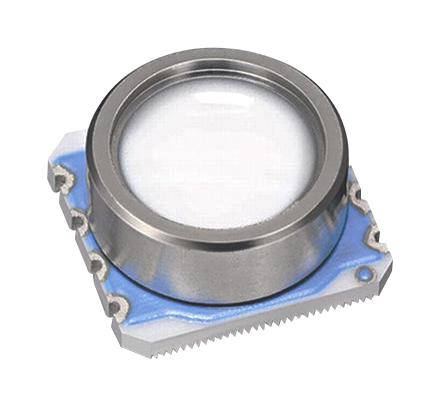

TE CONNECTIVITY MS580301BA0100 Digital Pressure Sensor
The MS5803-01BA is a high-resolution, digital pressure sensor module with integrated temperature measurement, suitable for altimeter, variometer, and outdoor water-resistant applications. It features a 24-bit AZ ADC, low power consumption, and multiple communication protocols (SPI and I²C). The module offers excellent long-term stability, hermetic sealing, and anti-magnetic stainless steel cap, making it ideal for outdoor and water-resistant devices. It has a wide operating range of 10 to 1300 mbar and temperature from -40°C to +85°C, with auto-zero calibration for precise measurements.
TE CONNECTIVITY MS580301BA0100 Digital Pressure Sensor Specifications:
- Pressure Range: 10 to 1300 mbar
- Temperature Range: -40°C to +85°C
- Resolution: 24-bit ADC with various oversampling ratios (256 to 4096)
- Response Time: around 1.5 ms at OSR 4096
- Supply Voltage: 1.8 to 3.6 V
- Power Consumption: Standby < 0.15 µA, active current up to 3.2 mA
- Dimensions: Compact module with hermetic sealing and stainless steel cap
- Calibration: Factory calibrated coefficients stored in PROM
- Interface: SPI (Mode 0, 3) and I²C (protocol select pin)
- Operates in water-resistant and outdoor environments, sealed with O-rings, robust design
- Long term stability: ±0.012 mbar per year at OSR 4096
- Built-in second-order temperature compensation algorithms for high accuracy
- Autocalibration and autozero features ensure high measurement precision under varying conditions
- Designed for mobile altimeter systems, outdoor sports, dataloggers, and high endurance applications
Buy the Buy TE Connectivity MS5803-01BA Part Number MS580301BA0100 Online
Purchase the TE Connectivity MS5803-01BA digital pressure sensor module online today. This compact, high-resolution sensor provides accurate pressure and temperature readings for outdoor, water-resistant designs. Perfect for altimeters, variometers, dataloggers, and mobile applications, it features low power consumption, hermetic sealing, and integrated calibration. Its versatile interface supports SPI and I²C protocols, making integration seamless. Ensure reliability and precision in your projects—order now to enhance your outdoor and high-endurance measurement systems with this durable module.
Get TE Connectivity MS5803-01BA today—built for precise pressure and temperature measurement with outdoor water resistance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY MS580301BA0100?
You can click on the BUY or RFQ button to purchase MS580301BA0100 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part MS580301BA0100?
You can download the MS580301BA0100 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of MS580301BA0100?
TE CONNECTIVITY
