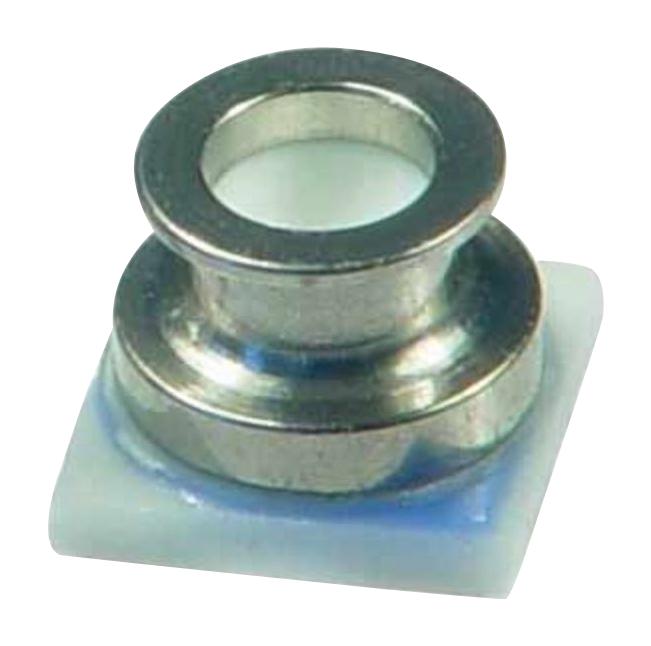

TE CONNECTIVITY MS583702BA0150 Pressure Sensor
The MS5837-02BA is an ultra-small gel-filled pressure and temperature sensor with a stainless steel cap, optimized for altimeter and barometer applications in consumer devices such as wearables, fitness trackers, and multisport watches. This MEMS based sensor features high-linearity pressure sensing, 24-bit digital I2C output, and an altitude resolution of 13 cm. Its ceramic-metal package, robustness against harsh environments, and integrated temperature measurement enable accurate, high-resolution readings in compact, waterproof designs suitable for autonomous vehicles and outdoor applications.
TE CONNECTIVITY MS583702BA0150 Pressure Sensor Specifications:
- Package Dimensions: 3.3 x 3.3 x 2.75 mm
- Operating Pressure Range: 300 to 1,200 mbar, optional extended up to 2,000 mbar
- Operating Temperature: -20°C to +85°C
- Supply Voltage: 1.5 to 3.6 V
- Power Consumption: 0.6 pA standby, 1.25 mA during conversion
- Pressure Resolution: 13 cm altitude resolution, 24-bit ADC
- Digital Interface: I2C
- Sealing: Watertight with 1.8 x 0.8 mm O-ring
- Materials: Ceramic-metal package, stainless steel cap
- Features: Chlorine resistant option, shielded version available
- Additional: Low power consumption, integrated temperature sensor, suitable for harsh environments
Buy the TE Connectivity MS5837-02BA Ultra-small Pressure Sensor – Reliable Altimeter for Industrial Applications
Enhance your device with the MS5837-02BA pressure and temperature sensor from TE Connectivity. This compact, waterproof module offers high accuracy, low power consumption, and digital I2C interface, perfect for wearables, altimeters, and autonomous systems. Its ceramic-metal package ensures durability in harsh environments, while integrated temperature measurement simplifies design. Easy to mount and seal with O-rings, it provides precise readings for consumer, industrial, and automotive applications. Buy online today for reliable performance in your next project.
Buy TE Connectivity MS5837-02BA now and experience unmatched reliability and high-resolution altitude and pressure measurements in your consumer and industrial devices.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY MS583702BA0150?
You can click on the BUY or RFQ button to purchase MS583702BA0150 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part MS583702BA0150?
You can download the MS583702BA0150 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of MS583702BA0150?
TE CONNECTIVITY
