TE CONNECTIVITY RN73C2A221RBTDF Thin Film Resistor
The RN73 series are high-precision thin film chip resistors designed for high stability and accuracy in electronic circuits. They feature resistance values restricted to E96 and E24 value grids, with TCRs as low as 5ppm/°C and tolerances down to 0.01%. Constructed with sputtered layers for excellent performance, these resistors are suitable for communications, industrial controls, instrumentation, and medical applications. Available in multiple sizes including 0402, 0603, 0805, 1206, 1210, 2010, and 2512, they offer rated powers from 0.063W to 0.5W, with operating temperature ranges from -55°C to +155°C and high insulation resistance. They are produced with electroplated matte Sn terminals for reliability.
TE CONNECTIVITY RN73C2A221RBTDF Thin Film Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @ 70°C: 0.063W to 0.5W depending on size
- Resistance Range: 20Ω to 1.5MΩ (varies by size)
- Resistance Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Temperature Coefficient (TCR): 5ppm/°C to 10ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Max Operating Voltage: 25V to 150V (depends on size)
- Max Overload Voltage: 50V to 300V (depends on size)
- Insulation Resistance: >59999 MΩ (dry min.)
- Stability: 0.05%
- Construction: sputtered layers on alumina substrate with Ag and NiCr electrodes
- Terminal Finish: electroplated matte Sn
- Solder Profile: max 3 reflows at 260°C, peak 265°C

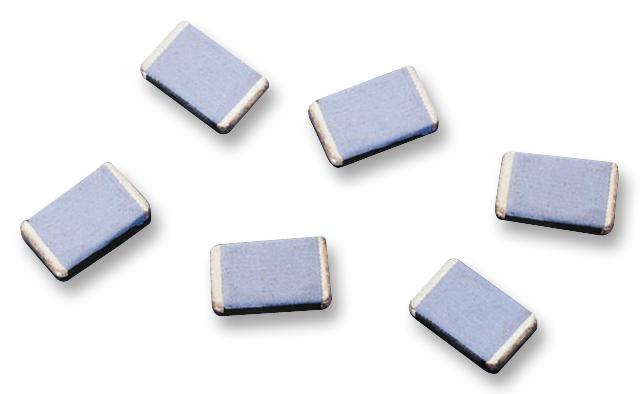

Buy the Buy Connectivity Thin Film Precision Resistors Part Number RN73C2A221RBTDF Online
Order the Connectivity RN73C2A221RBTDF thin film resistor online today. These high stability, low TCR resistors are ideal for precision applications such as communications, industrial controls, instrumentation, and medical devices. Featuring resistance values restricted to E96 and E24 value grids, they offer excellent performance with TCRs as low as 5ppm/°C and tolerances to 0.01%. Available in sizes from 0402 to 2512, rated power from 0.063W to 0.5W, operating temperatures up to +155°C, and reliable matte Sn terminals, they ensure optimal performance in demanding environments.
Buy Connectivity RN73C2A221RBTDF high-precision resistor now and experience unmatched stability, accuracy, and reliability for your advanced electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A221RBTDF?
You can click on the BUY or RFQ button to purchase RN73C2A221RBTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A221RBTDF?
You can download the RN73C2A221RBTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A221RBTDF?
TE CONNECTIVITY
