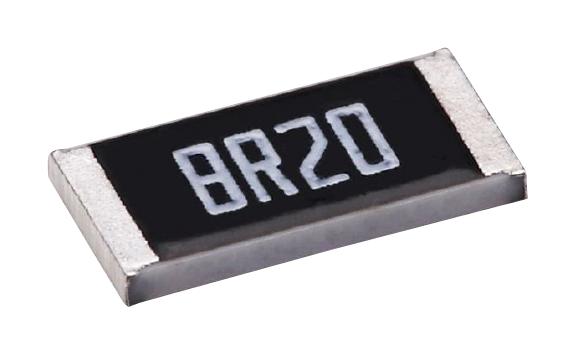

TE CONNECTIVITY RP73PF1E147RBTDF High Power Precision Resistor
The RP73PF1E147RBTDF is a high-precision SMD resistor series designed for demanding applications such as communications, industrial controls, instrumentation, and medical devices. Featuring a tolerance down to 0.05% and a TCR of ±45 ppm/°C, it offers increased power dissipation up to 0.1W for 0402 size and voltage ratings up to 200V. Constructed with sputtered metal film on alumina substrate, these resistors ensure stability, accuracy, and reliable performance in high-temperature environments, ideal for sophisticated electronic circuits.
TE CONNECTIVITY RP73PF1E147RBTDF High Power Precision Resistor Specifications:
- Size: 0402, 0603, 0805, 1206, 1210, 2010, 2512, 1206, 1210, 2010, 2512
- Rated Power: 0.1W (0402), 0.125W (0603), 0.33W (1206, 1210, 2010, 2512), 0.25W (0805)
- Resistance Range: 10R to 1M, 255K, 499K
- Tolerance: ±0.05%, ±1%, ±10%
- Temperature Coefficient (TCR): ±25 ppm/°C or ±50 ppm/°C
- Voltage Ratings: 50V (0402), 75V (0603), 150V (0805), 200V (1206, 1210, 2010, 2512)
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Stability: 0.5%
- Terminals: Electroplated Sn, reliable for high-temperature applications
- Construction: Sputtered metal film on alumina substrate with multilayer protection
- Environmental: MIL-STD-202 tested for thermal shock, humidity, and soldering withstand
- Packaging: Embossed plastic tape for pick-and-place automation
- Application: Suitable for precision circuits in communication, industrial control, instrumentation, and medical devices.
Buy the Buy TE Connectivity RP73PF1E147RBTDF Part Number 147RBTDF Online
Purchase the TE Connectivity RP73PF1E147RBTDF high power precision resistor online today to benefit from industry-leading accuracy, low TCR, and reliable high-voltage performance. Perfect for demanding applications including communications, industrial controls, instrumentation, and medical electronics, this resistor guarantees stability across a wide temperature range. Designed with sputtered metal film technology on alumina substrate, it offers excellent long-term stability and precise resistance values. Simplify your procurement process and ensure project reliability by ordering this high-performance resistor now for swift delivery and consistent quality assurance.
Order your TE Connectivity RP73PF1E147RBTDF high power precision resistor today and ensure your electronic designs achieve maximum accuracy and stability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E147RBTDF?
You can click on the BUY or RFQ button to purchase RP73PF1E147RBTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E147RBTDF?
You can download the RP73PF1E147RBTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E147RBTDF?
TE CONNECTIVITY
