TE CONNECTIVITY RP73PF1E150RBTD High Power Precision Resistor
The RP73PF1E150RBTD is a high-precision thin film SMD resistor series designed for industrial controls, instrumentation, communication, and medical applications. Offering stable performance with a tolerance of 0.05% and a TCR of 20 ppm/°C, it supports power ratings up to 0.25W at 70°C and an operating voltage of 150V. Built on alumina substrate with epoxy overcoat, it features excellent resistance stability, insulation resistance over 1000 MΩ, and robust soldering and environmental resistance, ensuring durability and reliability in demanding environments.
TE CONNECTIVITY RP73PF1E150RBTD High Power Precision Resistor Specifications:
- Physical Dimensions: 0805 size, length 2.00 mm, width 1.25 mm, height 0.55 mm
- Resistance Range: 10Ω to 499kΩ
- Tolerance: ±0.05%, ±1.0% and ±2% options
- Temperature Coefficient of Resistance (TCR): ±20 ppm/°C
- Rated Power: 0.25W at 70°C, derated for higher temperatures
- Max Operating Voltage: 150V for 0805 sizes
- Overload Voltage: 300V, or 2.5 times the rated power voltage
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Environmental Resistance: Meets MIL-STD-202 standards for humidity, thermal shock, and soldering
- Construction: Alumina substrate with NiCr resistor layer, nickel barrier, Ag electrodes, epoxy overcoat
- Packaging: Embossed plastic tape, 180° peel tape for automated surface mounting
- Assembly: Suitable for reflow, wave, and hand soldering with specified profiles

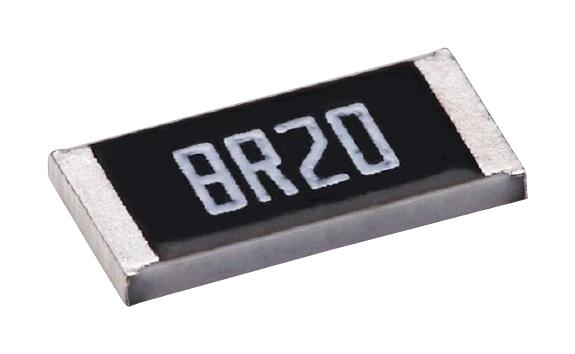

Buy the TE RP73 Series High Power Precision Resistors – Reliable E24 and E96 Series for Industrial Applications
Purchase the TE RP73PF1E150RBTD high power precision resistor online today for reliable performance in industrial, communication, medical, and control applications. This resistor series offers excellent tolerance, high stability, and robust environmental resistance, ensuring durability in demanding conditions. Perfect for power-sensitive circuits requiring stable resistance with ultra-low TCR, suitable for automation, instrumentation, and control systems. Order now to experience premium quality, quick delivery, and support from authorized distributors, enhancing your project's precision and reliability.
Get TE RP73PF1E150RBTD today—built for precision and long-lasting durability in industrial and technological environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E150RBTD?
You can click on the BUY or RFQ button to purchase RP73PF1E150RBTD from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E150RBTD?
You can download the RP73PF1E150RBTD datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E150RBTD?
TE CONNECTIVITY
