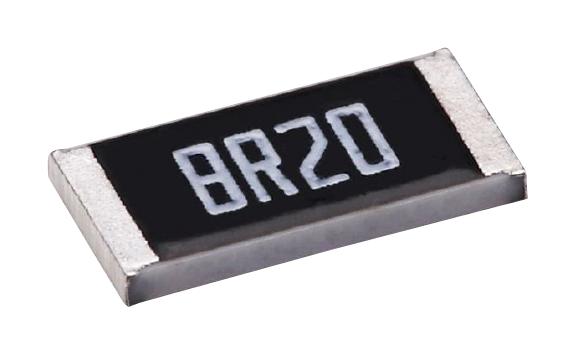

TE CONNECTIVITY RP73PF1E20RBTD High Power Surface-Mount Resistor
The RP73P series are high power, ultra-precise surface-mount resistors designed for demanding industrial, communication, and medical applications. They feature power ratings from 0.1W to 0.33W at 70°C, resistance values ranging from 10Ω to 1MΩ, and temperature coefficients between 25 and 50 ppm/°C. With low tolerances down to 0.05%, high insulation resistance over 1000MΩ, and stability of 0.5%, these resistors deliver excellent performance under thermal cycling, humidity, and mechanical stress. They are suitable for precision circuitry in instrumentation and embedded systems, conforming to MIL-STD-202 testing standards.
TE CONNECTIVITY RP73PF1E20RBTD High Power Surface-Mount Resistor Specifications:
- Physical Sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power: 0.1W (0402), 0.125W (0603), 0.166W (0805), 0.33W (1206/1210), 0.33W (2010), 1.0W (2512)
- Resistance Range: 10Ω to 1MΩ
- Tolerance: 0.05%, 1%, 5%, 10%
- Temperature Coefficient: 25 to 50 ppm/°C
- Maximum Operating Voltage: 50V (0402), 75V (0603), 150V (0805), 200V (1206/1210/2512), 200V (2010)
- Overload Voltage: 100V (0603), 150V (0805), 200V (1206/1210/2512), 300V (1206/1206), 400V (2512)
- Operating Temperature: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Stability: 0.5%
- Material: Alumina substrate with NiCr resistor layer, Ag bottom electrode, Sn external electrode
- Package: Surface-mount with tape and reel packaging compatible with reflow and wave soldering
- Standards & Testing: MIL-STD-202 methods including thermal shock, moisture resistance, solderability, and bending strength
Buy the TE 100R U+2013 Reliable High Power Resistor for Industrial Applications
Order TE high power surface-mount resistors today and ensure superior precision, stability, and durability in your critical industrial, communication, and medical applications. Our resistors deliver minimum tolerances of 0.05%, high insulation resistance over 1000MΩ, and excellent thermal stability across a wide temperature range. With sizes from 0402 to 2512, and power ratings from 0.1W to 1.0W at 70°C, they meet rigorous standards including MIL-STD-202. Rely on TE for quality, consistency, and performance in your electronic designs.
Buy TE high power precision resistor now and experience unmatched reliability and performance for demanding industrial and medical circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E20RBTD?
You can click on the BUY or RFQ button to purchase RP73PF1E20RBTD from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E20RBTD?
You can download the RP73PF1E20RBTD datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E20RBTD?
TE CONNECTIVITY
