TE CONNECTIVITY RP73PF1E26K1BTDF High Power Precision Resistor
The RP73 series SMD high power precision resistors are designed for demanding applications such as communications, industrial controls, instrumentation, and medical devices. Offering high accuracy with tolerance down to 0.05% and TCR as low as 20.05 ppm/°C, these resistors provide reliable performance with power ratings up to 1.0W and working voltages up to 200V. Manufactured with sputtered metal film on high-grade alumina, they feature precise, uniform dimensions for easy placement and excellent thermal stability, making them ideal for high-current, high-voltage, and precision circuits.
TE CONNECTIVITY RP73PF1E26K1BTDF High Power Precision Resistor Specifications:
- Resistance range: 10Ω to 1MΩ across sizes 0402 to 2512
- Tolerance: ±0.05%, ±0.1%, ±1.0%
- Temperature Coefficient: as low as 20.05 ppm/°C
- Rated Power: 0.1W (0402), 0.125W (0603, 0805), 0.33W (1206, 1210, 2010), 0.33W (1206, 1210, 2010), 0.25W (0805)
- Maximum Operating Voltage: 50V (0603), 75V (0805), 150V (1206), 200V (1210, 2512), 100V (0805), 200V (1206, 1210, 2010, 2512)
- Maximum Overload Voltage: 100V (0603), 150V (0805), 300V (1206, 1210, 2010, 2512)
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Stability: 0.5%
- Materials: Alumina substrate, NiCr electrodes, Sn overcoat
- Dimensions vary by size (e.g., 0402: 1.0 x 0.5mm, 0603: 1.55 x 0.80mm, 0805: 2.00 x 1.25mm, 1206: 3.05 x 1.55mm, 1210: 3.10 x 2.40mm, 2010: 4.90 x 2.40mm, 2512: 6.30 x 2.00mm)
- Packaging: Embossed tape for automated assembly, reels with 1000-5000 units depending on size
- Solder Profile: Reflow, wave, and soldering iron profiles compliant with MIL-STD-202, with specified temperature and cycle limits

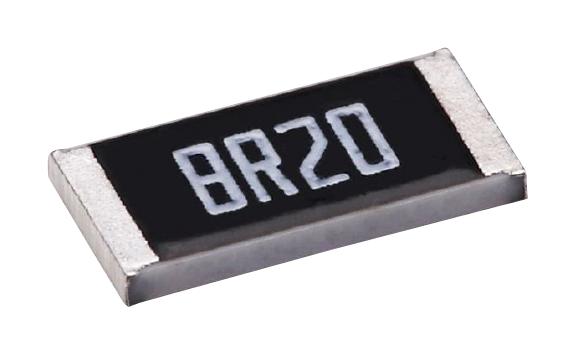

Buy the Buy TE Connectivity RP73 Series Resistor Part Number RP73PF1E26K1BTDF Online
Click now to purchase the TE Connectivity RP73PF1E26K1BTDF high power precision resistor online. Designed for demanding industrial, communication, medical, and instrumentation applications, this resistor offers high accuracy with 0.05% tolerance, low TCR of 20.05 ppm/°C, and power ratings up to 1W at voltages up to 200V. Manufactured with sputtered metal film on alumina substrate, it ensures stability, uniform dimensions, and excellent thermal performance for high-current and high-voltage circuits. Purchase today for reliable, high-quality circuit solutions.
Order your TE Connectivity RP73PF1E26K1BTDF high power resistor today and ensure your circuits deliver precise and reliable performance under demanding conditions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E26K1BTDF?
You can click on the BUY or RFQ button to purchase RP73PF1E26K1BTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E26K1BTDF?
You can download the RP73PF1E26K1BTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E26K1BTDF?
TE CONNECTIVITY
