TE-Connectivity RS80151 Liquid Level Sensor
The RS801-51 is a reliable liquid level sensor featuring a polypropylene body suited for sensing high or low liquid levels across various liquids like wastewater, coolant, drinking water, and cooling systems. It offers easy installation with internal and external fitting options, and a float mechanism that reverses normally open or closed contacts. The sensor is UL listed, has a Ruthenium contact form, and supports a maximum switching voltage of 100 VAC and current of 1.0 A. Designed for durability, it withstands house temperatures up to 80°C and pressures up to 4 bar, making it ideal for demanding industrial applications.
TE-Connectivity RS80151 Liquid Level Sensor Specifications:
- Material: Polypropylene with glass-filled float and housing
- Mounting: Side entry with internal & external fittings
- Contact Form: SPST (Form A)
- Contact Material: Ruthenium
- Maximum Switching Voltage: 100 VAC
- Maximum Switching Current: 1.0 A
- Maximum Power: 15 Watts
- Housing Temperature Range: 80°C
- Operating Temperature Range: 80°C
- Operating Pressure: 4 bar
- Cable Type: 2x 18AWG PVC insulated, 0.5m long
- Cable Colour: Black/Black
- Float Material: Glass filled polypropylene
- Sealing Components: Silicone
- Mounting Shock: 50g for 11ms
- Mounting Vibration: 35g up to 500Hz
- Maximum Mounting Thickness: Internal fit 10mm, External fit 4mm
- Drill Hole Size for Installation: 0.65 inch (16.5mm) internal, 0.9 inch (23mm) external
- Sealing Gasket and Friction Relief Washer included
- Fixing Nut: M16, torque up to 2.67 Nm

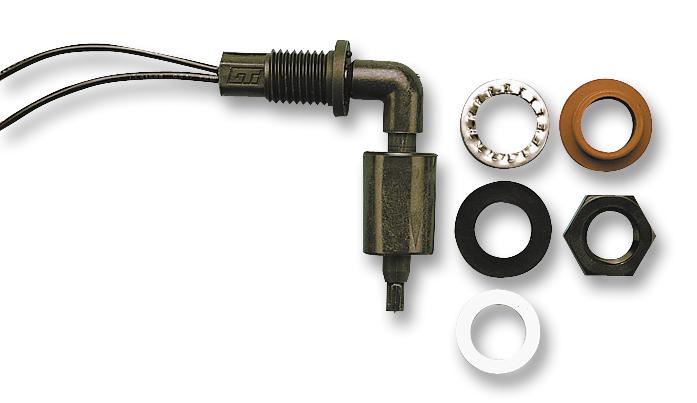

Buy the Gentech RS801-51 U+2013 Reliable Liquid Level Sensor for Industrial Applications
Experience accurate and durable liquid level detection with the Gentech RS801-51 sensor. Designed for easy installation and reliable operation across a variety of liquids including water, wastewater, and coolants, its polypropylene body and Ruthenium contacts ensure longevity. Suitable for industrial environments, it withstands high temperatures and pressures, making it ideal for water level monitoring, cooling systems, and waste water management. Order now to ensure precise level control in your applications with this UL-listed liquid sensor.
Get Gentech RS801-51 today—built for precision and long-lasting durability in liquid level detection.
Frequently Asked Questions
Where can I buy TE-Connectivity RS80151?
You can click on the BUY or RFQ button to purchase RS80151 from an authorized TE-Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RS80151?
You can download the RS80151 datasheet or visit the TE-Connectivity website for support.
Who is the manufacturer of RS80151?
TE-Connectivity
