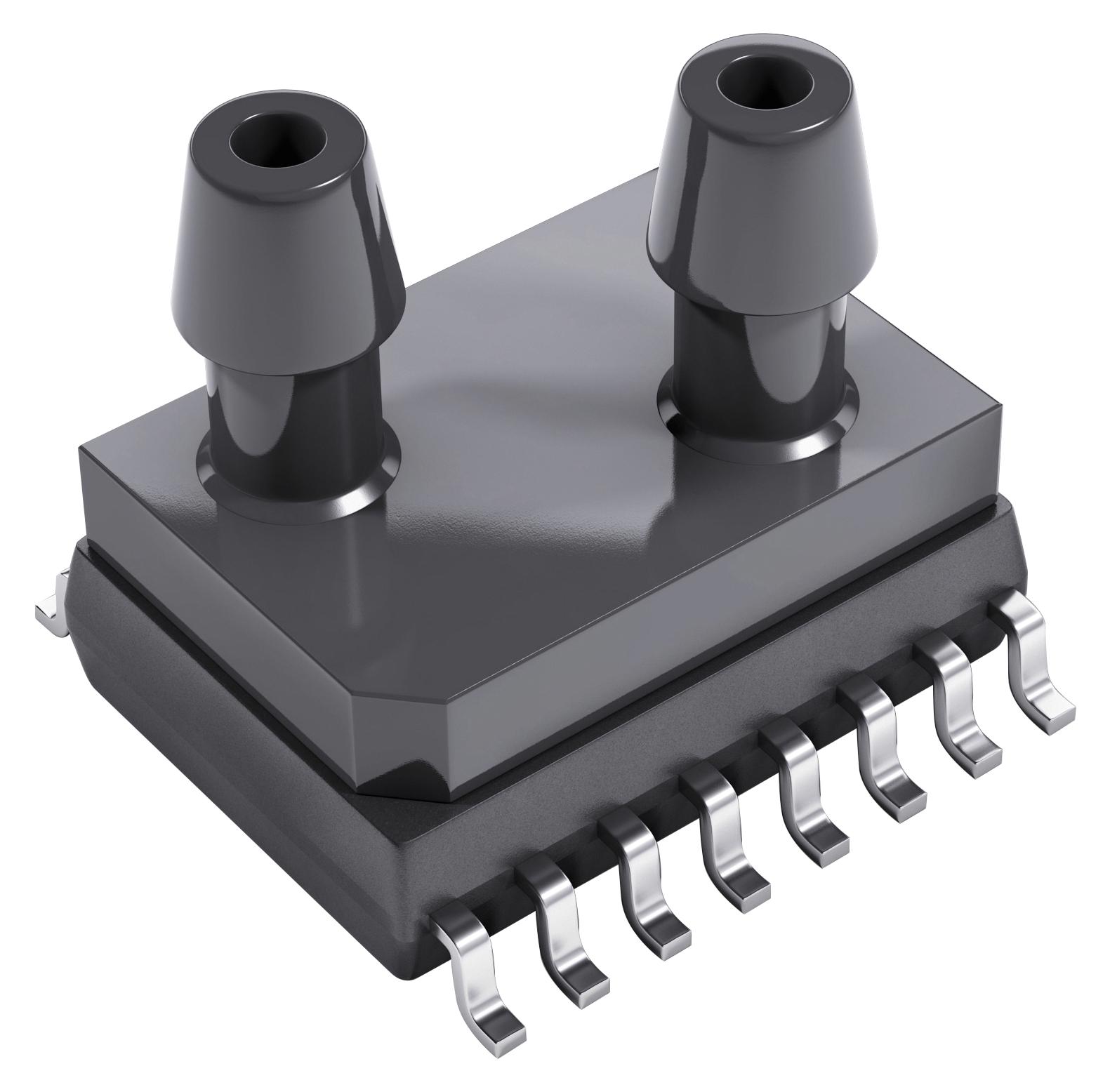

TE CONNECTIVITY SM9233BCES250000 Ultra-Low Pressure Sensor
The SM9233 series are ultra-low pressure digital gage sensors designed for precise measurement of small pressure differentials, suitable for applications like HVAC, respiratory devices, and gas flow instrumentation. These high-accuracy sensors feature a MEMS pressure transducer with CMOS processing, offering temperature compensation from -20°C to 85°C, and digital output with less than 1% error band after autozero. They are housed in a JEDEC SOIC-16 package, can operate from 3.0V to 5.5V, and provide quick response times with a bandwidth of 20Hz, making them ideal for sensitive pressure monitoring in industrial and medical settings.
TE CONNECTIVITY SM9233BCES250000 Ultra-Low Pressure Sensor Specifications:
- Pressure Range: 0 to +250 Pa (SM9233), 0 to +300 Pa (SM9235), 0 to +600 Pa (SM9236), -125 to +125 Pa (SM9333), -250 to +250 Pa (SM9336)
- Supply Voltage: 3.0 to 5.5 V
- Digital Output: 16-bit, signed counts from -32768 to +32767
- Total Error Band: <1%FS after calibration and autozero
- Temperature Range: -20°C to 85°C
- Bandwidth: 20 Hz
- Response Time: 18 ms
- Resolution: 16 Bits
- Power Consumption: typically 3.3-5 mA
- Package: JEDEC SOIC-16 dual vertical or horizontal porting
- Operating Environment: dry, clean air compatible materials, digital interface-ready
- Calibration: Factory calibrated with internal temperature compensation
Buy the Buy TE Connectivity Ultra-Low Pressure Sensor Part Number SM9233BCES250000 Online
Purchase the TE Connectivity SM9233BCES250000 ultra-low pressure digital sensor online today. Designed for highly sensitive pressure measurements in medical, HVAC, and industrial applications, it offers a digital 16-bit output, temperature compensation from -20°C to 85°C, and a bandwidth of 20Hz for rapid response. Its compact JEDEC SOIC-16 package simplifies installation and ensures durability. Enjoy fast shipping, excellent accuracy, and reliable performance by ordering now through our secure online store, ideal for precision pressure monitoring needs.
Buy TE Connectivity SM9233BCES250000 now and experience unmatched reliability and performance in ultra-low pressure measurement.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SM9233BCES250000?
You can click on the BUY or RFQ button to purchase SM9233BCES250000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SM9233BCES250000?
You can download the SM9233BCES250000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SM9233BCES250000?
TE CONNECTIVITY
