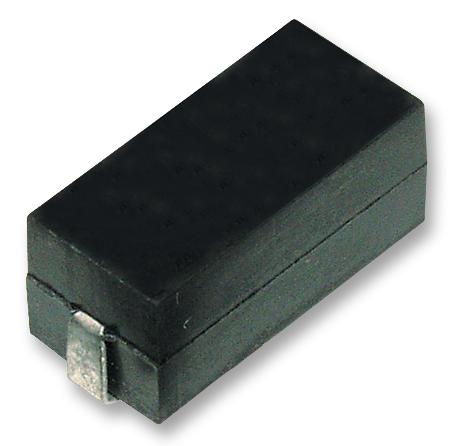

TE CONNECTIVITY SMV1W270KJT High Voltage SMD Resistor
The Metal Glaze high voltage SMD resistors are designed for high surge and pulse resilience, with excellent electrical stability and environmental resistance. These flameproof resistors meet UL94VO standards, resist sulfur, heat, and humidity, and are suitable for high-voltage power applications. They feature a molded package, adhere to stringent dielectric withstand standards, and are available in various resistance values from 100KΩ to 10MΩ, with power ratings of 1W, 2W, and 3W, making them reliable and durable for challenging industrial environments.
TE CONNECTIVITY SMV1W270KJT High Voltage SMD Resistor Specifications:
- Resistance Range: 100KΩ to 10MΩ
- Power Ratings: 1W, 2W, 3W
- Dielectric Withstanding Voltage: AC 1000V for 1min
- Resistance Tolerance: ±5% (J), ±1% (F)
- Temperature Coefficient: ±200ppm/°C
- Operating Temp. Range: -65°C to +275°C
- Environmental Resistance: Sulfur, humidity, heat
- Pulse Withstanding: IEC61000-4-5 1.2/50 us pulse, 10/700 us pulse
- Load Life: 1000 hours at 70°C
- Solderability: ≥95% coverage at 235°C for 2 sec
- Dimensions (mm): Lengths and widths vary per model including 8-16 mm length, 4-17 mm width
- Peak Surge Voltage: 1600V to 3500V depending on power rating
- Insulation Resistance: 10 MΩ at 500V DC
- Bending and mechanical strength compliant to standards
Buy the TE Connectivity SMV1W270KJ – Reliable High Voltage SMD Resistors for Industrial Applications
Purchasing the high voltage SMD resistors online offers reliable sourcing of UL94VO flameproof, sulfur-resistant power resistors suitable for demanding industrial environments. Designed for high surge and pulse resilience, these resistors meet IEC standards and are available in various resistance values and power ratings. Their environmental resistance, excellent dielectric withstand capacity, and precise manufacturing ensure long-lasting performance. Buy online now to secure dependable components that enhance your high-voltage power systems, ensuring safety, stability, and efficiency in your electrical projects.
Get TE Connectivity SMV1W270KJ today—built for precision and long-lasting durability in high-voltage environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV1W270KJT?
You can click on the BUY or RFQ button to purchase SMV1W270KJT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV1W270KJT?
You can download the SMV1W270KJT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV1W270KJT?
TE CONNECTIVITY
