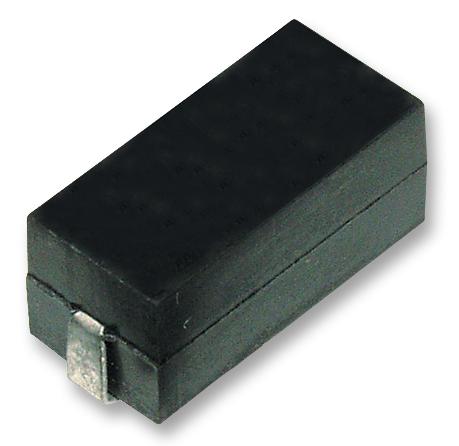

TE CONNECTIVITY SMV2W1M0JT High Voltage Power Resistor
The Metal Glaze high voltage SMD resistor series offers flameproof and sulfur-resistant features suitable for industrial environments. Constructed with molded UL94VO flameproof packaging, these resistors provide high surge and pulse withstand capabilities, with resistance tolerance within ±1–5%. They are designed for electrical stability over a temperature range of -65°C to +200°C, featuring dielectric withstand voltage of 1000V AC for 1 minute, and resistance ranges from 100KΩ to 10MΩ. Ideal for high-voltage power applications requiring robustness against heat, humidity, and electrical surges.
TE CONNECTIVITY SMV2W1M0JT High Voltage Power Resistor Specifications:
- Resistance Range: 100KΩ to 10MΩ
- Power Ratings: 1W, 2W, 3W
- Tolerance: ±1% (F), ±5% (J)
- Temperature Range: -65°C to +200°C
- Dielectric Withstanding Voltage: 1000V AC for 1 min
- Surge Withstanding: IEC61000-4-5 1.2/50 us pulse & 10/700 us pulse
- Pulse Load Capability: 14.1J according to IEC 60065
- Solderability: Minimum 95% coverage at 235°C for 2 seconds
- Resistance Tolerance: +5% (J), +1% (F)
- Load Life: 1000 hours at 70°C with 90min ON / 30min OFF
- Moisture-proof Load Life: 1000 hours at 40°C and 95% RH
- Resistance to Solder Heat: No damage at 270°C for 10 seconds
Buy the TE Connectivity SMV2W1M0J – Reliable High Voltage Power Resistor for Industrial Applications
Order the TE Connectivity high voltage power resistor online today to ensure superior electrical stability, flameproof construction, and excellent resistance to heat, humidity, and electrical surges. Designed for demanding industrial applications, this resistor series offers reliable performance with high surge and pulse withstand capabilities. Easily accessible through online purchase, enjoy fast delivery and technical support, ensuring your power systems function efficiently and safely with proven durability and resistance against environmental stresses. Ideal for manufacturing, automation, and electrical engineering projects requiring high voltage resilience.
Get TE Connectivity SMV2W1M0J today—built for high voltage stability, surge resistance, and long-lasting durability in industrial environments.
