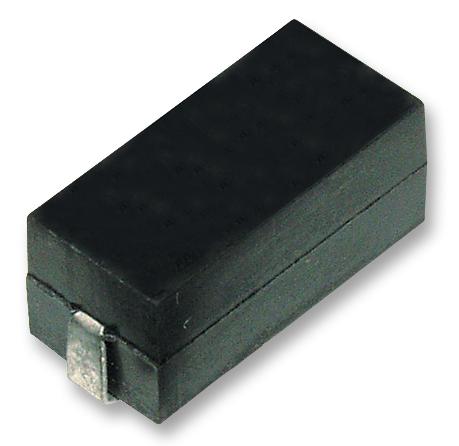

TE CONNECTIVITY SMV3W470KJT High Voltage SMD Resistor
These high voltage metal-glaze SMD resistors are designed for demanding electronic applications requiring stability, high surge, and pulse withstand. UL94VO flameproof and resistant to sulfur, heat, and humidity, they are suitable for power circuits needing reliable resistance up to 10M ohms. With excellent electrical stability, dielectric strength of 1000V AC, and short-time overload capacity, these resistors meet industry standards for high-performance, environmental resilience, and safety. They are ideal for industrial power supply, medical equipment, and high voltage systems requiring compact, durable resistor solutions.
TE CONNECTIVITY SMV3W470KJT High Voltage SMD Resistor Specifications:
- Resistance range: 100K to 10M ohms
- Rated power: 1W, 2W, 3W
- Maximum working voltage: 1600V to 5000V
- Dielectric withstand voltage: AC 1000V for 1 min
- Resistance tolerance: ±1% or ±5%
- Resistance temp. coefficient: ±200ppm/°C
- Operating temperature: -65°C to +275°C
- Surge capability: 1.2/50 us pulse & 10/700 us pulse per IEC61000-4-5
- Environmental resistance: moisture-proof, load life, and temperature cycling
- Physical dimensions vary by power rating, e.g., 4.0 mm to 7.3 mm in diameter, with lengths up to 17 mm
- Solderability: ≥95% coverage at 235°C for 2 seconds
- Compliance: UL94VO flameproof, tested for sulfur resistance
Buy the Te Connectivity Series SMV High Voltage Resistors: SMV3W470KJT
Purchase the Te Connectivity high voltage SMD resistor SMV3W470KJT online today to enhance your power electronics with robust resistance, flameproof and sulfur resistant features. Designed for high surge and pulse withstand, these resistors provide excellent electrical stability and environmental resilience. Perfect for industrial, medical, and high voltage applications requiring compact size and reliable operation. With fast delivery and trusted quality, buy now and ensure your projects meet industry standards and safety requirements for long-term performance.
Order your Te Connectivity Series SMV high voltage resistor SMV3W470KJT today and ensure your power circuits are durable, safe, and efficient with reliable resistance solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV3W470KJT?
You can click on the BUY or RFQ button to purchase SMV3W470KJT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV3W470KJT?
You can download the SMV3W470KJT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV3W470KJT?
TE CONNECTIVITY
