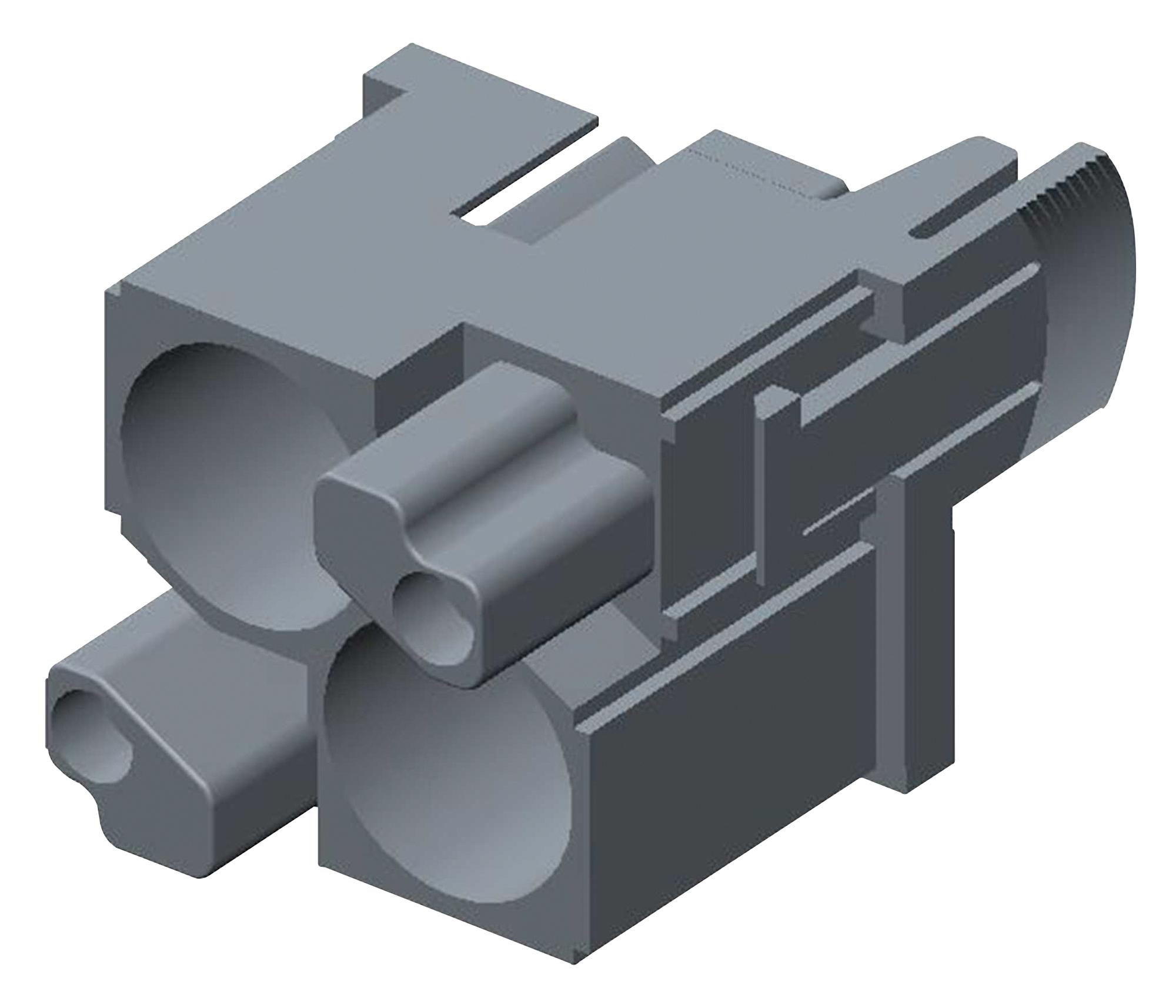

TE CONNECTIVITY T2111027201007 Railway Connector Insert
The HMN series modular insert offers high flexibility for configuring railway connector systems. These heavy-duty connector inserts comply with the EN45545 European standard for flame retardancy in railway rolling stock and meet R22 and R23 requirements at HL3 level. They ensure reliable electrical connections, are easy to assemble, and enable customized interfaces, helping to save time and reduce installation costs through their modular design. The operating temperature range is from -40°C to 125°C. Crimp contacts are sold separately.
TE CONNECTIVITY T2111027201007 Railway Connector Insert Specifications:
- Material: Flame-retardant according to EN45545 R22 and R23, with Oxygen index per EN ISO 4589-2, Smoke density per EN ISO 5659-2, Toxicity per NF X 70-100-1/-2
- Temperature Range: -40°C to 125°C
- Operating Temperature: -40°C to 125°C
- Certifications: EN45545, EN61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
- Electrical Performance: Various rated currents from 5A to 200A, voltage levels up to 500V depending on series
- Connector Features: Modular system, configurable with 1 to 216 pins, quick assembly
- Physical Characteristics: Modular insert for railway applications, flame-retardant material, designed for reliable electrical contact
Buy the Buy TE Connectivity HDC Insert Part Number T2111027201007 Online
Secure your railway electrical systems with TE Connectivity HDC inserts. These modular inserts meet EN45545 HL3 standards, offer flexible configurations from 1 to 216 pins, and operate reliably from -40°C to 125°C. Easy to assemble, they save installation time and costs while ensuring fire safety, smoke, and toxicity compliance. Designed for traction converters, power distribution, and inter-car jumpers, these connectors are essential for modern railway applications—order online today for quick delivery and dependable performance.
Buy TE Connectivity T2111027201007 modular insert now and experience reliable electrical connections with high flexibility for railway systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T2111027201007?
You can click on the BUY or RFQ button to purchase T2111027201007 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T2111027201007?
You can download the T2111027201007 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T2111027201007?
TE CONNECTIVITY
