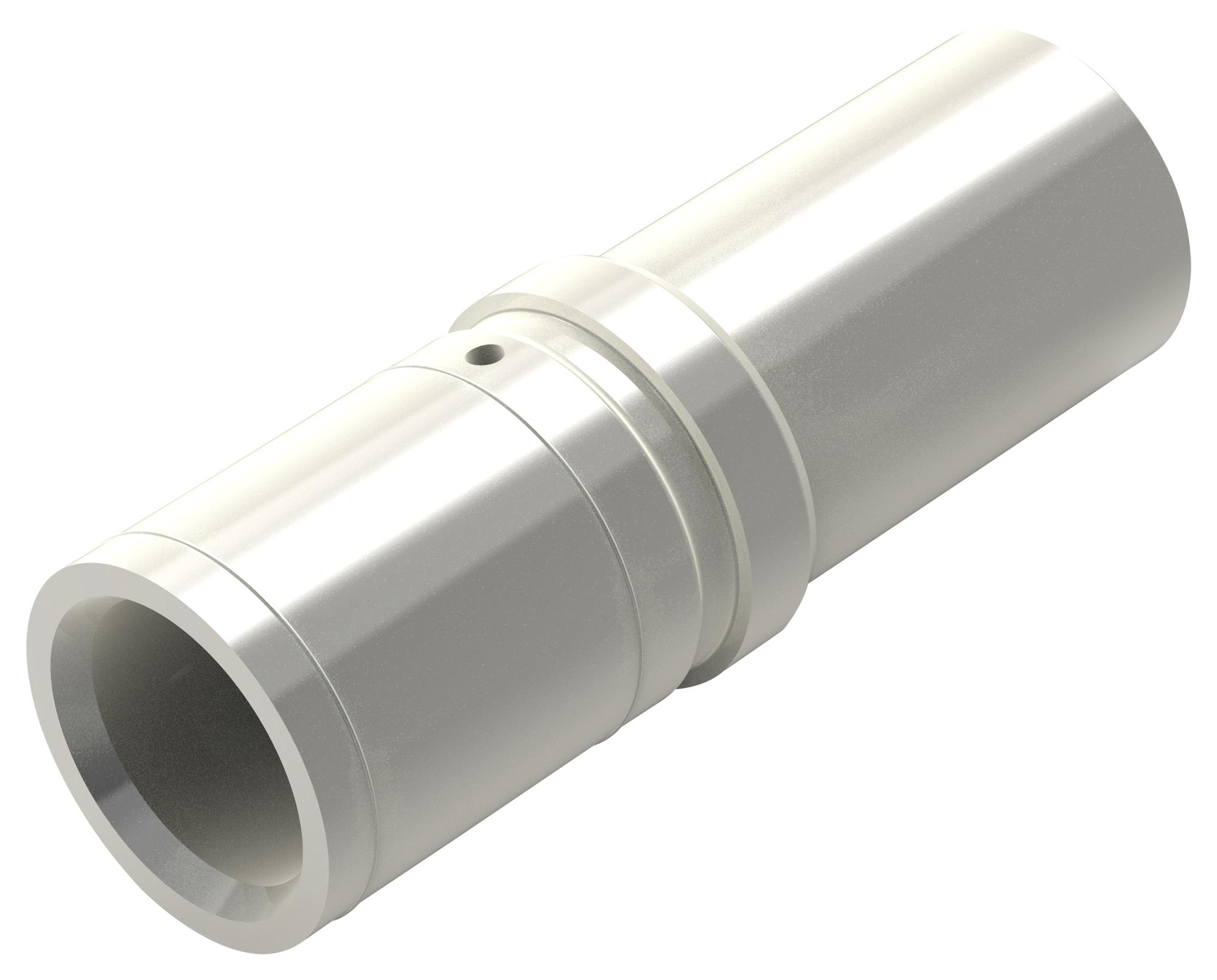

TE CONNECTIVITY T2193502120000 Heavy Duty Power Connector
Heavy-duty connectors from TE Connectivity ensure high performance and durability in demanding environments. Designed for data, signal, and power connections, they feature modular interfaces for maximum efficiency. The HCM high-current series supports up to 650A with IP68-rated aluminum housings providing robust environmental protection, including salt spray resistance for 500 hours. These contact connectors are suitable for industrial, energy, rail, and power applications, offering multiple contact positions from 1 to 4, with crimping contacts, excellent shock resistance, and insulating performance. Their mechanical strength and corrosion resistance make them reliable in outdoor and harsh conditions.
TE CONNECTIVITY T2193502120000 Heavy Duty Power Connector Specifications:
- Current Capacity: Up to 650A
- Rated Voltage: 4000V for HCM650, 2000V for HCM250/350
- Contact Positions: 1 to 4
- Housing Material: Aluminum alloy with powder coating
- Protection Degree: IP68 for environmental sealing
- Salt Spray Resistance: Up to 500 hours
- Operating Temperature: -40°C to +125°C
- Locking Mechanism: Stainless steel screw locking
- Insert Solution: Crimping type, wire diameter options 35-70mm for HCM250, 35-120mm for HCM350, 35-240mm for HCM650
- Shock Resistance: >500 mating cycles
- Insulation Performance: High withstand voltage, up to 12kV for HCM650
- Standards: EN 61984, IEC 60068, IEC 60529, IEC 60664-1, EN 61373
Buy the Buy TE Connectivity Heavy Duty Connectors Part Number T2193502120000 Online
Experience the reliable quality of TE Connectivity’s heavy duty connectors, engineered for harsh environments. Designed to handle high currents up to 650A with IP68 ratings, these connectors are ideal for energy, rail, and industrial power applications. Featuring robust aluminum housings, salt spray resistance for up to 500 hours, and excellent shock and insulation performance, they ensure long-lasting, secure connections outdoors. Purchase online today to benefit from proven durability, quick installation, and trusted safety standards for demanding industrial environments.
Get TE Connectivity HCM650 high-current connector today—built for precision, durability, and reliable outdoor industrial power connections.
