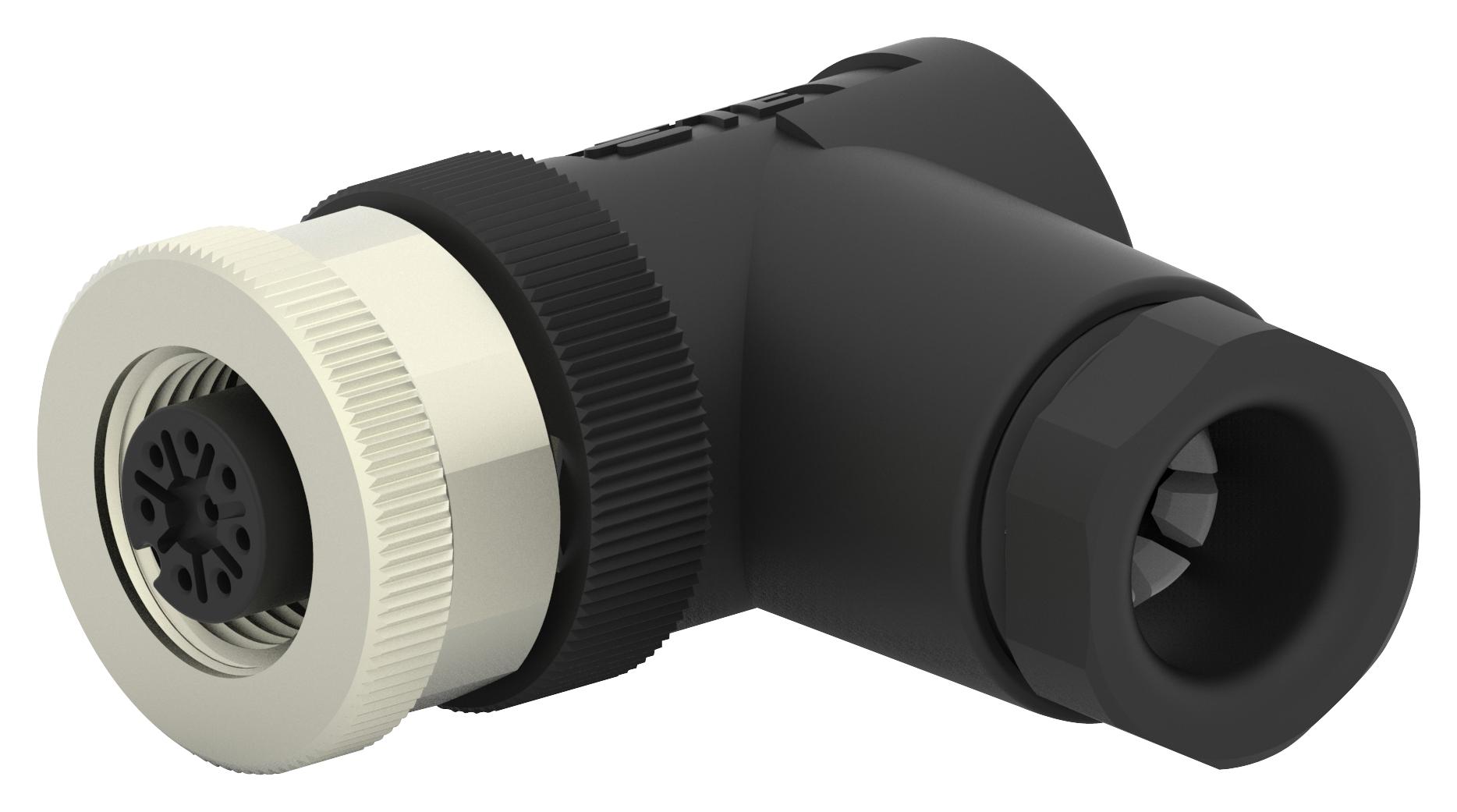

TE CONNECTIVITY T4112001081000 Industrial Circular Connector
The M12 Connector is a standard circular, wire-to-wire connector with 8 positions, designed for signal transmission. It features a sealable design with IP67 environmental protection, making it suitable for harsh conditions. Constructed from PBT with silicone sealing, it supports a maximum current of 2A and operates within a temperature range of -40°C to +85°C. The connector includes a threaded coupling with a keyed design for secure, reliable connections, ideal for industrial automation and signal wiring applications. Supports field installation with robust durability for demanding environments.
TE CONNECTIVITY T4112001081000 Industrial Circular Connector Specifications:
- Connector Type: Circular, Wire-to-Wire
- Number of Positions: 8
- Sealable: Yes
- Environmental Protection: IP67
- Body Material: PBT
- Sealing Material: Silicone
- Operating Voltage: 30 VAC
- Current Rating: 2A
- Temperature Range: -40°C to +85°C
- Shell Size: 20 mm
- Connection Type: Threaded Coupling with Keyed
- Contacts Material: Gold-plated
- Housing Features: Elastomer Sealed
- Insulation Material: Polyamide 66 GF25
- Wire Size: 0.82 – 2 mm²
- Durability: 100 Cycles
- Standards Compliance: UL HB Flammability, RoHS, Reach, China RoHS
Buy the TE Series M12 Signal Connector: T4112001081
Enhance your industrial wiring setup with this durable, sealed M12 connector designed for signal transmission. Featuring 8 positions and a maximum current of 2A, it offers IP67 protection for demanding environments. Constructed from high-quality PBT with silicone sealing, it supports easy field installation, ensuring secure and reliable connections. Ideal for automation systems and signal wiring, this connector guarantees longevity and dependable performance. Shop online now to secure this essential component for your industrial projects.
Order your TE Series M12 Signal Connector today and ensure reliable, sealed connections for your industrial wiring needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4112001081000?
You can click on the BUY or RFQ button to purchase T4112001081000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4112001081000?
You can download the T4112001081000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4112001081000?
TE CONNECTIVITY
